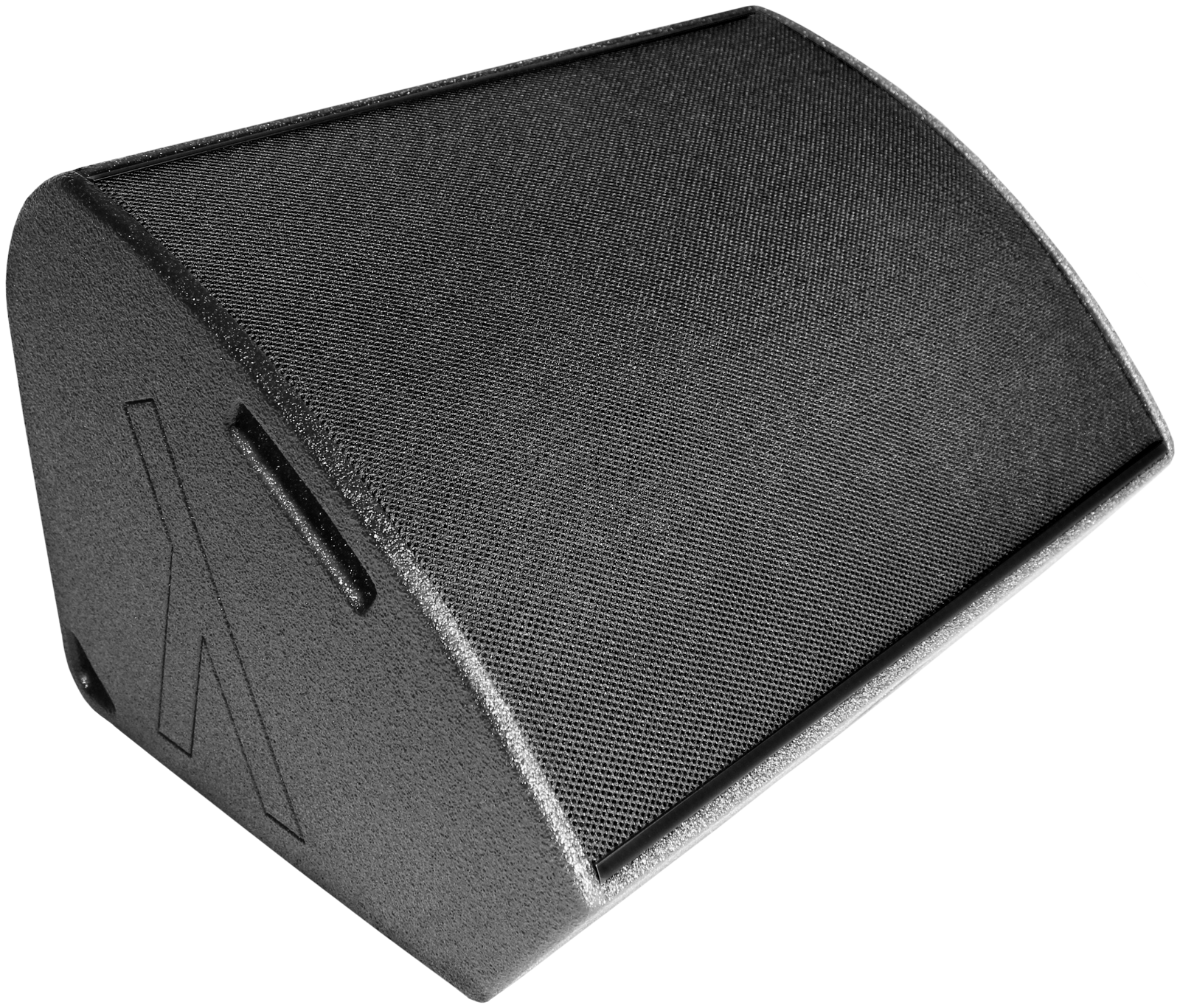

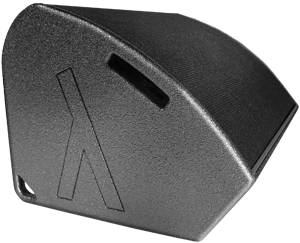

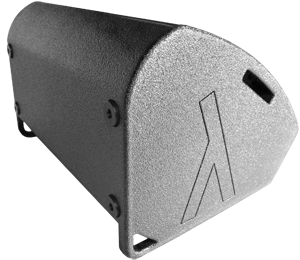

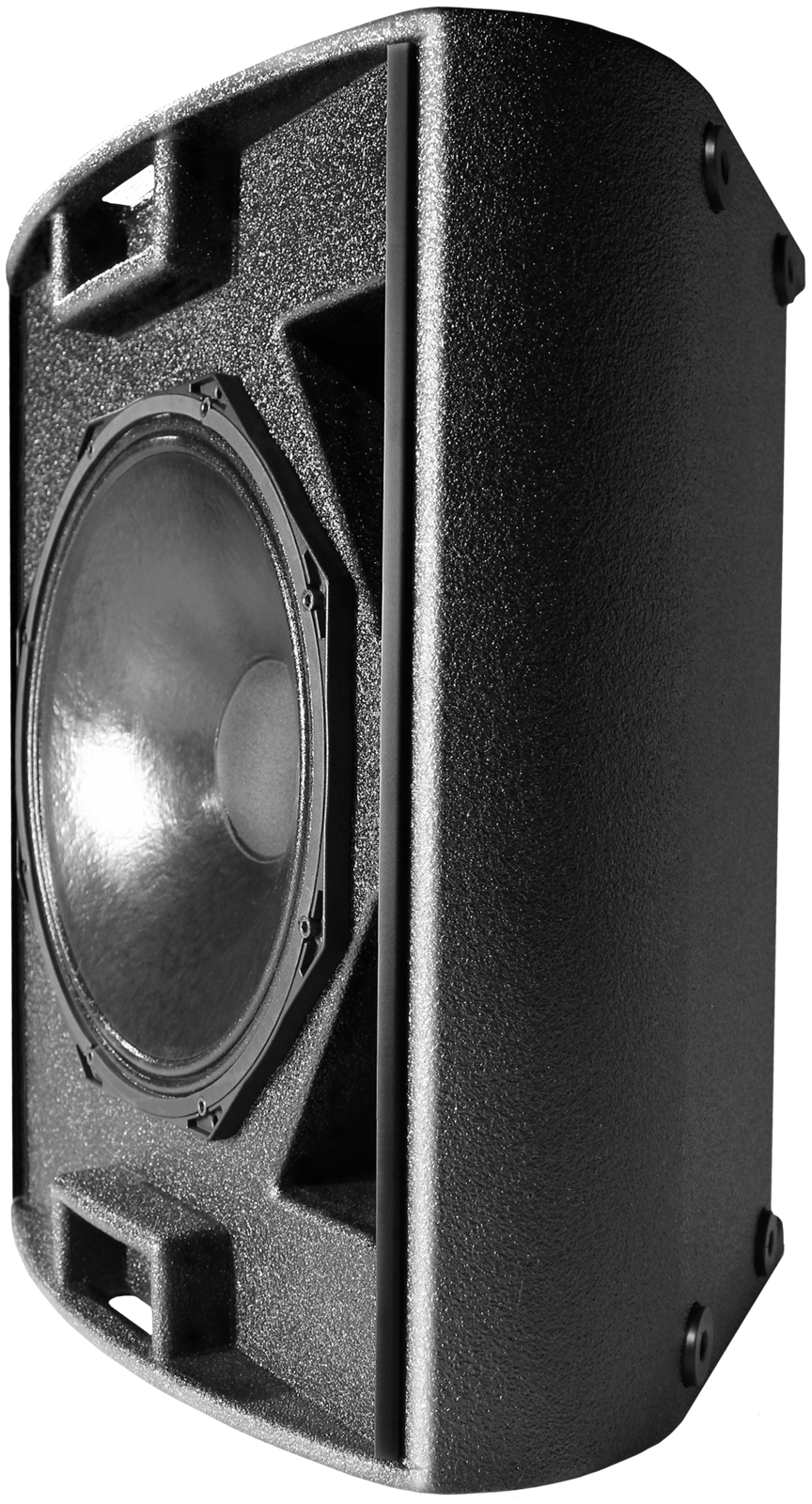

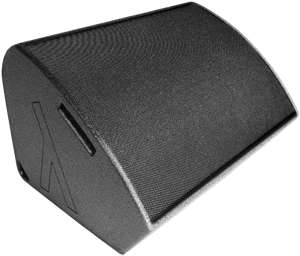

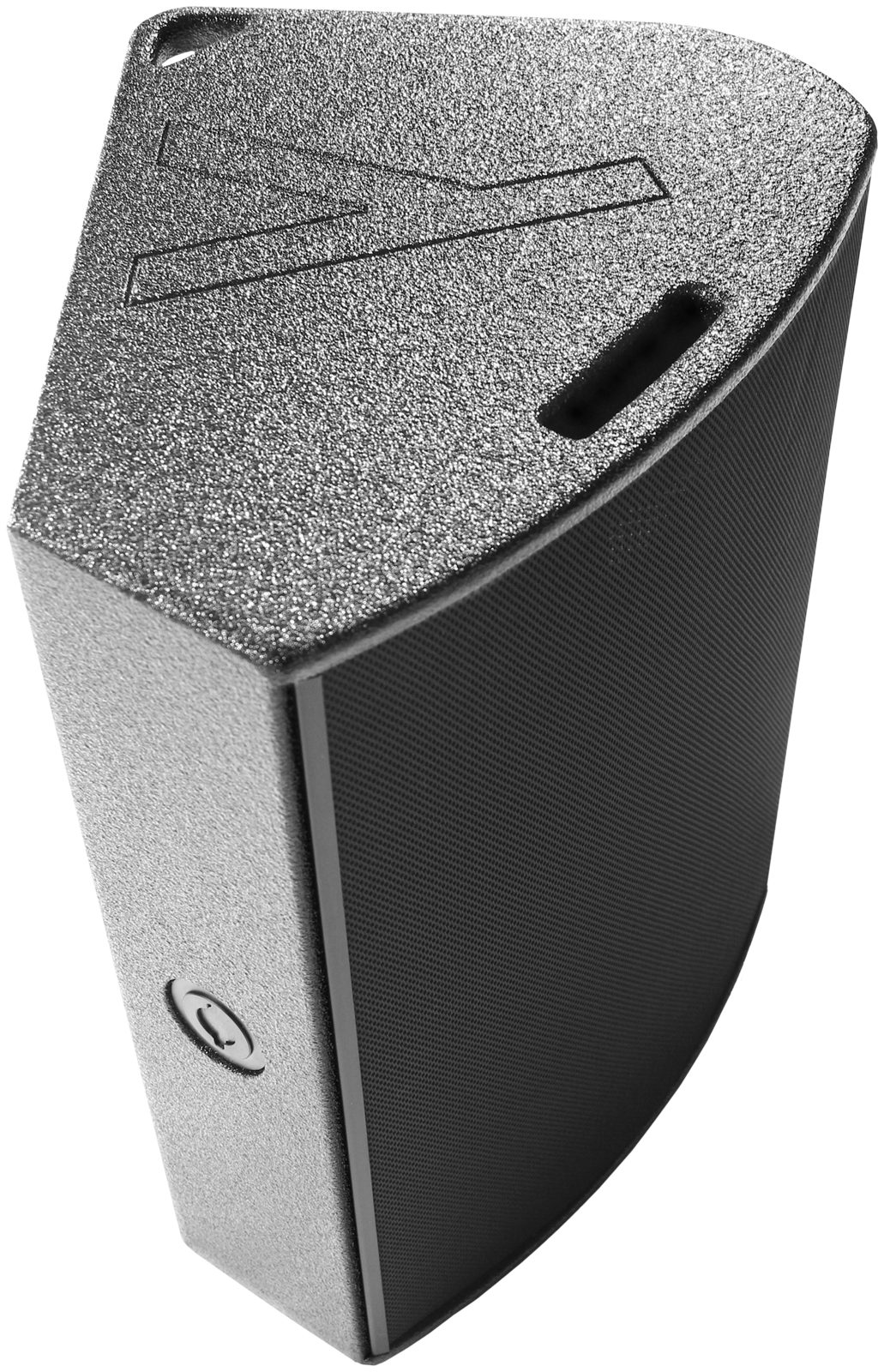

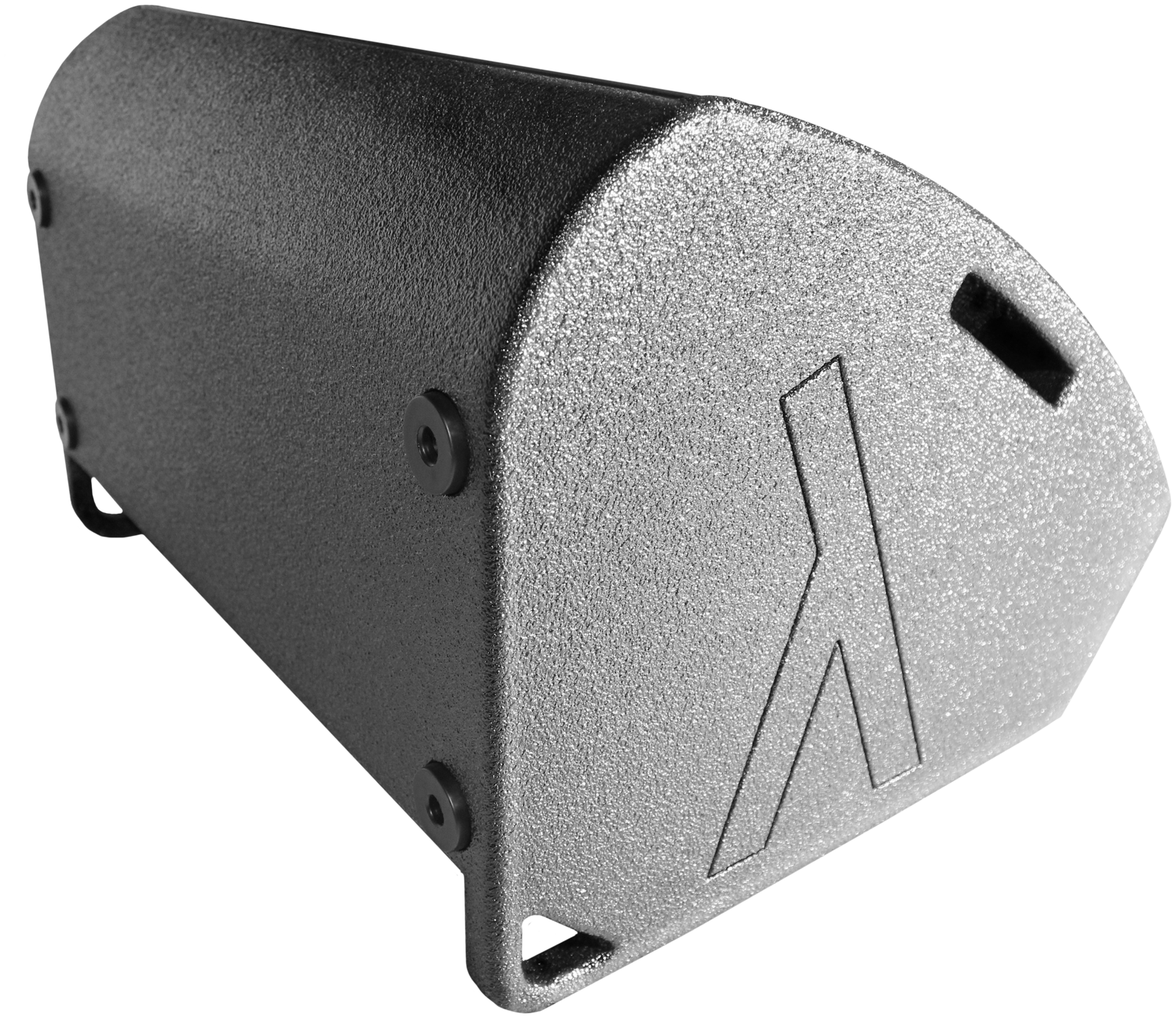

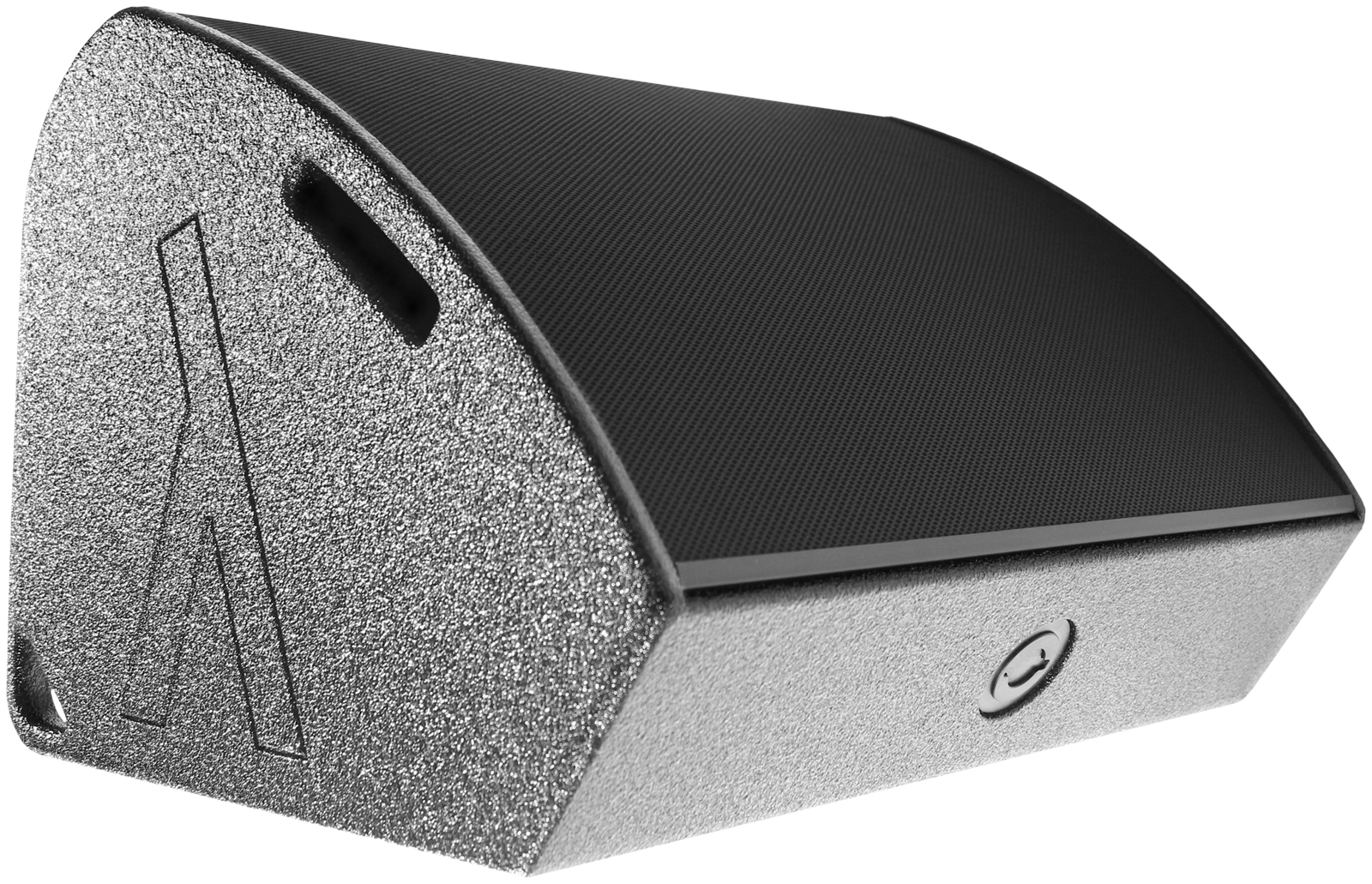

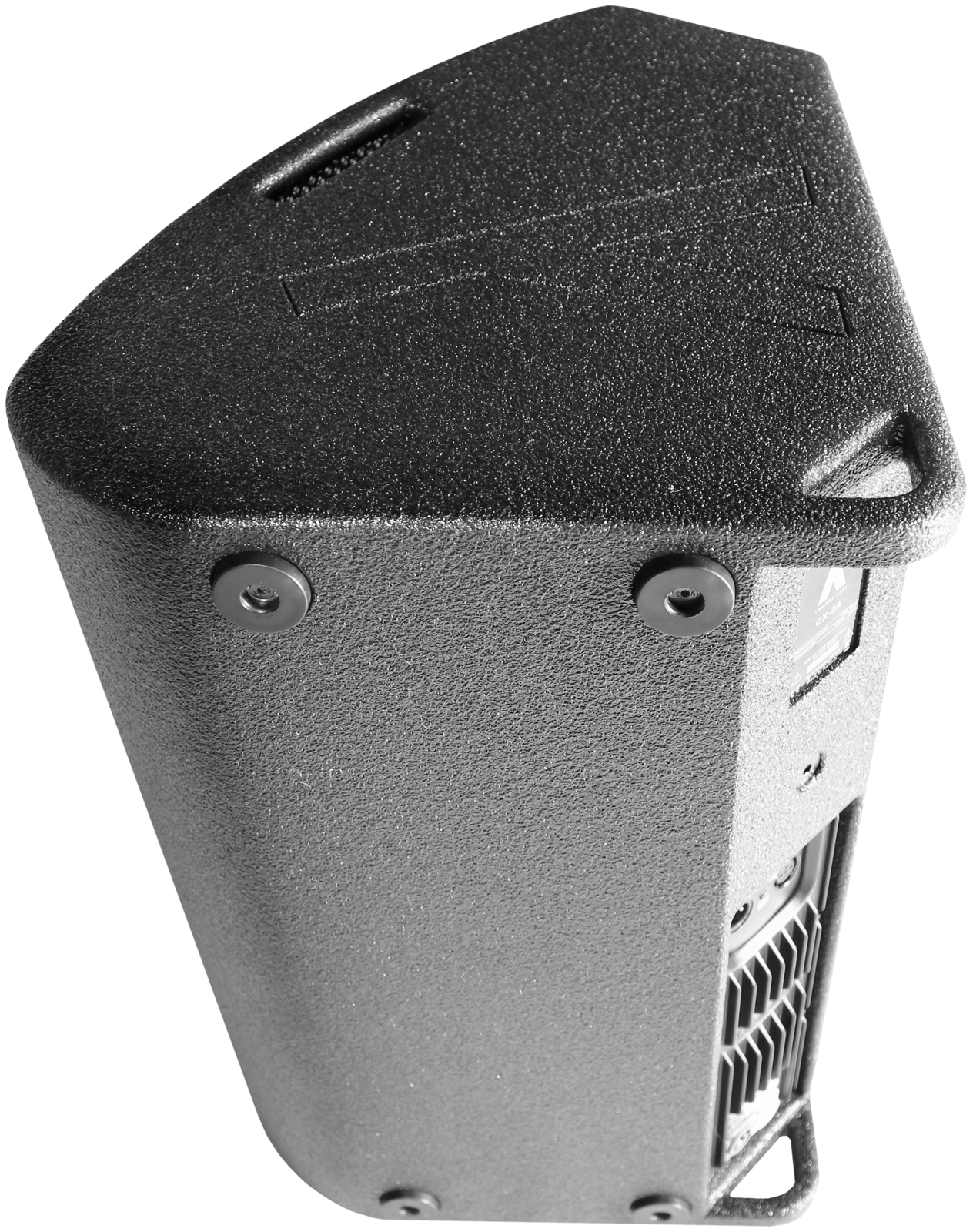

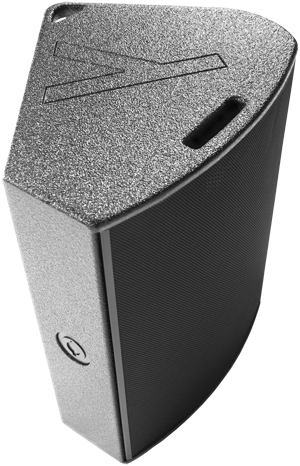

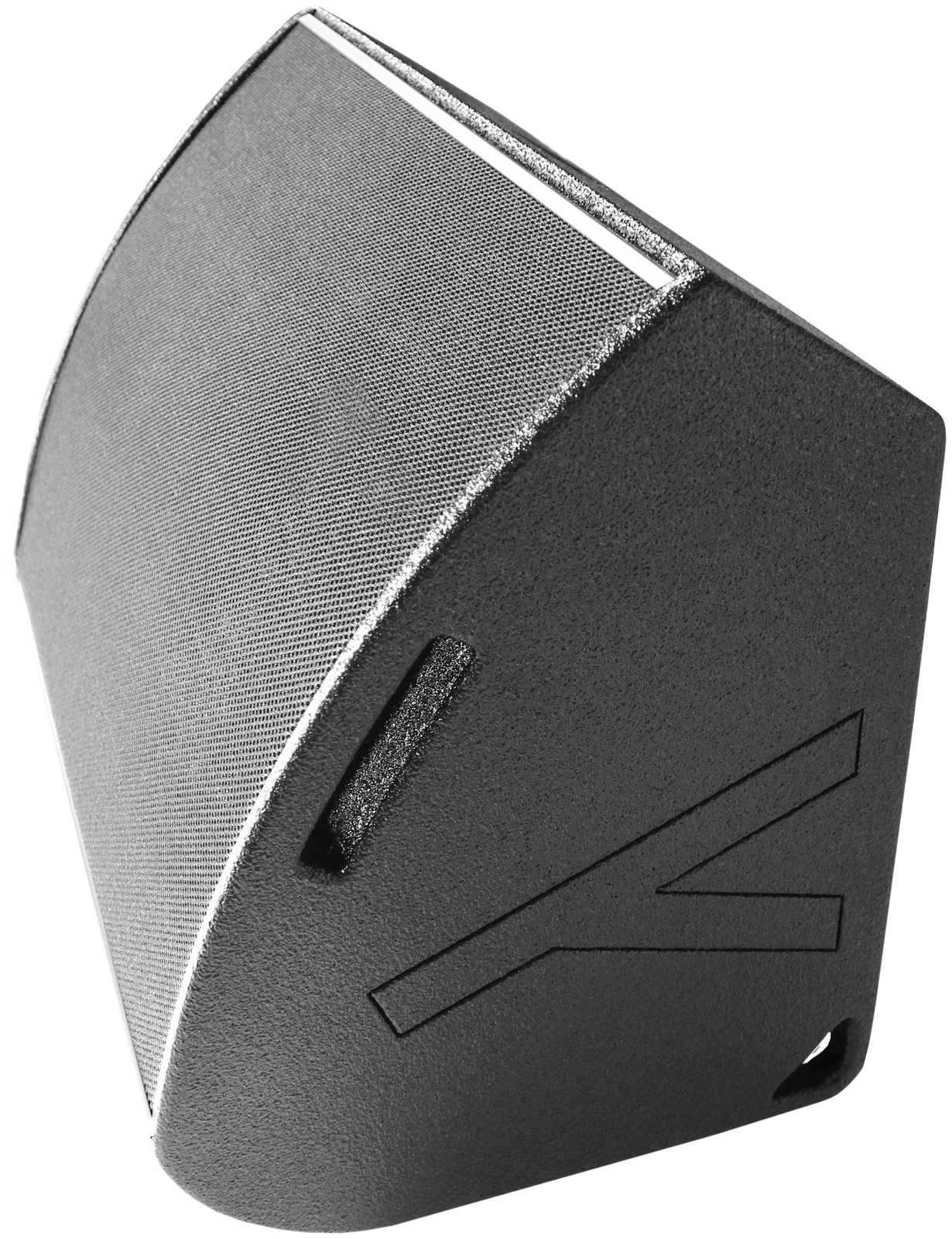

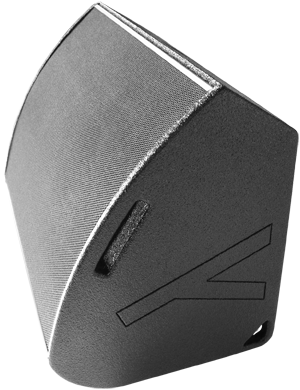

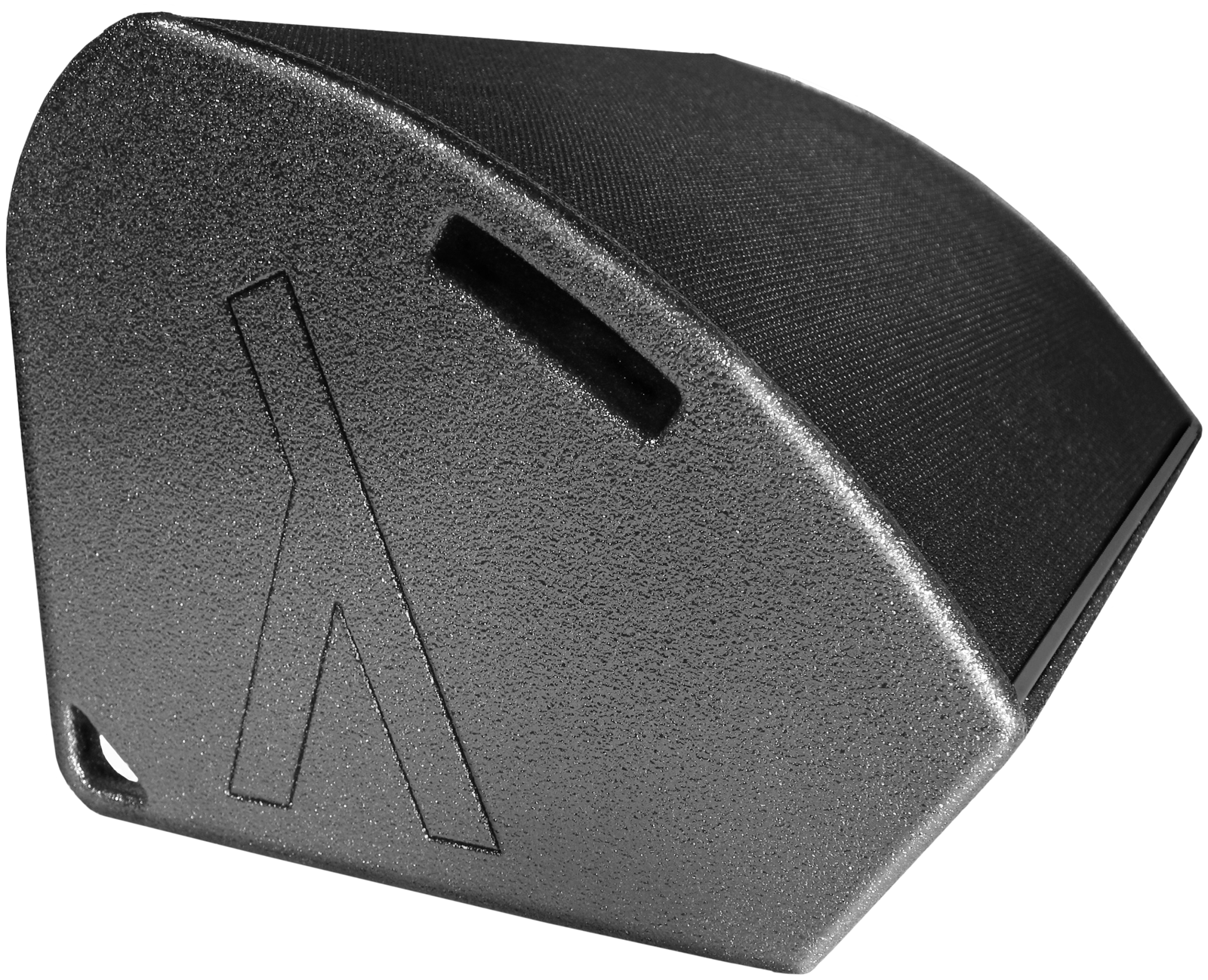

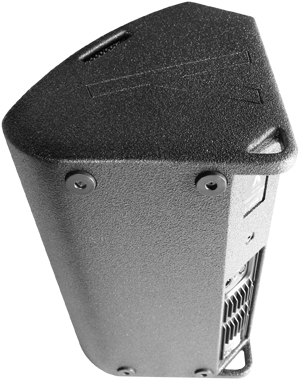

Lamda Labs’ Axisymmetrical High End Mirror – My beloved CX-3A

You may have already indulged in this fancy. Picture yourself, a firm adherent to the Many-Worlds Interpretation, on a journey to your most congruent parallel universe and a visit to a certain someone you know very well: Yourself. Whether or not the both of you already know of this visit or how you will meet in the end, are questions you may keep musing on for a while. For a plunge in at the deep end you would probably have the personal encounter accompanied by spontaneous handshaking, which, however, might turn out to be slightly uncanny. Why not get to know each other from a distance? Like for example, and this is where the matter gets complicated, by visiting your own concert. What would your vocals, or your guitar-solo really sound like? Say, over a certain distance? Full-throated? Or in a whisper?

Although you may have gotten your hopes up by now: we regret to say that unfortunately we cannot send you into your parallel universe – yet. What we can do however, is to provide you with an absolutely first grade acoustic reflection of your own self in shape of an outstanding High End Monitor. But be warned, even Narcissus was soon captivated… Come to think of it, a sensation of butterflies in your stomach or of a second spring with the CX-3A, now at your feet, now eye to eye, would make for a sophisticated and at once harmonious match. For among this monitor’s features you will find, not only a perfectly authentic and finely faceted vis-á-vis with unbound power and dynamics, but also a decidedly attractive trailblazer reflecting the state of of the art in Audio Engineering: so, should you happen to get weak in the knees, the mere 23 kg of this compact point source enclosure may still be easily carried across the stage’s threshold.

The curvy yet unobtrusive forms clad in an acoustically diaphanous attire accentuate the grand gig, and if push comes to shove the High Density coating proves an especially thick skin, to just briefly sketch the surface.

With the CX-A3, however beauty is not only skin deep. A look underneath reveals exceptional properties, such as two optional monitor angles of 35° and 58°, uniform rigging hardware to guarantee uncompromising main PA mode, and a highly even axialsymetric dispersion of 75°x75°: standard employment of custom-made Dual Range Converters, consistent use of FIR filters and bi-amp mode are characteristics the CX-3A shares with all active boxes coming from our house. It is the heavy duty 15" long excursion driver with a linear xmax of +/- 8mm and above all the compression driver with its Beryllium diaphragm and 4 inch voice coil, engaging the low frequency unit at as low as 800Hz for excellent coverage, that ultimately carve out this High End monitor’s unique and astounding tonal features.

Beryllium holds the highest stiffness to weight ratio of all diaphragm materials, which manifests itself in an unequalled impulse response across an extremely wide frequency range. It does not allow for any notable deformation of the dome, even in its threshold range.

The result is a very smooth, crystal clear and exceptionally three-dimensional sound character to within the highest end regions, that never fails to charm our listeners’ lips into a smile of surprise, while countless neural transmitters engulf their brains with bliss hormones.

Hopefully we won’t be held liable for pandering one of these days, what with all the emotions surging...

CX-3A downloads

CX-3A technical data

System

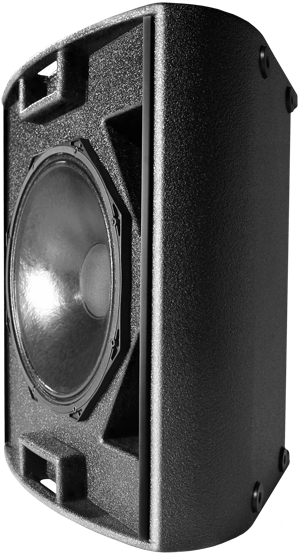

High power 2-way coaxial monitor
Configuration
True point source
1 x 15" high excursion driver with 3" VC
1 x HF-compression driver with 4" VC beryllium diaphragm
Electronics
800W + 200W RMS amping power
Signal Processor
24bit ADC/DAC, 48kHz sampling rate
Frequency Respose
60–20000Hz (+/- 3 dB)
Coverage Angle
75° horizontal x 75° vertical
Monitor Angle
35° / 58°
Crossover Frequency
800Hz
Sensitivity
99dB / 1W / 1m
Connection
XLR in / out, Powercon in / out
Enclosure
Rigid braced construction of special 12mm lightweight-wood
Finish
High density polyurethane-coating
Black
Front Cover
Weather-resistant front fabric on coated 2mm perforated steel



Height
24.7" / 627mm
Width
20.1" / 511mm
Depth
16.5" / 420mm
Weight
23.0kg

CX-3A accessories

EPS – Express Pin System – Mobile (M) Version

Express Pin enables quick and safe Plug & Play connection for all rigging options at the EPS point of the respective loudspeaker.

The EPS Mobile Version differs from the Installation Version in aspects of safety, tool free usage, size and weight. Exchange among the EPS versions at the rigging spots is possible at all times.

Delivery of the EPS Mobile Version includes the following pre-set rigging options:

Halfbracket – Mobile (M) Version for CX Series / TX Series
T-Bracket – Mobile (M) Version

Material: Stainless steel
Colour: Black

EPS – Express Pin System – Installation (I) Version

Express Pin enables quick and safe Plug & Play connection for all rigging options at the EPS point of the respective loudspeaker.

The EPS Installation version differs from the Mobile version in aspects of safety such as obligatory tool usage, size and weight. Changing among the EPS versions at the rigging spots is possible at all times.

Delivery of the EPS Installation version includes the following preset rigging options:


Halfbracket – Installation (I) Version CX Series / TX Series
T-Bracket – Installation (I) Version
I-Bracket ‘S’
I-Bracket ‘L’

Material: Stainless steel
Colour: Black

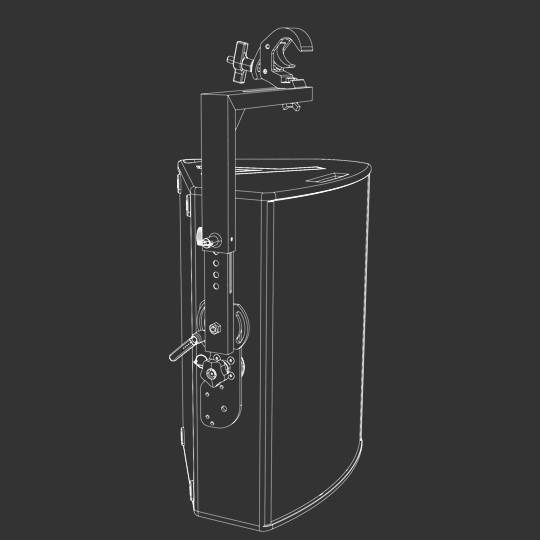

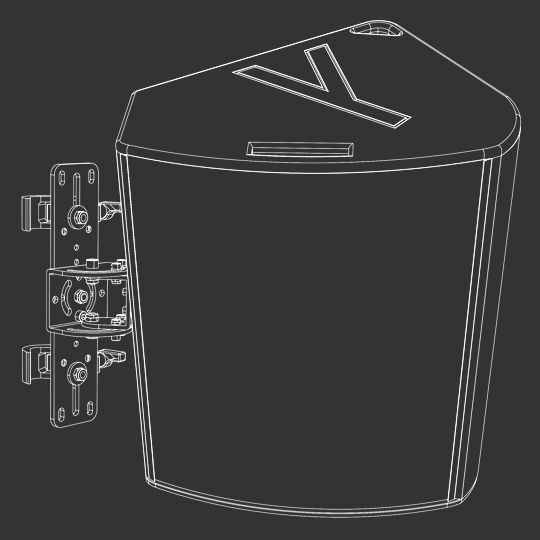

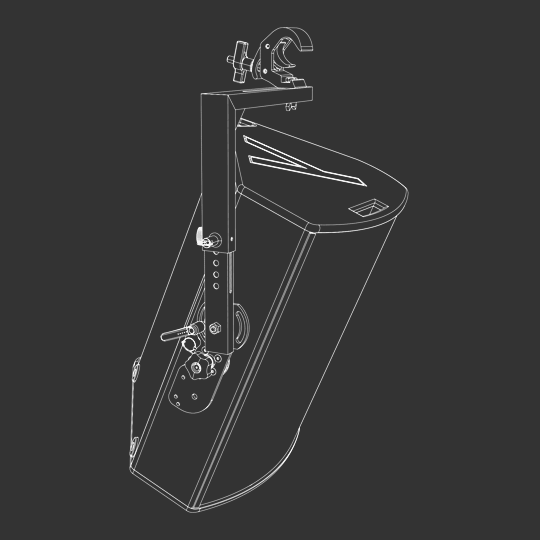

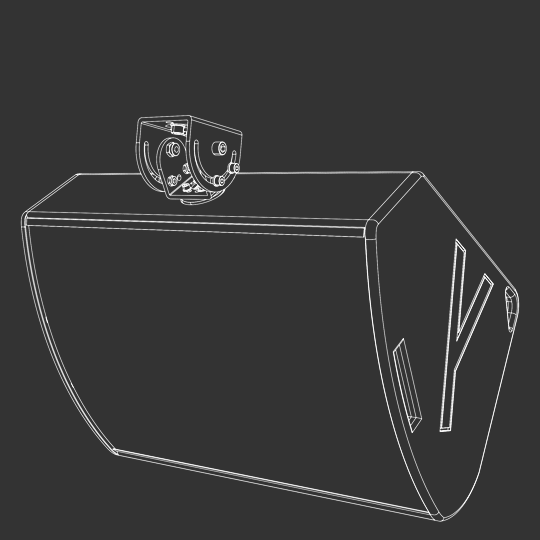

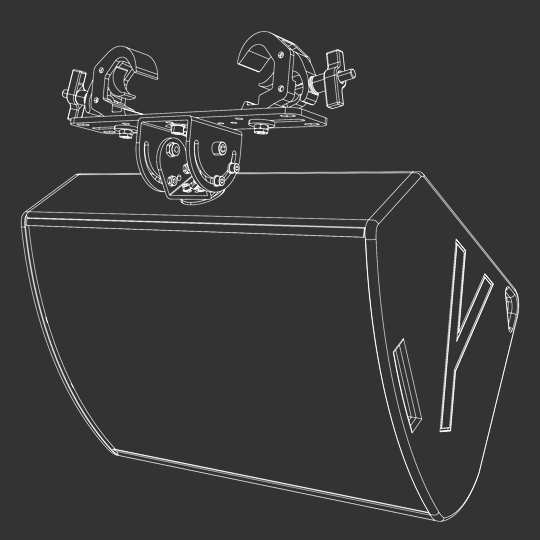

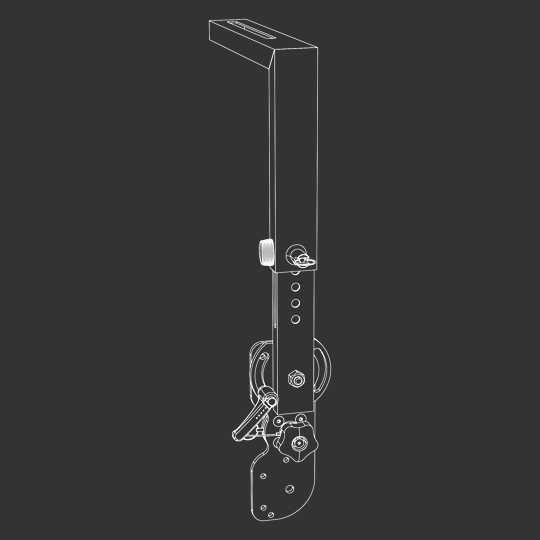

CX-Halfbracket – Mobile (M) Version for CX Series

The halfbracket allows for easy rotation and tilting of a CX - speaker’s standard suspension directly onto the truss or a stand.

In combination with the speaker’s Express Pin System it can be mounted quickly and safely. The telescopic halfbracket can be adjusted to fit all speakers in the CX series. The halfbracket allows overhead mounting as well.

The CX-halfbracket (M) for the CX series can be combined with the following rigging options:

M12 Quick Clamp 38/51
Stand Adaptor
Ceiling/Truss adaptor for positioning in the truss centre

Measurements: 51–60 x 33 x 5 cm
Weight: 2.45 kg
Material: Steel with high quality rustproof coating
Colour: Black

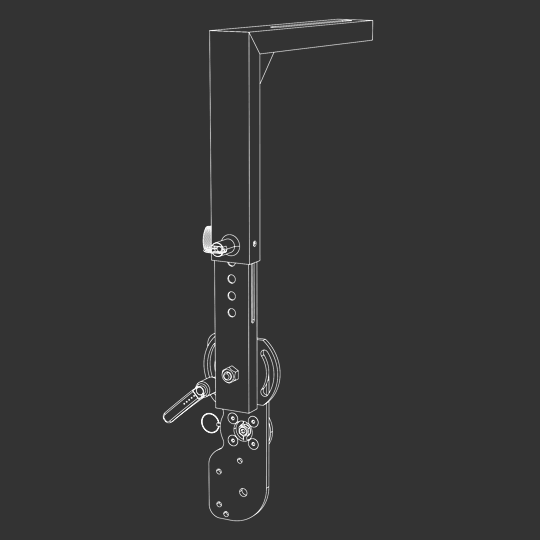

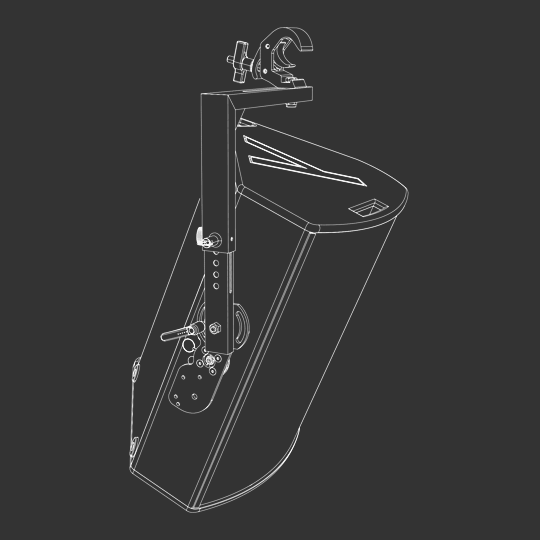

CX-Halfbracket – Installation (I) Version for CX series

The halfbracket allows for easy rotation and tilting of a CX - speaker’s standard suspension directly onto either the truss, wallbracket or the ceiling of an installation. In combination with the speaker’s Express Pin System it can be mounted quickly and safely. The telescopic halfbracket can be adjusted to fit all speakers in the CX series. The halfbracket allows overhead mounting as well.

The CX-halfbracket (M) for the CX series can be combined with the following rigging options:

M12 Quick Clamp 38/51
Stand Adaptor
Ceiling/Truss adaptor for ceiling installation with extended attachment area

Measurements: 51–60 x 33 x 5 cm
Weight: 2.35 kg
Material: Steel with high quality rustproof coating
Colour: Black

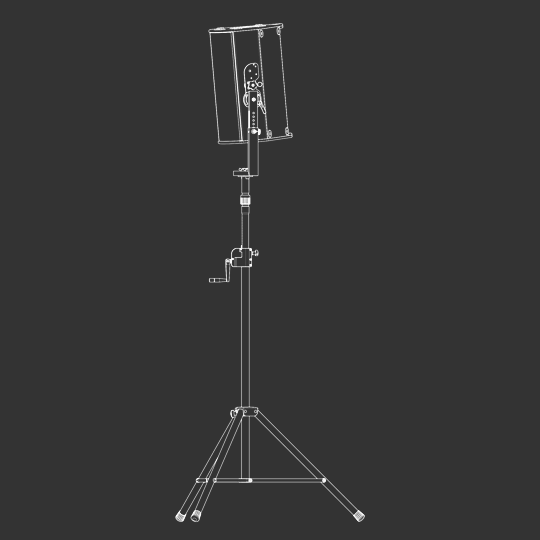

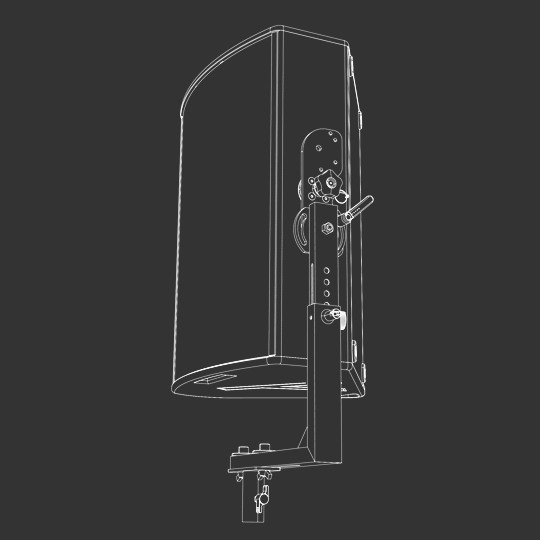

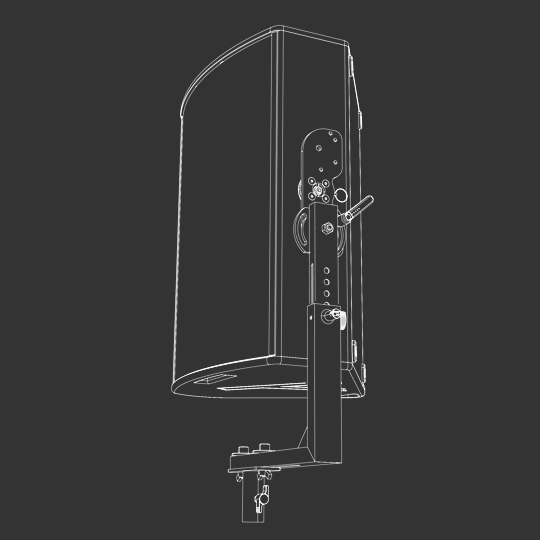

Stand Adaptor

The Stand Adaptor extends the halfbrackets of the CX- and TX series for rotating and tilting stand admission, distance rods and wall brackets with 35mm pipes.

The Stand Adaptor can be combined with the following halfbrackets of the CX- and TX series:

Halfbracket – Mobile (M) Version for CX series / TX series
Halfbracket – Installation (I) Version for CX series / TX series

The Stand Adaptor can be combined with the following stands and distance rods:

Distance rod with plastic splints
Distance rod with crank handle and plastic splints
Speaker stand with plastic splints
Speaker stand with crank handle and plastic splints

Measurements: 34 x 31 x 6 cm, Inner pipe diameter: 36 mm
Weight: 0.4 kg
Material: Steel with high quality rustproof coating
Colour: Black

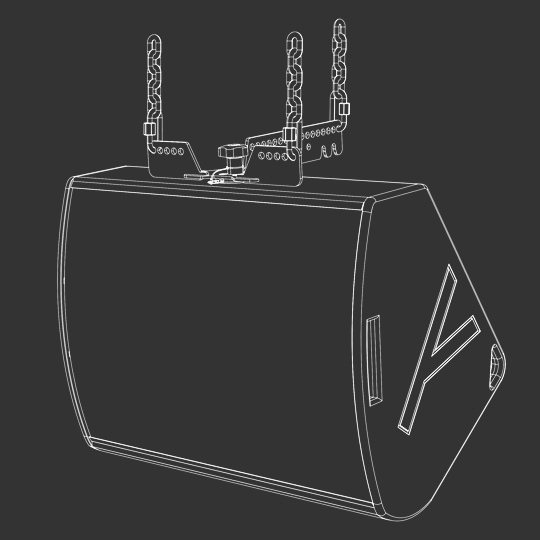

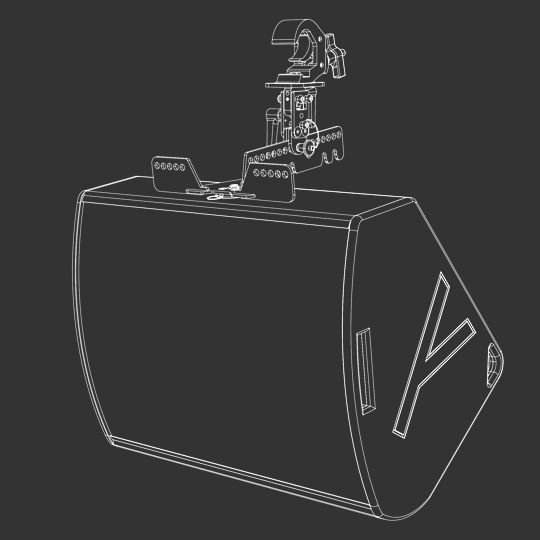

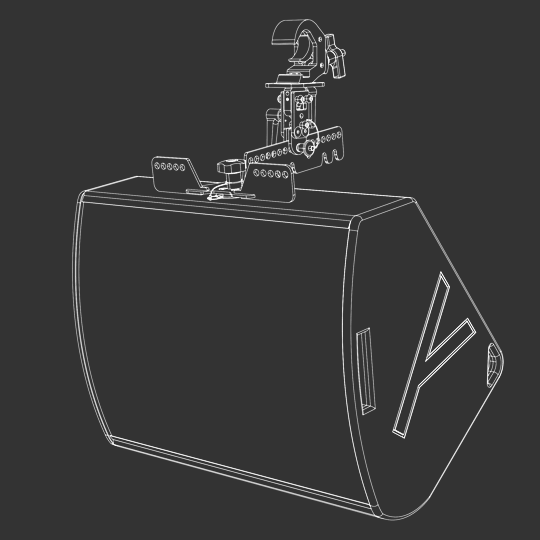

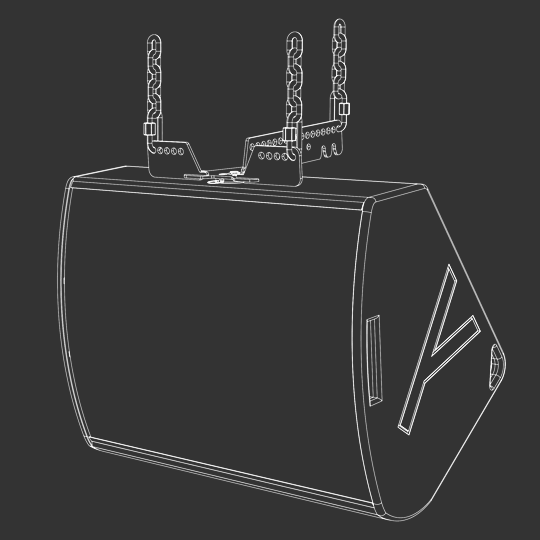

T-Bracket – Mobile (M) Version

The uniform T-Bracket allows for simple vertical or horizontal suspension of CX- or TX loudspeaker. Depending on the type of loudspeaker and position of the construction, the speaker can be either rigged to one or more suspension points, or in all varieties to the rotatable and lockable Vari Clamp. In combination with the speaker’s Express Pin System the T-Bracket can be attached quickly and safely.

The T-Bracket - Mobile (M) Version can be combined to the following rigging options:

Screw Carabiner 8mm for T-Bracket and TX- Clustercompound
Vari Clamp

Measurements: 34 x 31 x 6 cm
Weight: 1.7 kg
Material: Steel with high quality rustproof coating
Colour: Black

T-Bügel – Installations (I) Version

The uniform T-Bracket allows for simple vertical or horizontal suspension of CX- or TX loudspeaker. Depending on the type of loudspeaker and position of the construction, the speaker can be either rigged to one or more suspension points, or in all varieties to the rotatable and lockable Vari Clamp. In combination with the speaker’s Express Pin System the T-Bracket can be attached quickly and safely.

The T-Bracket - Mobile (M) Version can be combined to the following rigging options:

Screw Carabiner 8mm for T-Bracket and TX- Clustercompound
Vari Clamp
Ceiling/Truss adaptor for ceiling installation with extended attachment area

Measurements: 34 x 31 x 6 cm
Weight: 1.6 kg
Material: Steel with high quality rustproof coating
Colour: Black

Vari Clamp

The Vari Clamp is designed for the suspension of individual loudspeakers of the CX- and TX-series onto the T-Bracket or of entire speaker clusters in the TX-series at the balance point. The Vari Clamp’s jaws are infinitely adjustable, allowing for equal combination with either T-Brackets and/or cluster brackets in all rigging varieties. Besides adding tight stabilization of the loudspeakers against force effects (for example wind).

The Vari Clamp can be combined with the following rigging options:

T-Bracket – Mobile (M) Version
T-Bracket – Installation (I) Version
M12 Quick Clamp 38/51
Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area

Measurements: 12.5 x 8 x 8 cm (Quick Clamp not included)
Capacity (WLL): 250 Kg
Weight: 0.8 kg
Material: Steel with high quality rustproof coating
Colour: Black

10" Ball Lock Pin

Ball Lock Pin for Vari Clamp

Diameter: 10 mm
Capacity (WLL): 940 kg
Material: Stainless steel,
Colour: Black/Blank

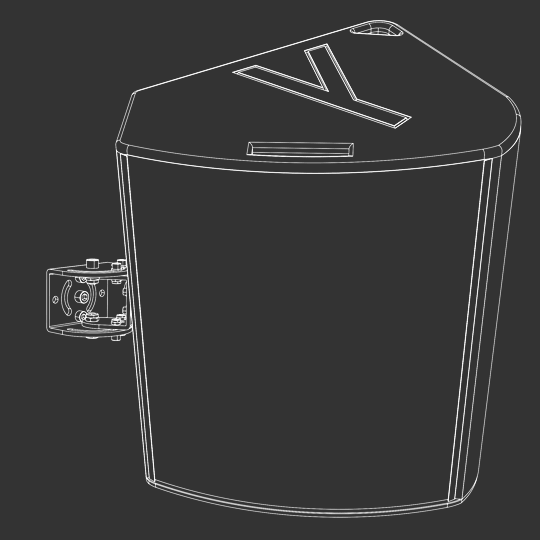

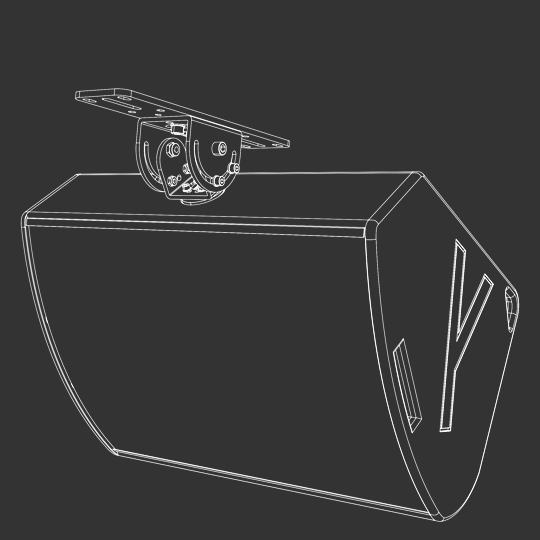

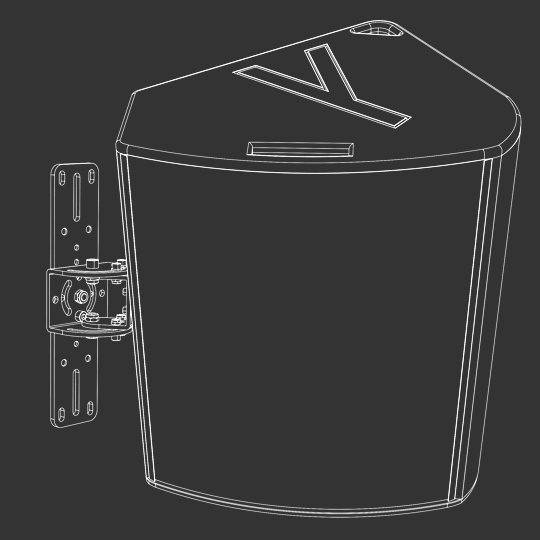

I-Bracket ‘S’

The I-Bracket is designed for simple and versatile suspension of a CX or TX loudspeaker in the installation area. Depending on the type of loudspeaker and construction position, the speaker can be rigged either vertically/horizontally as well as inclinable, rotatable and even pivotable, or is attachable to walls or trussing constructions. In combination with the speaker’s Express Pin System the I-Bracket can be attached quickly and safely.

The I-Bracket ‘S’ can be combined to the following rigging options:

Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area

Measurements: 12 x 12 x 12 cm
Weight: 1.9 kg
Material: Steel with high quality rustproof coating
Colour: Black

I-Bracket ‘L’

The I-Bracket ‘L’ allows negotiating even extreme speaker angulations. The I-Bracket is designed for simple and versatile suspension of a CX or TX loudspeaker in the installation area. Depending on the type of loudspeaker and construction position, the speaker can be rigged either vertically/horizontally as well as inclinable, rotatable and even pivotable, or is attachable to walls or trussing constructions. In combination with the speaker’s Express Pin System the I-Bracket can be attached quickly and safely.

The I-Bracket ‘L’ can be combined to the following rigging options:

Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area

Measurements: 18 x 12 x 12 cm
Weight: 2.6 kg
Material: Steel with high quality rustproof coating
Colour: Black

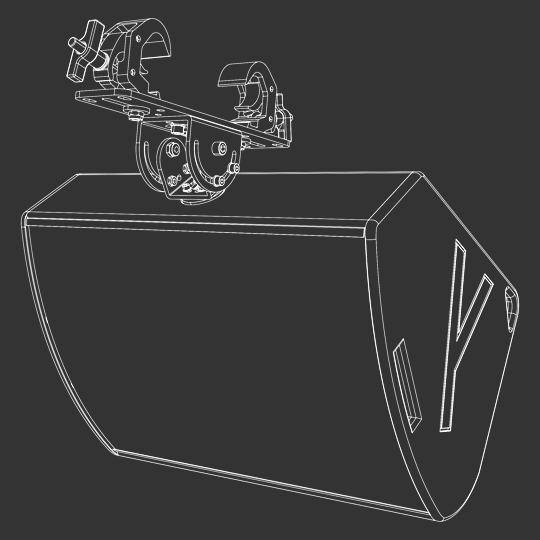

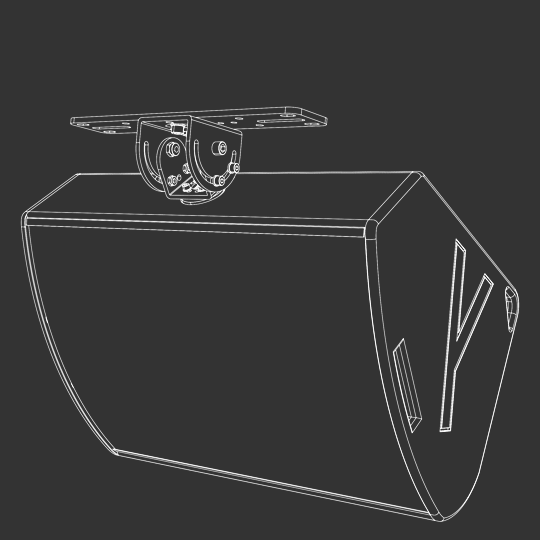

Ceiling/Truss adaptor

Combined with the rigging options of the CX and TX series, the Ceiling/Truss adaptor allows for either positioning in the truss centre or defined as well as extended ceiling attachment, if weight distribution on the truss or ceiling structure require it. The M12 Quick Clamps are adjustable to make the adaptor fit to all standard truss types. M8 Eye Bolts can be requested separately.

The Ceiling/Truss adaptor can be combined with the following rigging options:

Halfbracket (M) for CX and TX series
Halfbracket (I) for CX and TX series
Vari Clamp
I-Bracket ‘S’
I-Bracket ‘L’
M12 Quick Clamp 38/51

Measurements: 40 x 9 x 0.8 cm
Weightt: 2.0 kg
Material: Steel with high quality rustproof coating
Colour: Black

M12 Quick Clamp 38/51

Quick Clamp with M12 Screw admission for pipes of 38 to 51mm diameter.

The M12 Quick Clamp 38/51 can be combined with the following rigging options:

Halfbracket (M) for CX and TX series
Halfbracket (I) for CX and TX series
Vari Clamp
Ceiling/Truss Adaptor

Measurements: 11 x 8.5 x 5 cm
Weight: 0.8 Kg
Capacity (WLL): 250 kg
Material: Duraluminium
Colour: Black

Eye Bolt M10

The M10 Eye Bolt, in combination with the 6mm Safety Rope, provides security for the loudspeakers of the CX- and TX series in accordance with BGV C1. The Eye Bolt is screwed into the appropriate thread to secure the speaker against unexpected falls.

Type: similar to DIN 580, high-strength, forged
Winding: M10
Capacity(WLL): 400 kg
Material: Stainless Steel
Colour: Black

Safety Rope 6mm

The Safety Rope, in combination with the M10 Eye Bolt and the 8mm Screw carabiner, provides security for all loudspeakers of the CX- and TX series in accordance with BGV C1 up to 35kg.

Length: 1m
Strength: 6mm
Material: Stainless steel
Colour: Black

Screw Carabiner 8mm

The high-strength carabiner is necessary for the suspension of individual or several loudspeakers as a link between the rigging options T-Bracket and TX-Clusterbracket with locking chains or between M10 Eye Bolt and 6mm Safety Rope.

Type: similar to DIN 56926, high-strength, forged
Diameter: 8mm
Capacity (WLL): 560 kg
Material: Stainless steel
Colour: Black

Module Cover ‘S’

The cover plate ‘S’ can be screwed onto the active module’s control panel to prevent unwanted interference. A change in set up for instance necessitates an auxiliary.

Measurements: 11.6 x 10 x 0.2 cm
Weight: 0.1 kg
Material: Steel, powder coated
Colour: Black

Distance rod with plastic splints

Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate.

Weight: 2.5 kg
Height: 900–1380 mm
Max. load capacity: 35 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Distance rod with hand crank and plastic splints

Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate. The comfortable hand crank facilitates an easy and secure height adjustment.

Weight: 3.8 kg
Height: 920 to 1.520 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Speaker stand with plastic splints

The moveable plastic splints create a vibration-free connection between loudspeaker and stand. Easy ring lock mechanism. Height adjustment using a non-scratching locking screw and additional safety pin for a secure hold.

Weight: 5 kg
Height: 1.370 to 2.100 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Speaker stand with plastic splint adapter

The plastic splint adapter creates a vibration-free connection between loudspeaker and stand. Easy ring lock mechanism. The comfortable hand crank facilitates an easy and secure height adjustment.

Weight: 9.3 kg
Height: 1.530 to 2.350 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm
