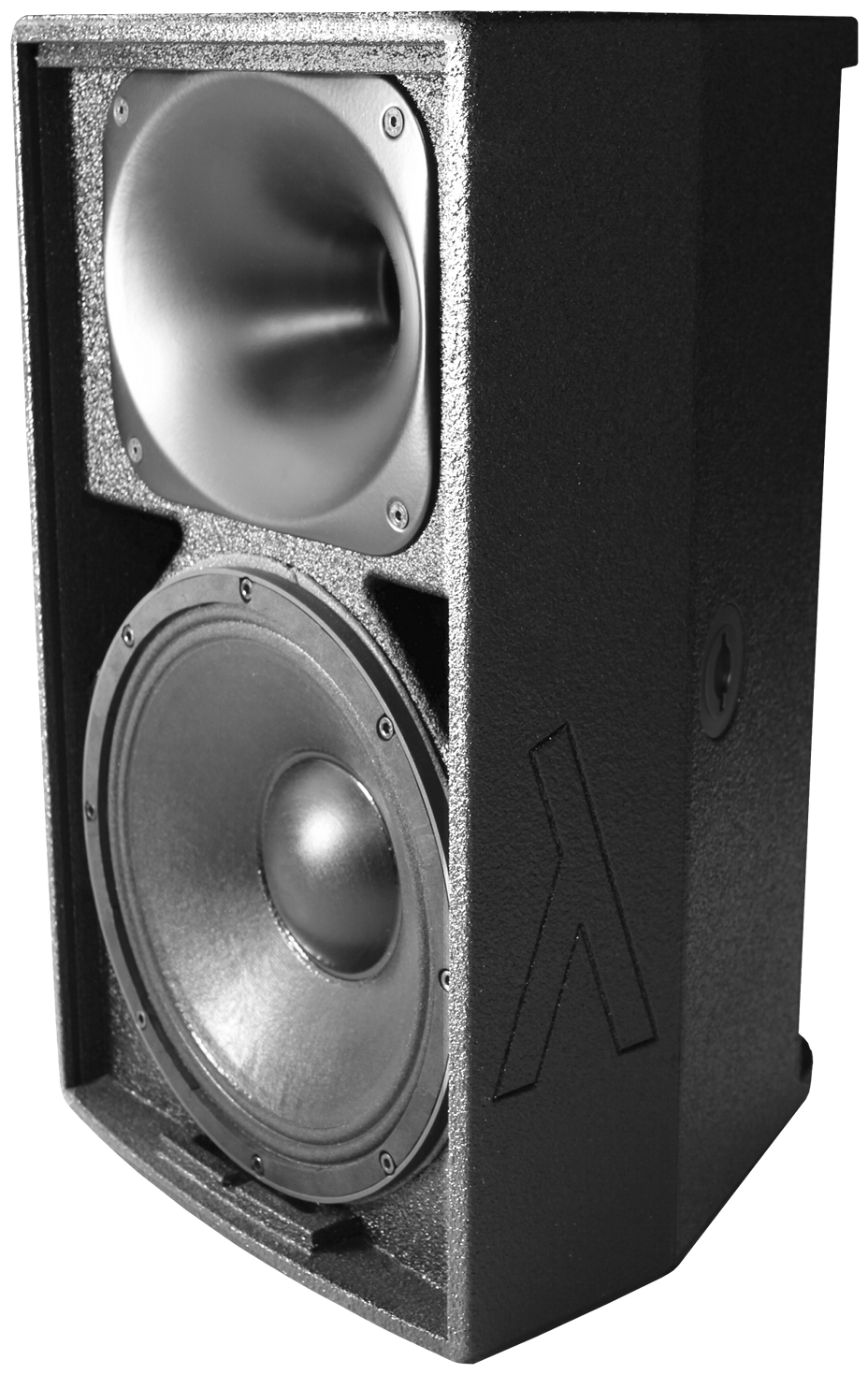

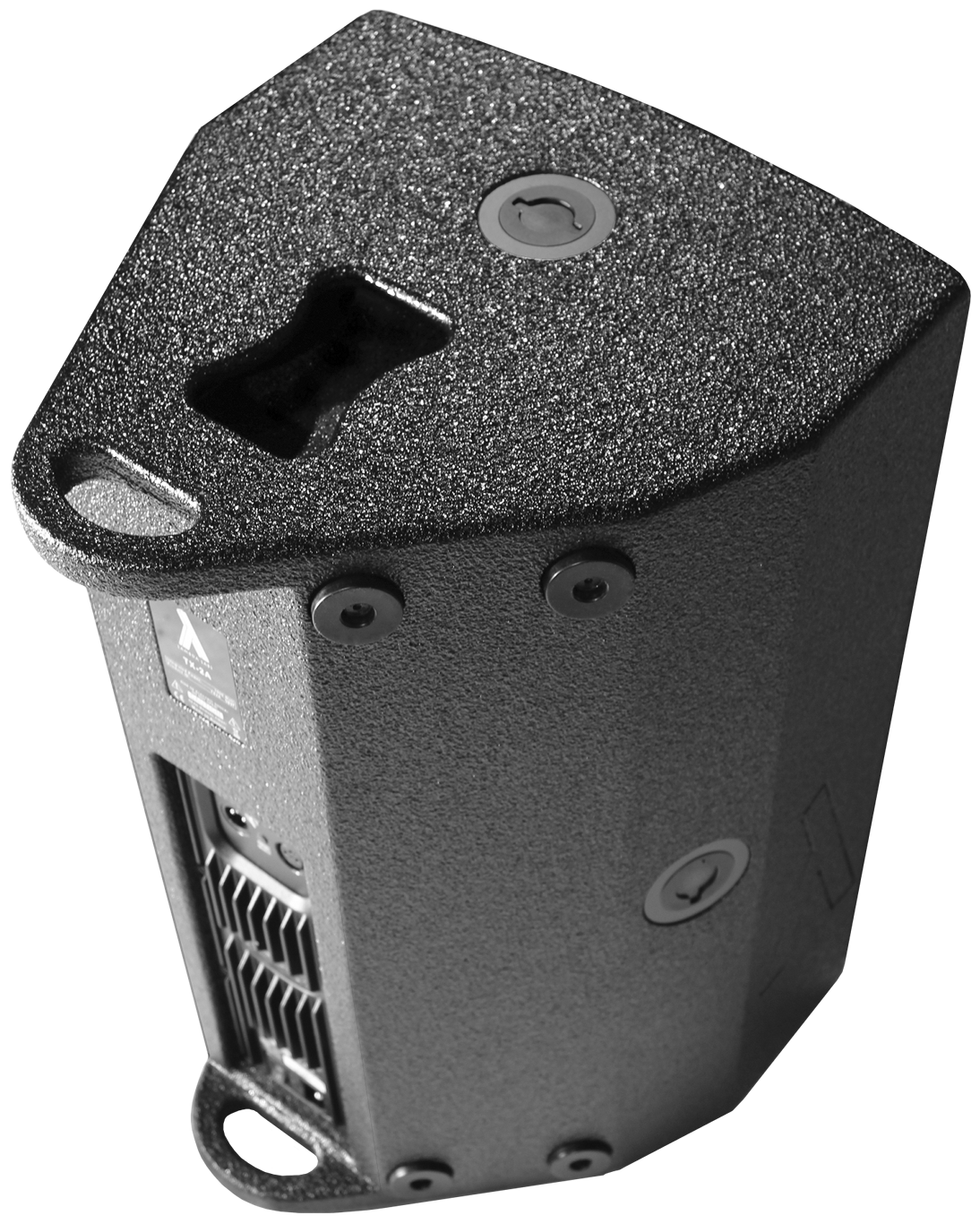

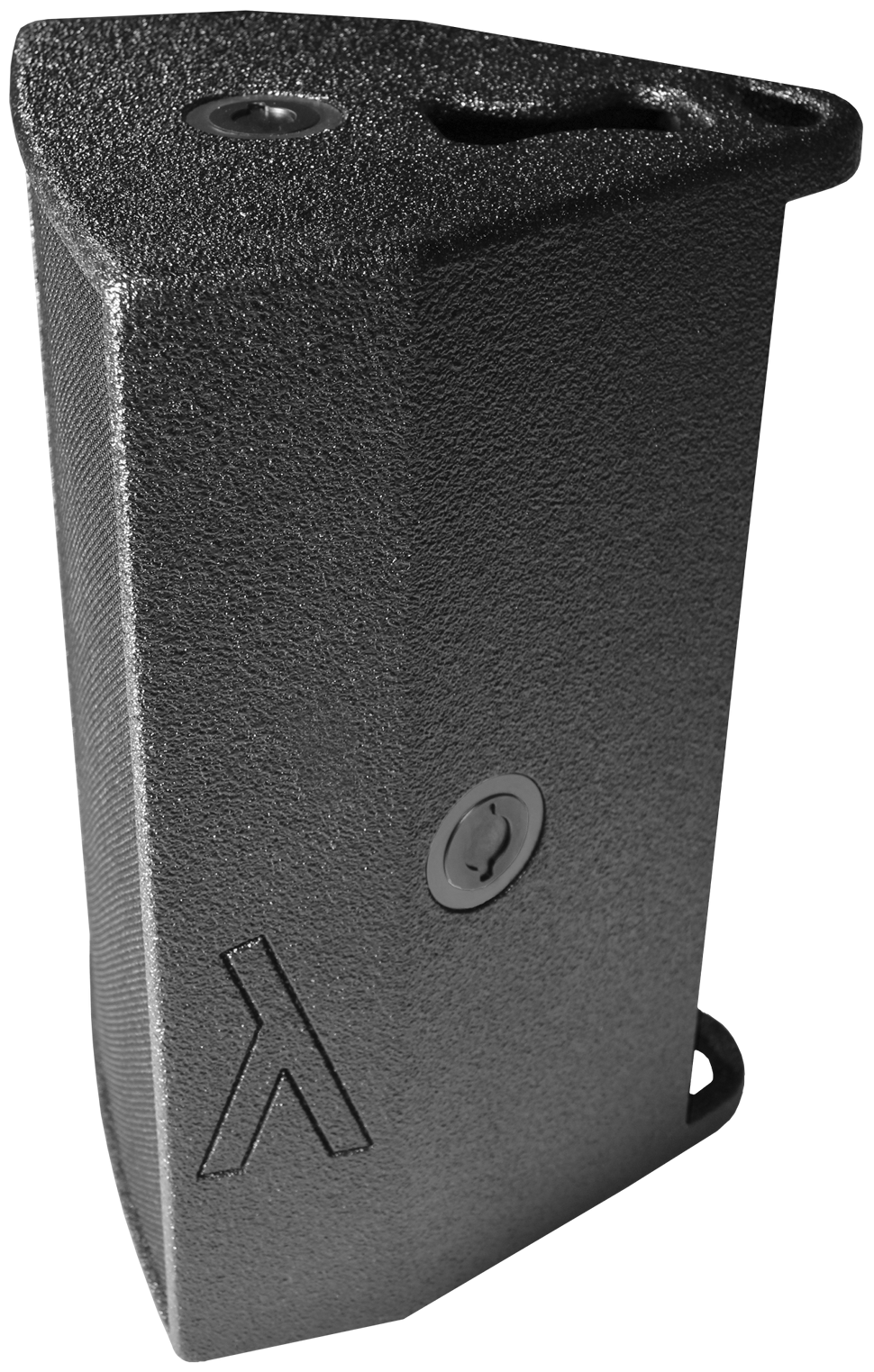

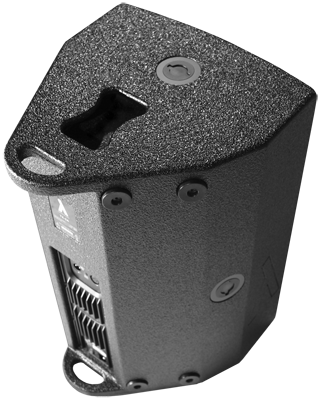

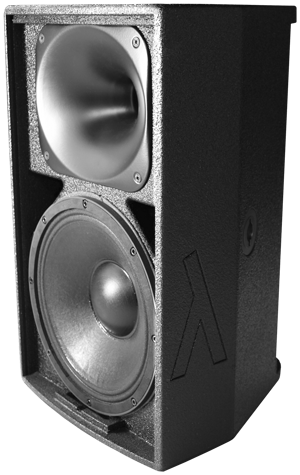

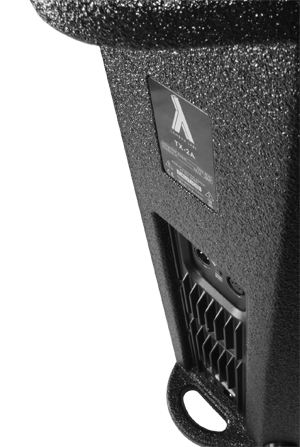

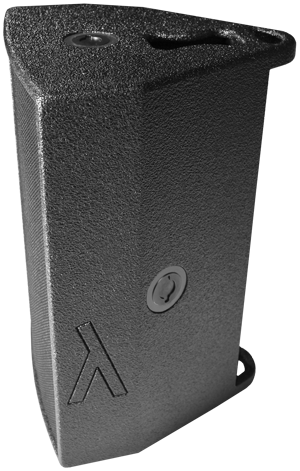

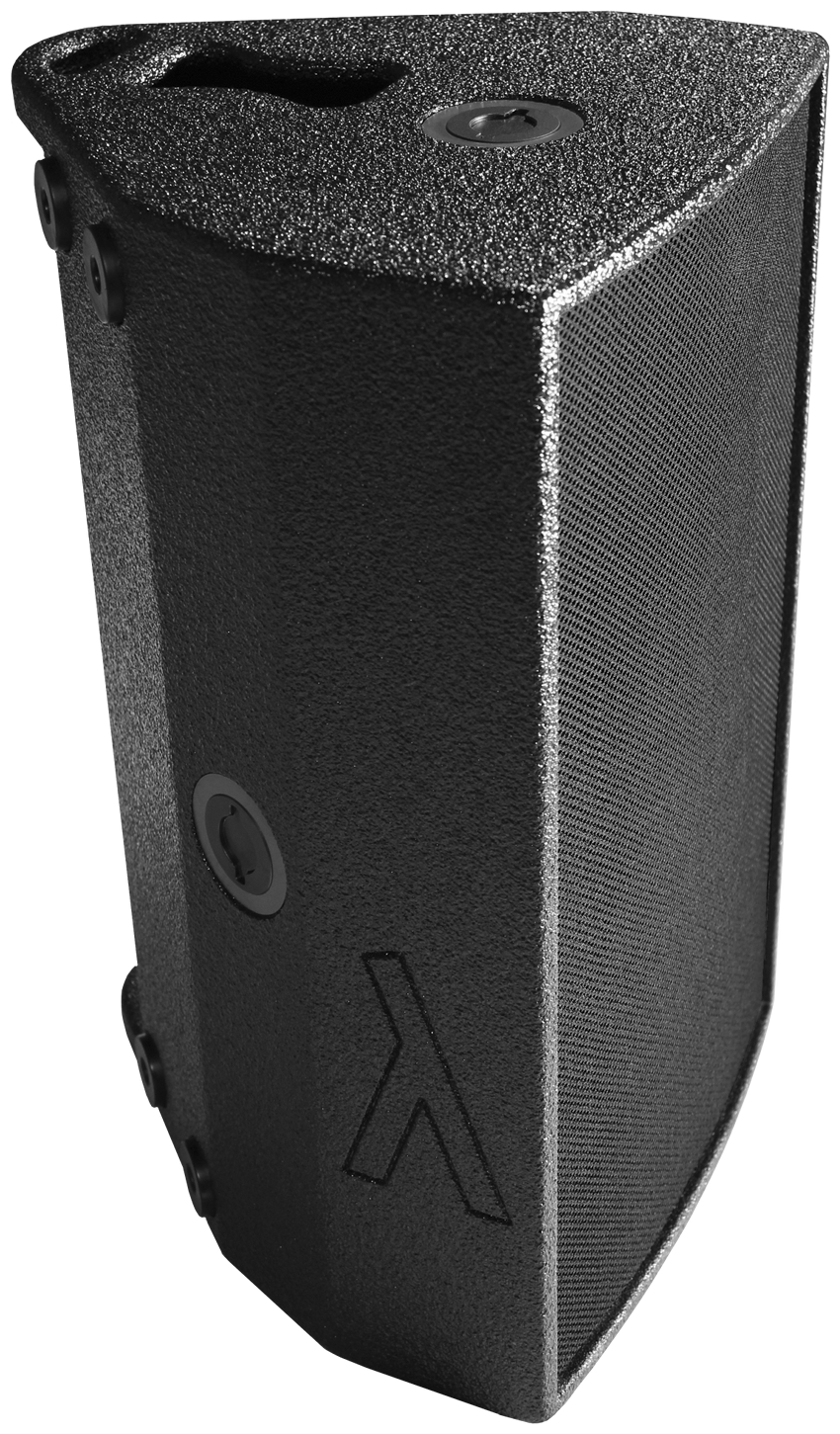

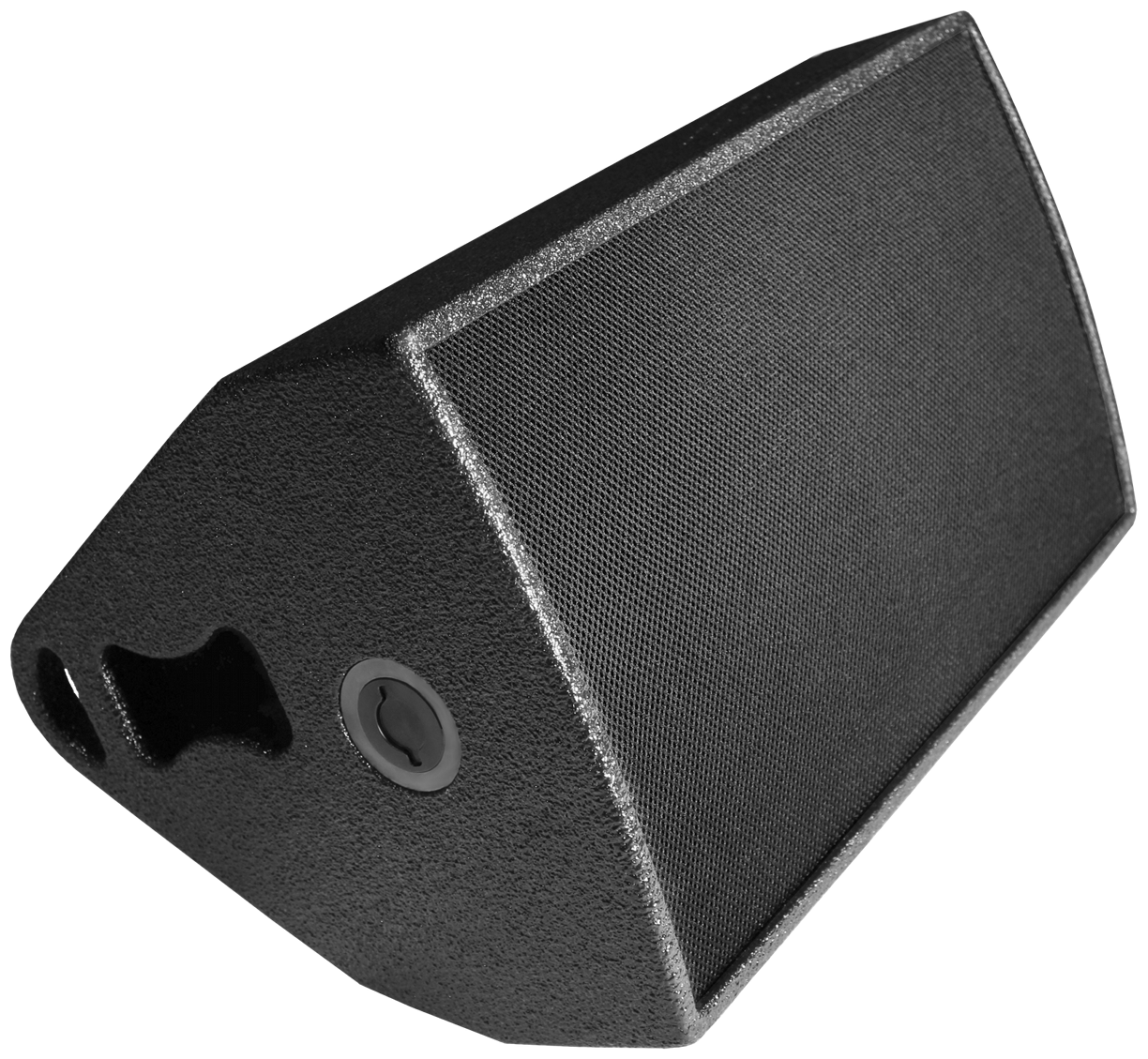

Express Pin enables a quick and safe Plug & Play connection for all rigging options at the EPS point of the respective loudspeaker.
The EPS Mobile Version differs from the Installation Version in aspects of safety, tool free usage, size and weight. Exchange among the EPS versions at the rigging spots is possible at all times.
Delivery of the EPS Mobile Version includes the following pre-set rigging options:
• Halfbracket – Mobile (M) Version for TX Series / CX Series
• T-Bracket – Mobile (M) Version
Material: Stainless steel
Colour: Black
Express Pin enables quick and safe Plug & Play connection for all rigging options at the EPS point of the respective loudspeaker.
The EPS Installation version differs from the Mobile version in aspects of safety such as obligatory tool usage, size and weight. Changing among the EPS versions at the rigging spots is possible at all times.
Delivery of the EPS Installation version includes the following preset rigging options:
• Halfbracket – Installation (I) Version TX Series / CX Series
• T-Bracket – Installation (I) Version
• I-Bracket ‘S’
• I-Bracket ‘L’
Material: Stainless steel
Colour: Black

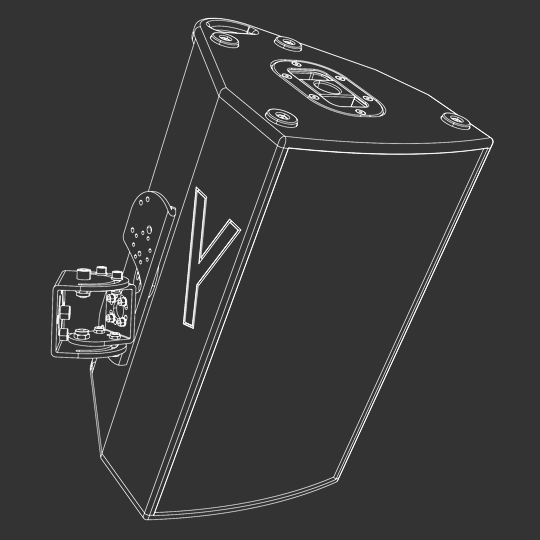

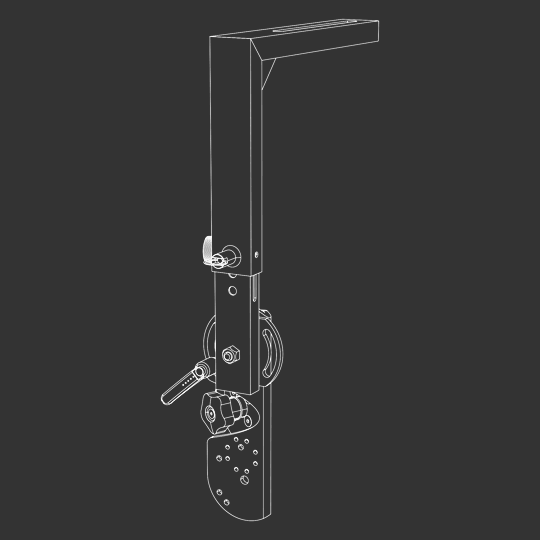

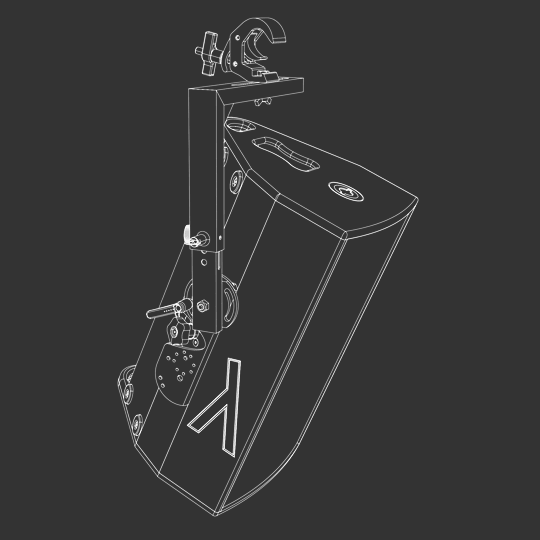

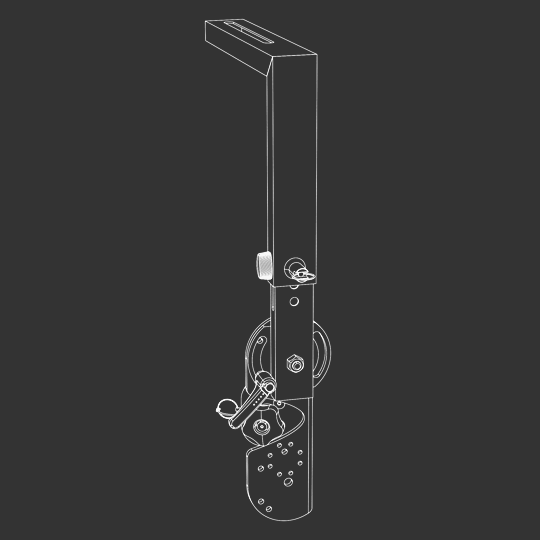

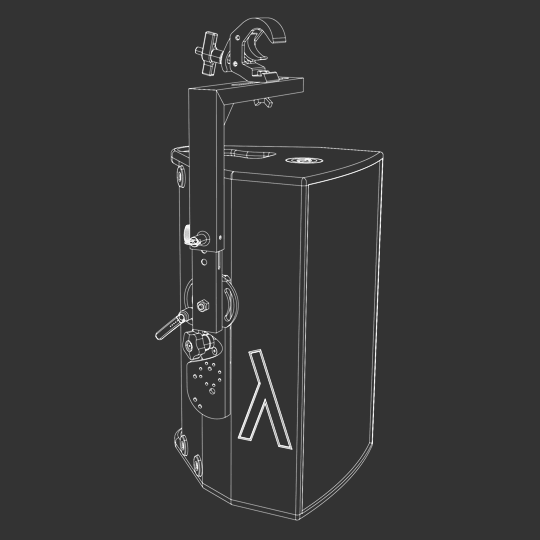

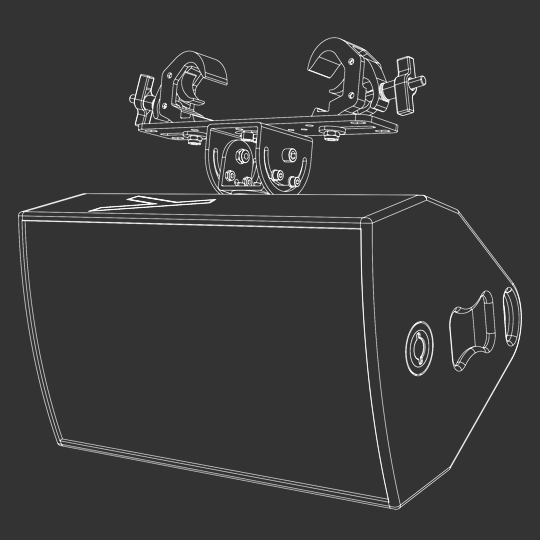

The halfbracket allows for easy rotation and tilting of a TX - speaker’s standard suspension directly onto the truss or a stand. In combination with the speaker’s Express Pin System it can be mounted quickly and safely. The telescopic halfbracket can be adjusted to fit all speakers in the TX series. The symmetrical halfbracket can be mounted on both sides of the speaker and allows overhead mounting as well.
The TX-halfbracket (M) for the TX series can be combined with the following rigging options:
• M12 Quick Clamp 38/51
• Stand Adaptor
• Ceiling/Truss adaptor for positioning in the truss centre
Measurements: 52.5–63 x 33 x 5 cm
Weight: 2.9 kg
Material: Steel with high quality rustproof coating
Colour: Black

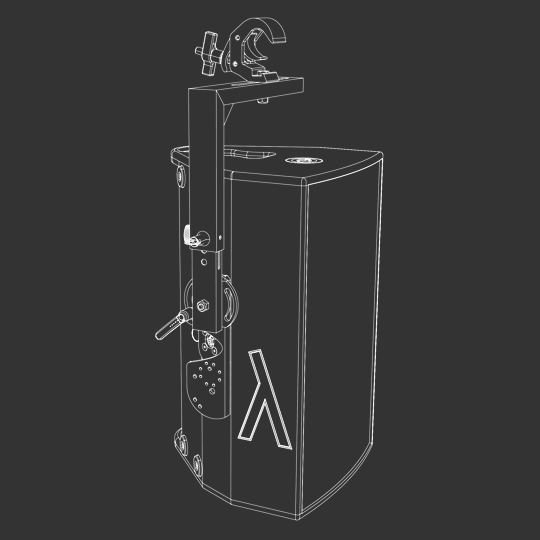

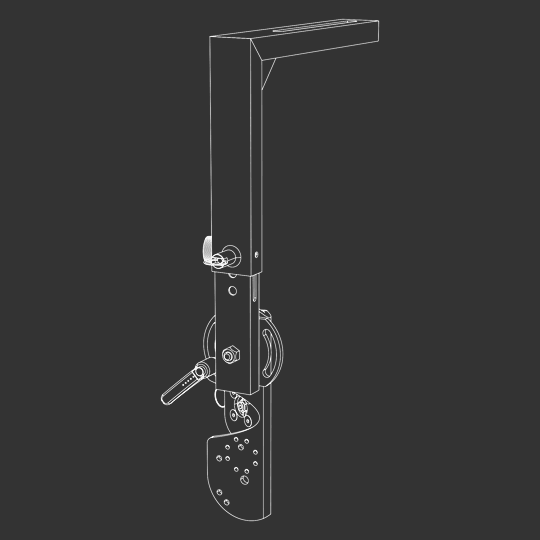

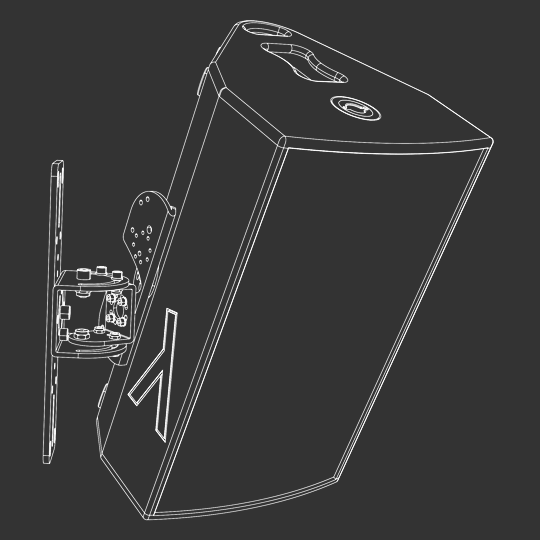

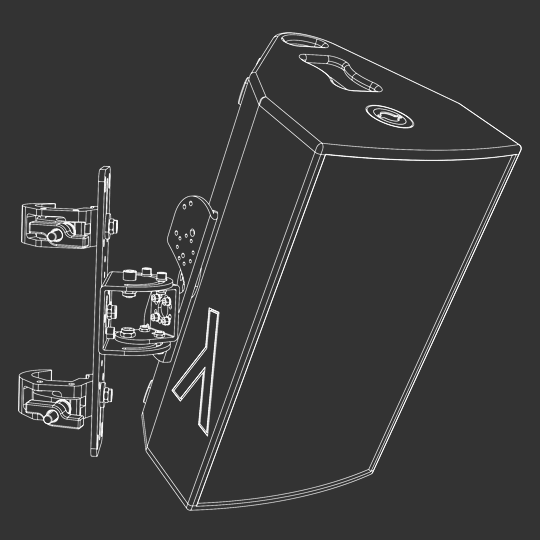

The halfbracket allows for easy rotation and tilting of a TX-speaker’s standard suspension directly onto either the truss, wallbracket or the ceiling of an installation. In Combination with the speaker’s Express Pin System it can be mounted quickly and safely. The telescopic halfbracket can be adjusted to fit all speakers in the TX series. The symmetrical halfbracket can be mounted on both sides of the speaker and allows overhead mounting as well.
The TX-halfbracket (I) for the TX series can be combined with the following rigging options:
• M12 Quick Clamp 38/51
• Stand Adaptor
• Ceiling/Truss adaptor for ceiling installation with extended attachment area
Measurements: 52.5-63 x 33 x 5 cm
Weight: 2.8 kg
Material: Steel with high quality rustproof coating
Colour: Black

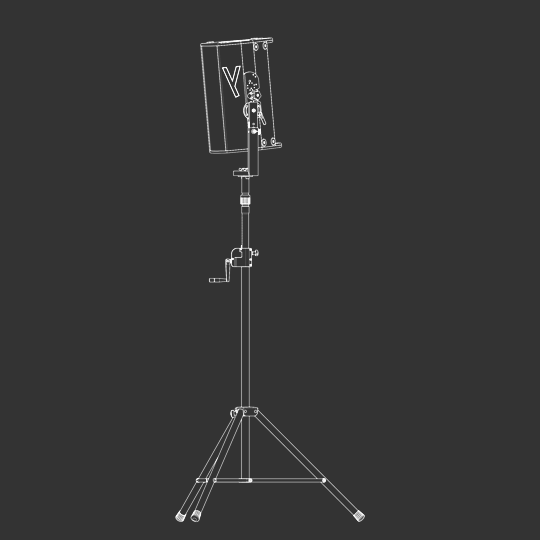

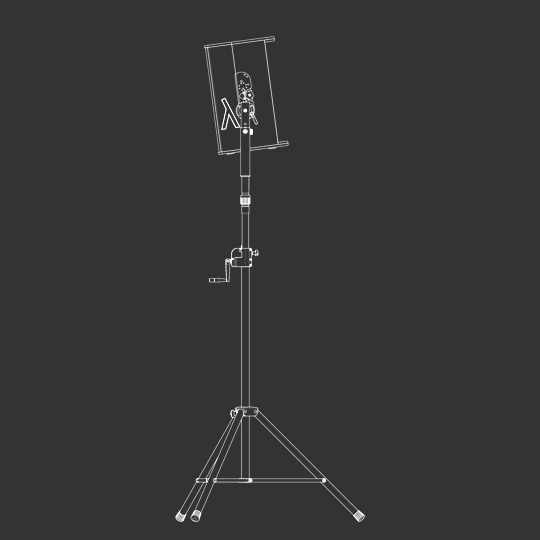

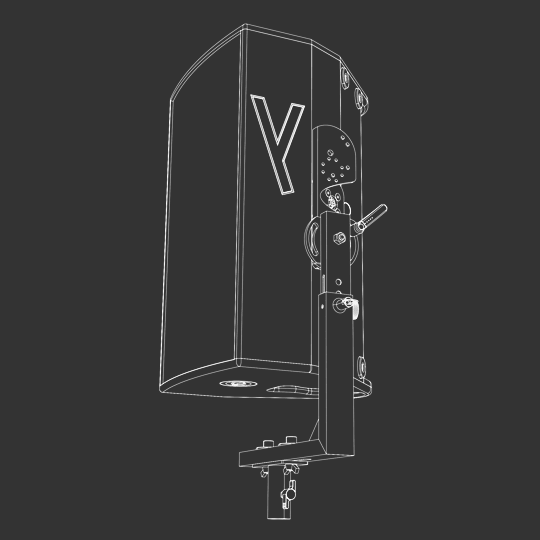

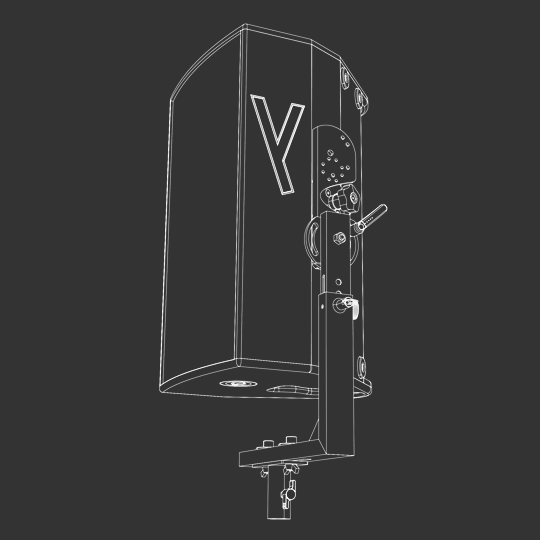

The Stand Adaptor extends the halfbrackets of the TX- and CX series for rotating and tilting stand admission.
The Stand Adaptor can be combined with the following halfbrackets of the TX and CX series:
• Halfbracket – Mobile (M) Version for TX series / CX series
• Halfbracket – Installation (I) Version for TX series / CX series
The Stand Adaptor can be combined with the following stands and distance rods:
• Distance rod with plastic splints
• Distance rod with crank handle and plastic splints
• Speaker stand with plastic splints
• Speaker stand with crank handle and plastic splints
Measurements: 9,5 x 12 x 5 cm, Inner pipe diameter: 36mm
Weight: 0.4 kg
Material: Steel with high quality rustproof coating
Colour: Black

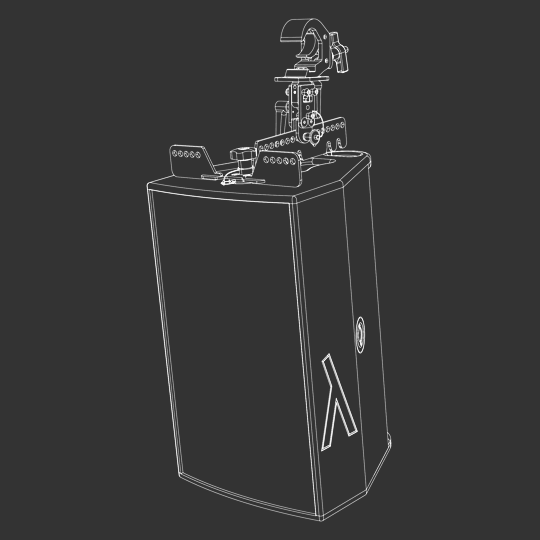

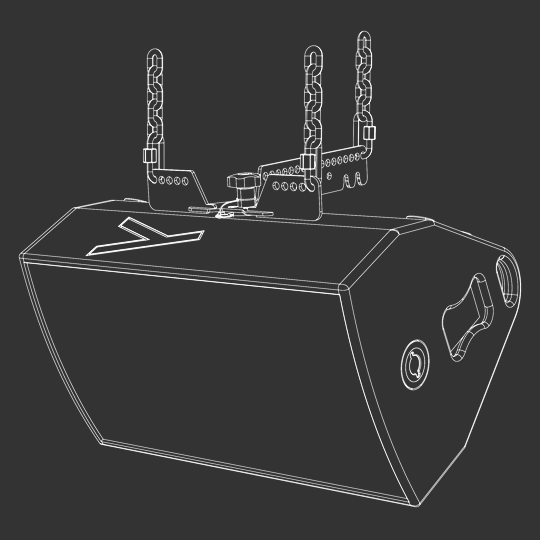

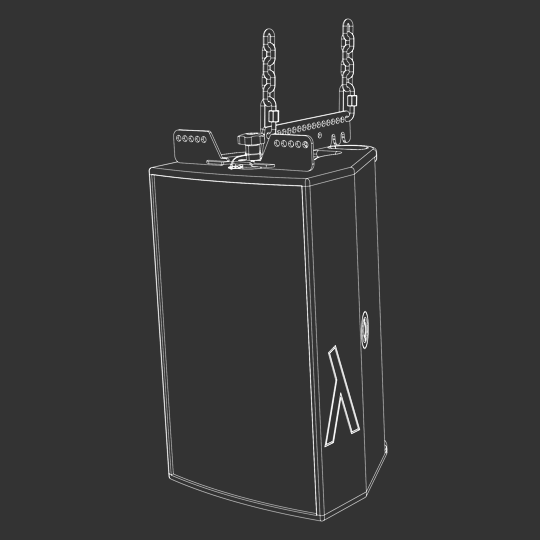

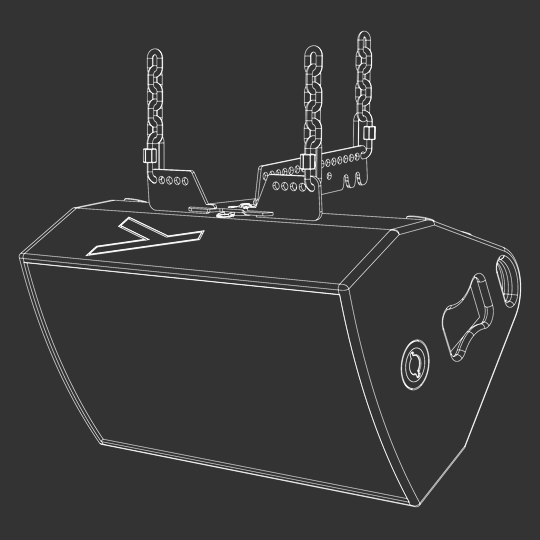

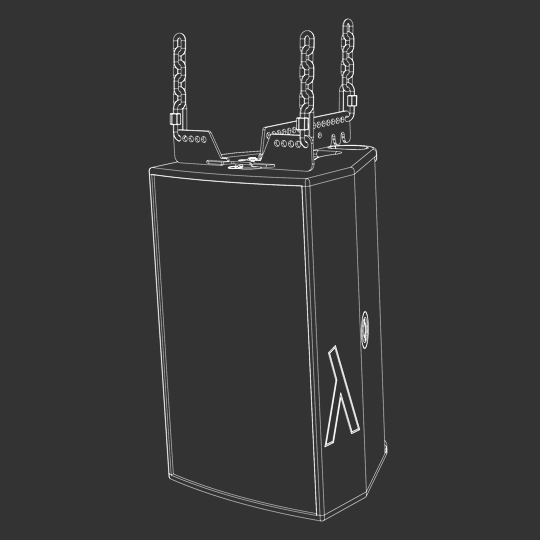

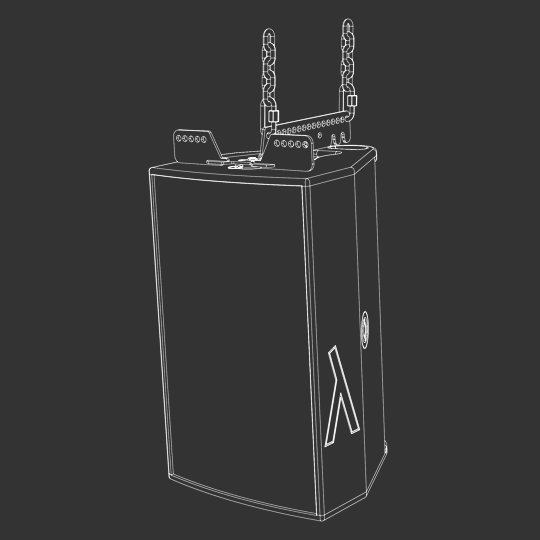

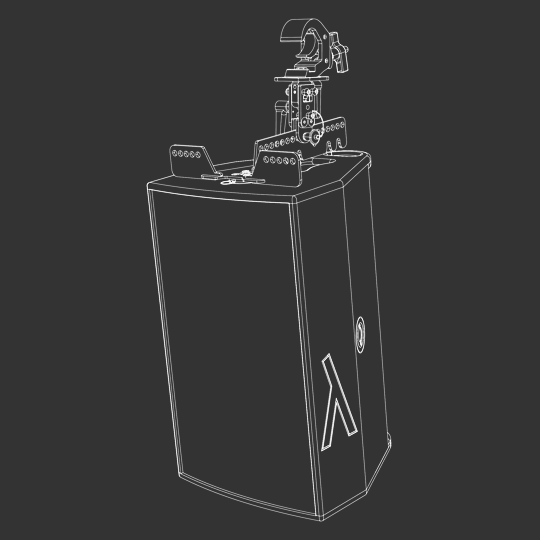

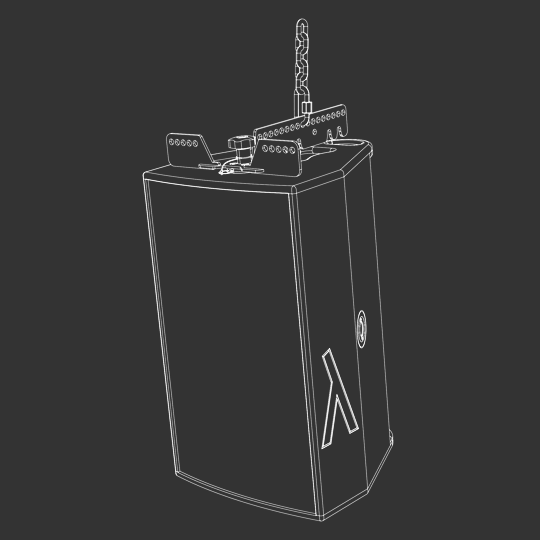

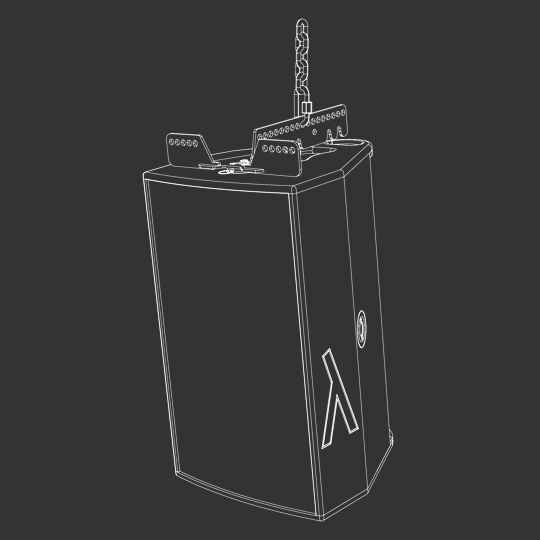

The uniform T-Bracket allows for simple vertical or horizontal suspension of TX- or CX-loudspeaker. Depending on the type of loudspeaker and position of the construction, the speaker can be either rigged to one or more suspension points, or in all varieties to the rotatable and lockable Vari Clamp. In combination with the speaker’s Express Pin System the T-Bracket can be attached quickly and safely.

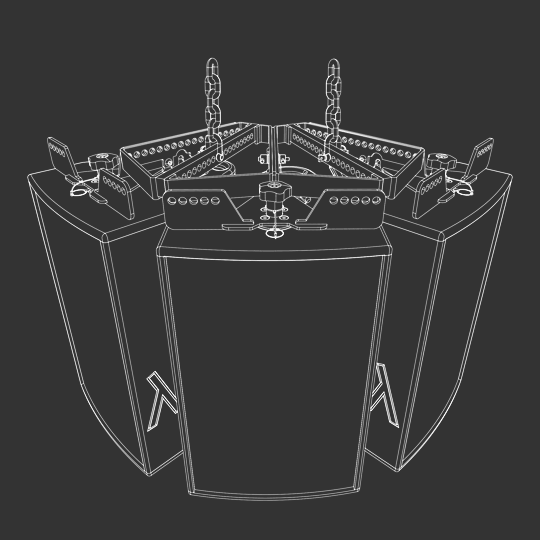

Additionally, the use of the T-Bracket and one or more cluster brackets, allows for up to three TX loudspeakers to be merged into a speakercluster and if required may be rigged to a single chain or the Vari Clamp.
The T-Bracket - Mobile (M) Version can be combined to the following rigging options:
• Screw Carabiner 8mm for T-Bracket and TX- Clustercompound
• Cluster Bracket for TX-2
• Vari Clamp
• Ceiling/Truss adaptor for ceiling installation with a defined attachment area
Measurements: 34 x 31 x 6 cm
Weight: 1.6 kg
Material: Steel with high quality rustproof coating
Colour: Black

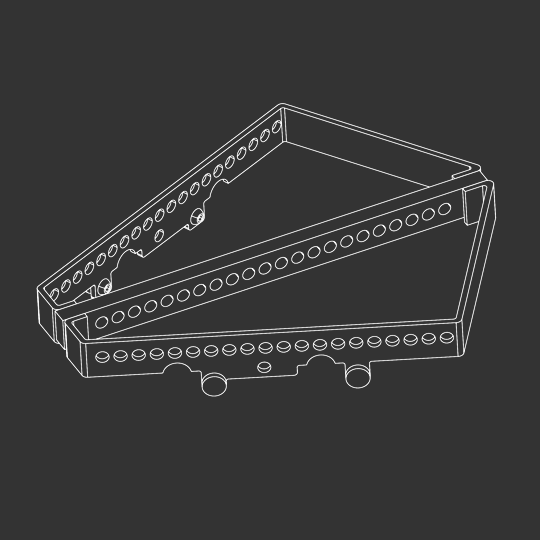

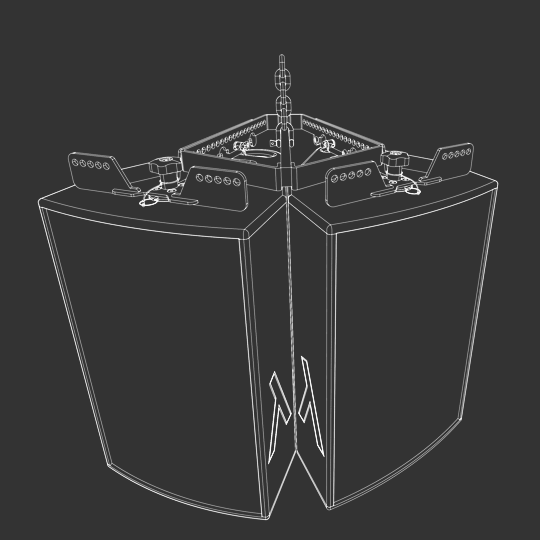

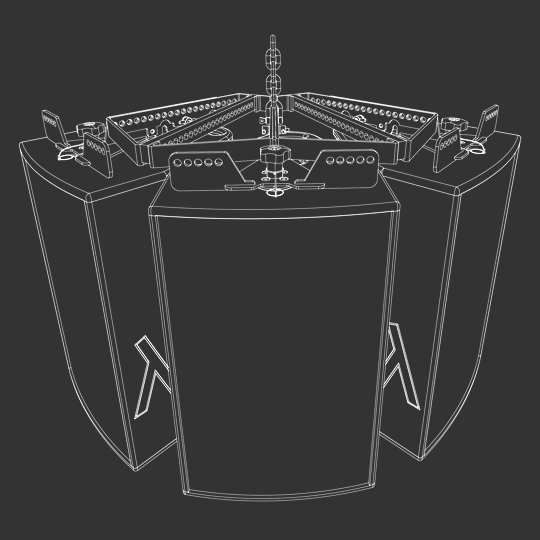

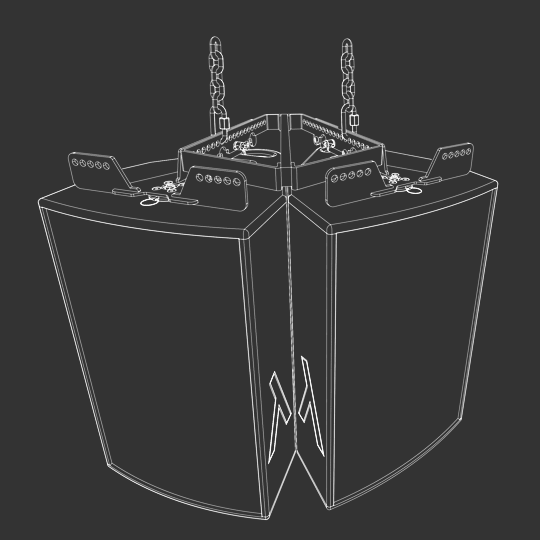

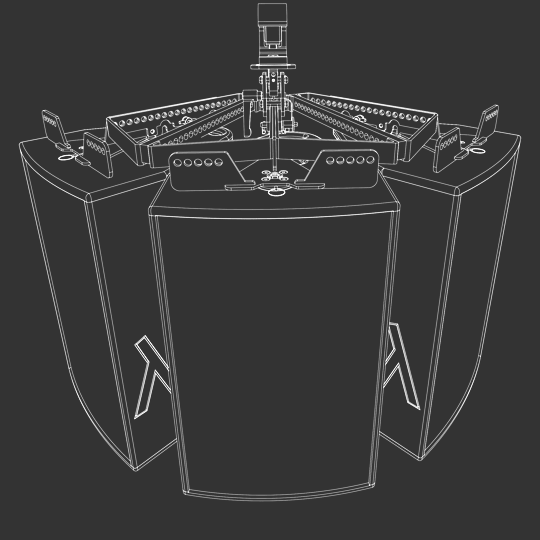

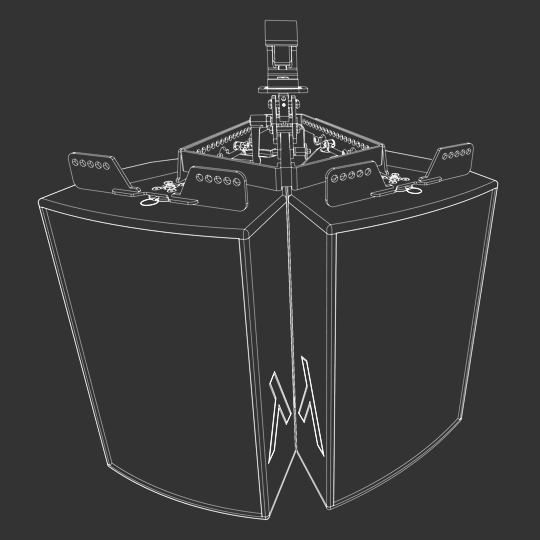

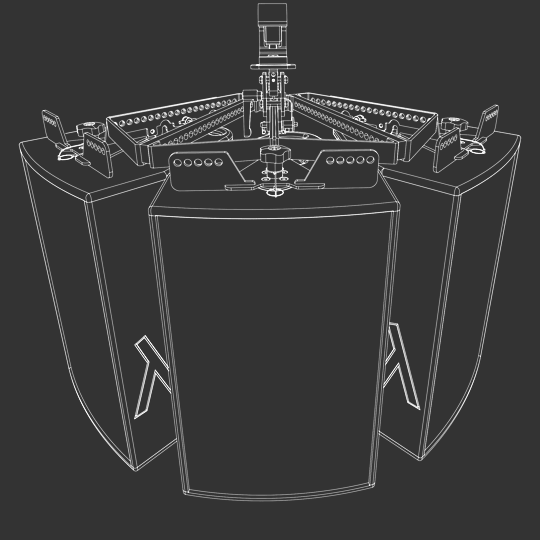

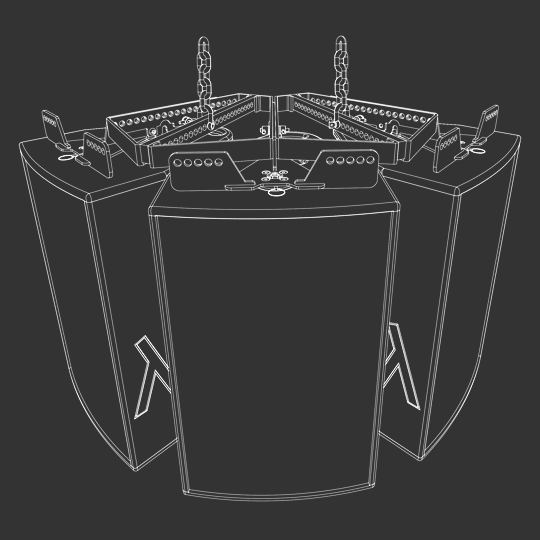

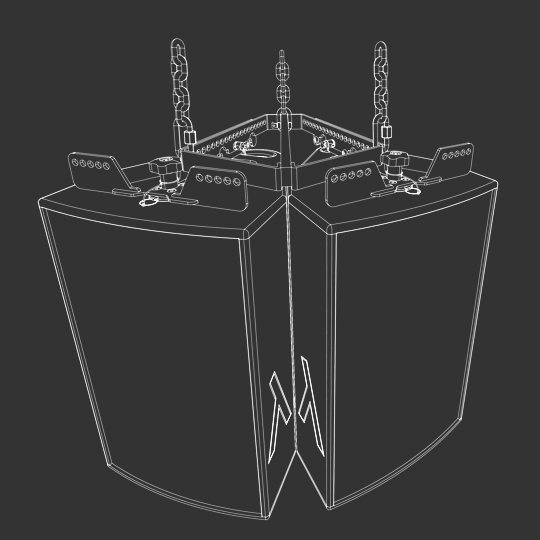

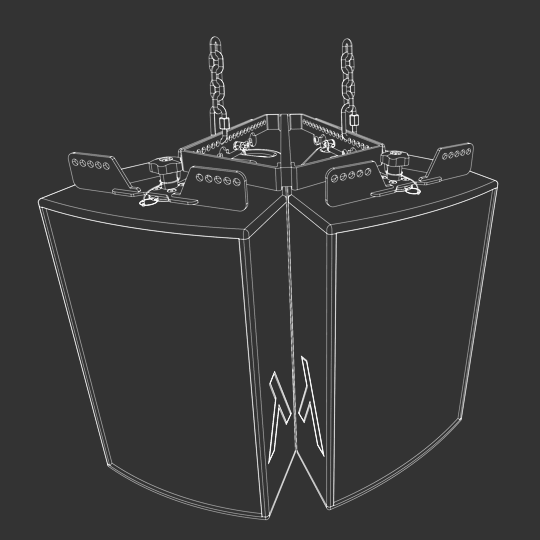

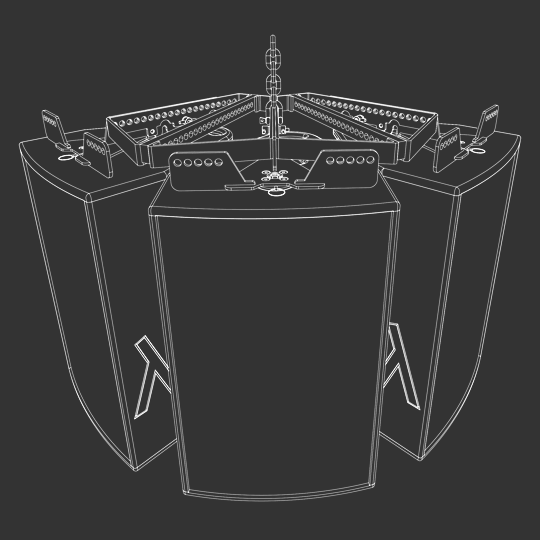

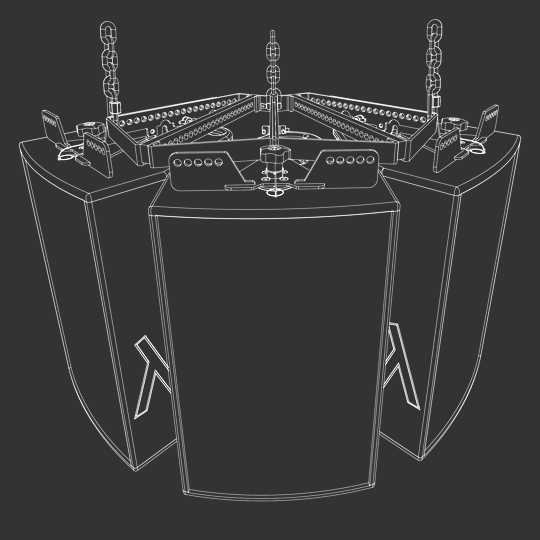

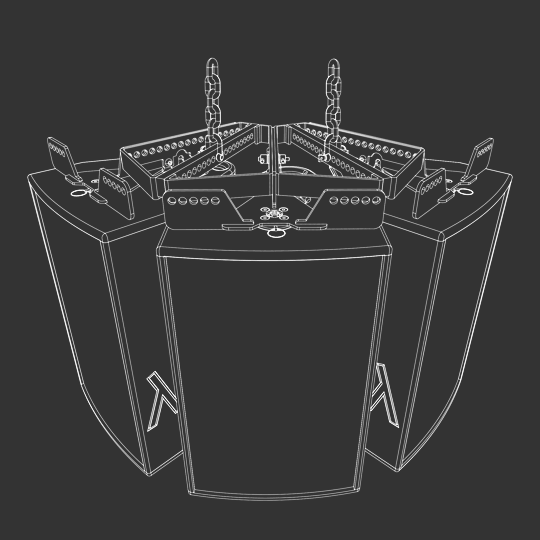

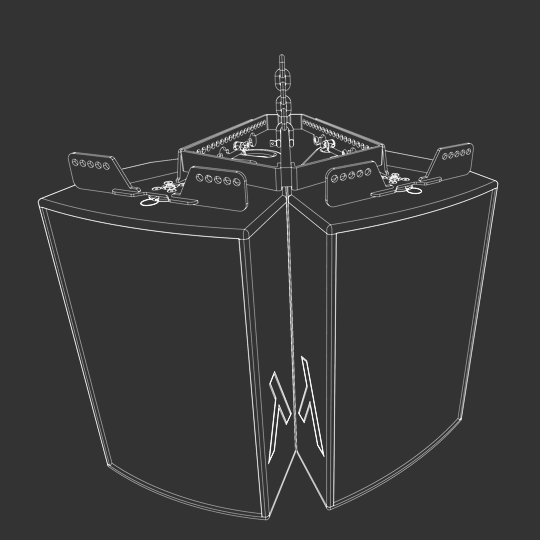

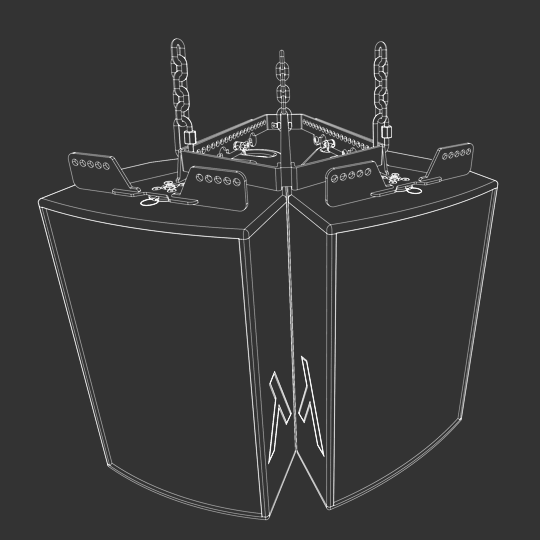

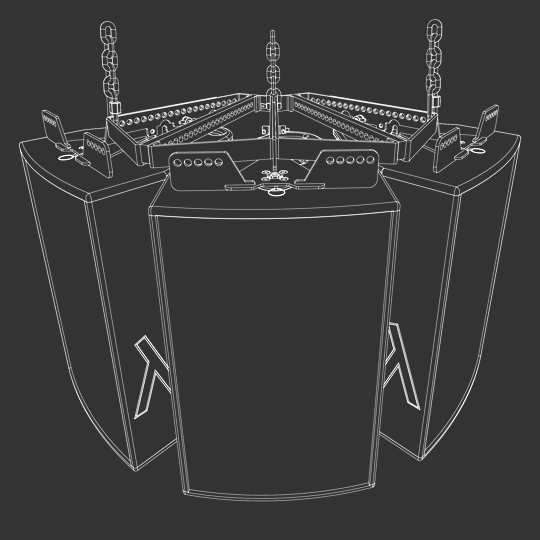

The cluster bracket allows for up to three TX-2 loudspeakers to be merged into a speaker cluster quickly and easily. Once inserted at the cluster bracket’s fixed admission points the T-Bracket is locked and secured with the Combi Cluster Pin in a matter of seconds. The Combi Cluster Pin is equally suited for all cluster options. Depending on cluster size 2 or 3 Combi Cluster Pins may be required. The cluster compound can be either rigged to one/several suspension points or to the rotatable and lockable Vari Clamp.
The Cluster bracket for TX-2 combines with the following rigging options:
• Combi Cluster Pin / Combi Pin
• Screw carabiner for T-Bracket and Cluster compound
• D-Shackle Cluster compound
• Vari Clamp
Abmessungen: 39 x 34 x 5,3 cm
Gewicht: 2,65 kg
Material: Stahl mit hochwertiger Anti-Rost Beschichtung
Farbe: Schwarz
The Combi Cluster Pin provides zero-play joining between the T-Bracket and the Cluster bracket in a Cluster compound. Construction of the Combination Cluster Pin is identical to the Combination Pin, including however an additional self-locking counter nut in its delivery. The Combination Cluster Pin fits all cluster options equally. Depending on cluster size, 2 or 3 Combination Cluster Pins are required.
The Combi Pin provides quick and easy connection of all wheelboard options. Optional use allows for simple plugging or additional fastening for vibration-free attachment of the wheelboard. Delivery of the wheelboard includes 2 combination pins in loss-free connection.
Diameter: 8/10mm
Material: Stainless Steel
Colour: Black

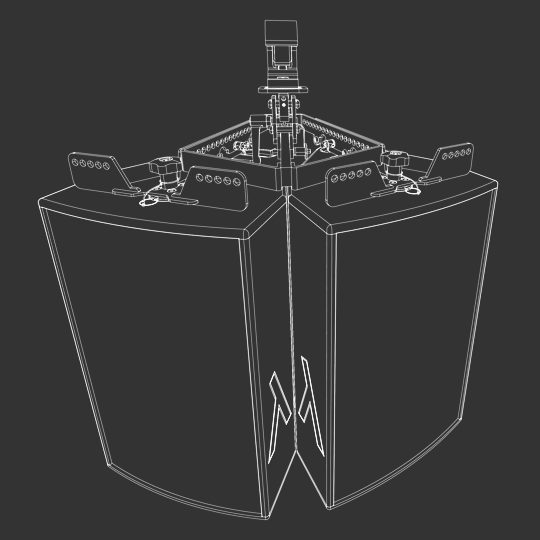

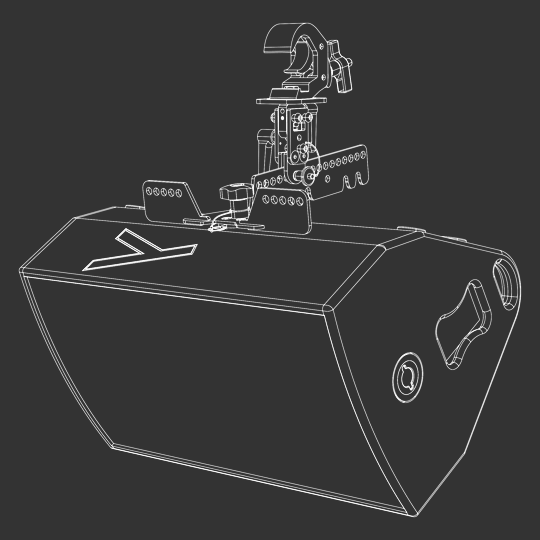

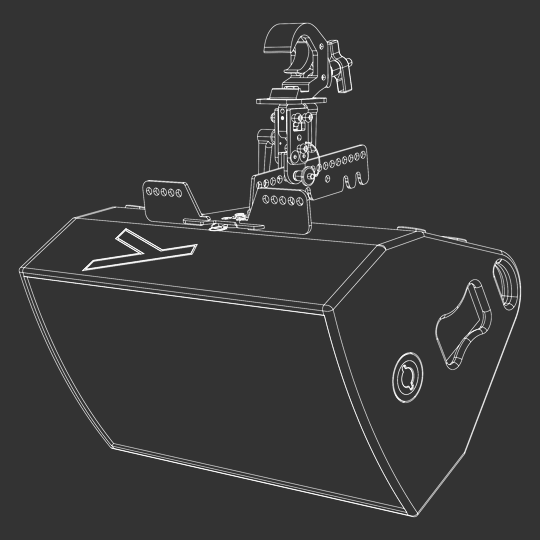

The Vari Clamp is designed for the suspension of individual loudspeakers of the TX- and CX series onto the T-Bracket or of entire speaker clusters in the TX-series at the balance point. The Vari Clamp’s jaws are infinitely adjustable, allowing for equal combination with either T-Brackets and/or cluster brackets in all rigging varieties. Besides adding tight stabilization of the loudspeakers against force effects (for example wind).
The Vari Clamp can be combined with the following rigging options:
• T-Bracket – Mobile (M) Version
• T-Bracket – Installation (I) Version
• Cluster Bracket for TX-2
• M12 Quick Clamp 38/51
• Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area
Measurements: 12.5 x 8 x 8 cm (Quick Clamp not included)
Capacity (WLL): 250 Kg
Weight: 0.8 kg
Material: Steel with high quality rustproof coating
Colour: Black
Ball Lock Pin for Vari Clamp
Diameter: 10 mm
Capacity (WLL): 940 kg
Material: Stainless steel,
Colour: Black/Blank

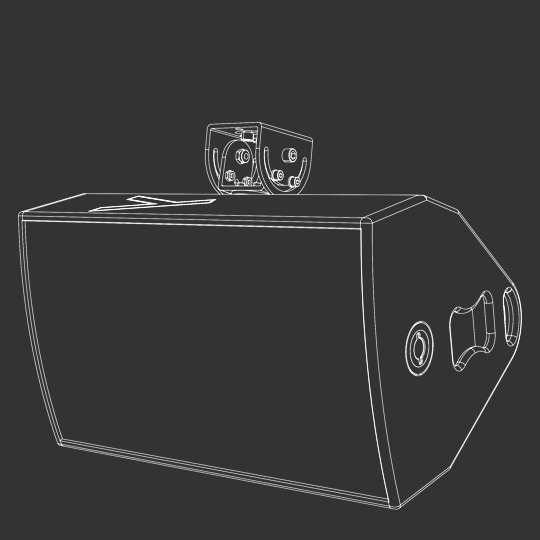

The I-Bracket is designed for simple and versatile suspension of a TX- or CX loudspeaker in the installation area. Depending on the type of loudspeaker and construction position, the speaker can be rigged either vertically/horizontally as well as inclinable, rotatable and even pivotable, or is attachable to walls or trussing constructions. In combination with the speaker’s Express Pin System the I-Bracket can be attached quickly and safely.
The I-Bracket ‘S’ can be combined to the following rigging options:
Measurements: 12 x 12 x 12 cm
Weight: 1.9 kg
Material: Steel with high quality rustproof coating
Colour: Black
The I-Bracket ‘L’ allows negotiating even extreme speaker angulations. The I-Bracket is designed for simple and versatile suspension of a TX- or CX-loudspeaker in the installation area. Depending on the type of loudspeaker and construction position, the speaker can be rigged either vertically/horizontally as well as inclinable, rotatable and even pivotable, or is attachable to walls or trussing constructions. In combination with the speaker’s Express Pin System the I-Bracket can be attached quickly and safely.
The I-Bracket ‘L’ can be combined to the following rigging options:
Measurements: 18 x 12 x 12 cm
Weight: 2.6 kg
Material: Steel with high qualitiy rustproof coating
Colour: Black

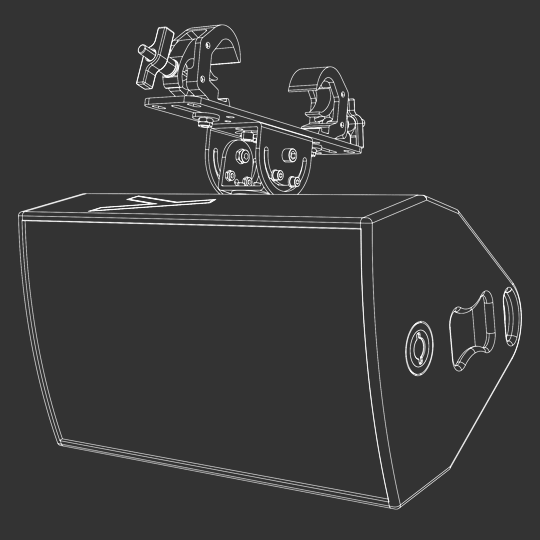

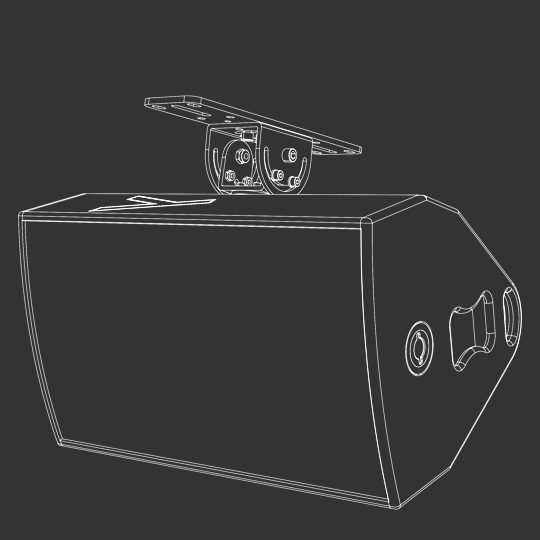

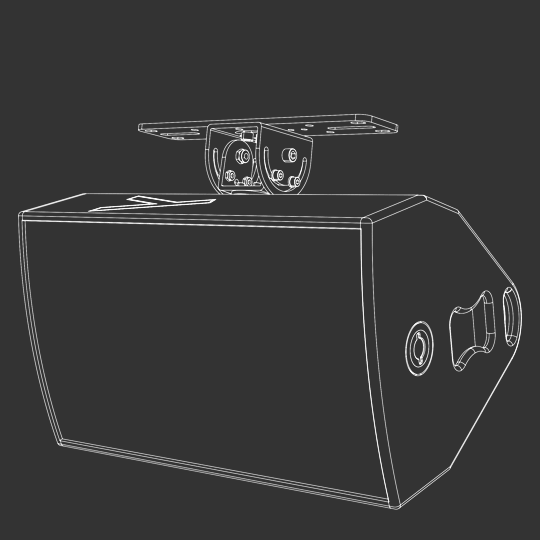

Combined with the rigging options of the TX and CX series, the Ceiling/Truss adaptor allows for either positioning in the truss centre or defined as well as extended ceiling attachment, if weight distribution on the truss or ceiling structure require it. The M12 Quick Clamps are adjustable to make the adaptor fit to all standard truss types. M8 Eye Bolts can be requested separately.
The Ceiling/Truss adaptor can be combined with the following rigging options:
• Halfbracket (M) for TX and CX series
• Halfbracket (I) for TX and CX series
• Vari Clamp
• I-Bracket ‘S’
• I-Bracket ‘L’
• M12 Quick Clamp 38/51
Measurements: 40 x 9 x 0.8 cm
Weight: 2.0 kg
Material: Steel with high quality rustproof coating
Colour: Black
Quick Clamp with M12 Screw admission for pipes of 38 to 51mm diameter.
The M12 Quick Clamp 38/51 can be combined with the following rigging options:
• Halfbracket (M) for TX and CX series
• Halfbracket (I) for TX and CX series
• Vari Clamp
• Ceiling/Truss Adaptor
Measurements: 11 x 8.5 x 5 cm
Weight: 0.8 Kg
Capacity (WLL): 250 kg
Material: Duraluminium
Colour: Black
The M10 Eye Bolt, in combination with the 6mm Safety Rope, provides security for the loudspeakers of the TX- and CX series in accordance with BGV C1. The Eye Bolt is screwed into the appropriate thread to secure the speaker against unexpected falls.
Type: similar to DIN 580, high-strength, forged
Winding: M10
Capacity(WLL): 400 kg
Material: Stainless Steel
Colour: Black
The Safety Rope, in combination with the M10 Eye Bolt and the 8mm Screw carabiner, provides security for all loudspeakers of the TX- and CX series in accordance with BGV C1 up to 35kg.
Length: 1m
Strength: 6mm
Material: Stainless steel
Colour: Black
Safety Rope for loudspeaker clusters in the TX series with single spot suspension in accordance with BGV C1 not exceeding 100 Kg.
Length: 1m
Strength: 10mm
Material: Stainless Steel (black)
Colour: Black
The high-strength carabiner is necessary for the suspension of individual or several loudspeakers as a link between the rigging options T-Bracket and TX-Clusterbracket with locking chains or between M10 Eye Bolt and 6mm Safety Rope.
Type: similar to DIN 56926, high-strength, forged
Diameter: 8mm
Capacity (WLL): 560 kg
Material: Stainless steel
Colour: Black

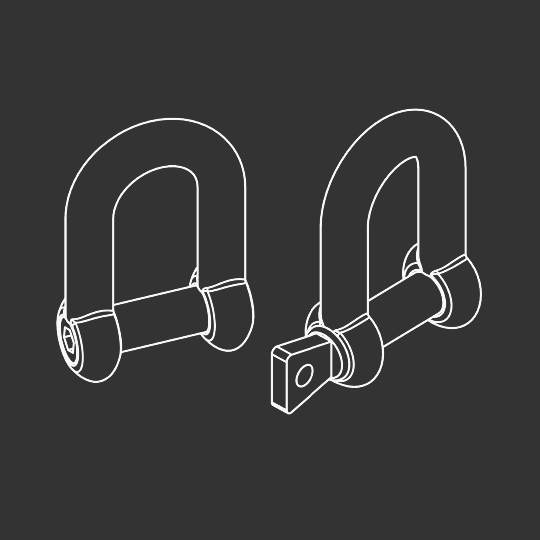

The shackle is required in the junction of cluster bracket and chain for the purpose of suspension and angulation of a rigged loudspeaker cluster.
Type: similar to DIN 82101, high strength, forged
Diameter: 8 mm
Capacity: (WLL): 720 kg
Material: Stainless Steel
Colour: Black

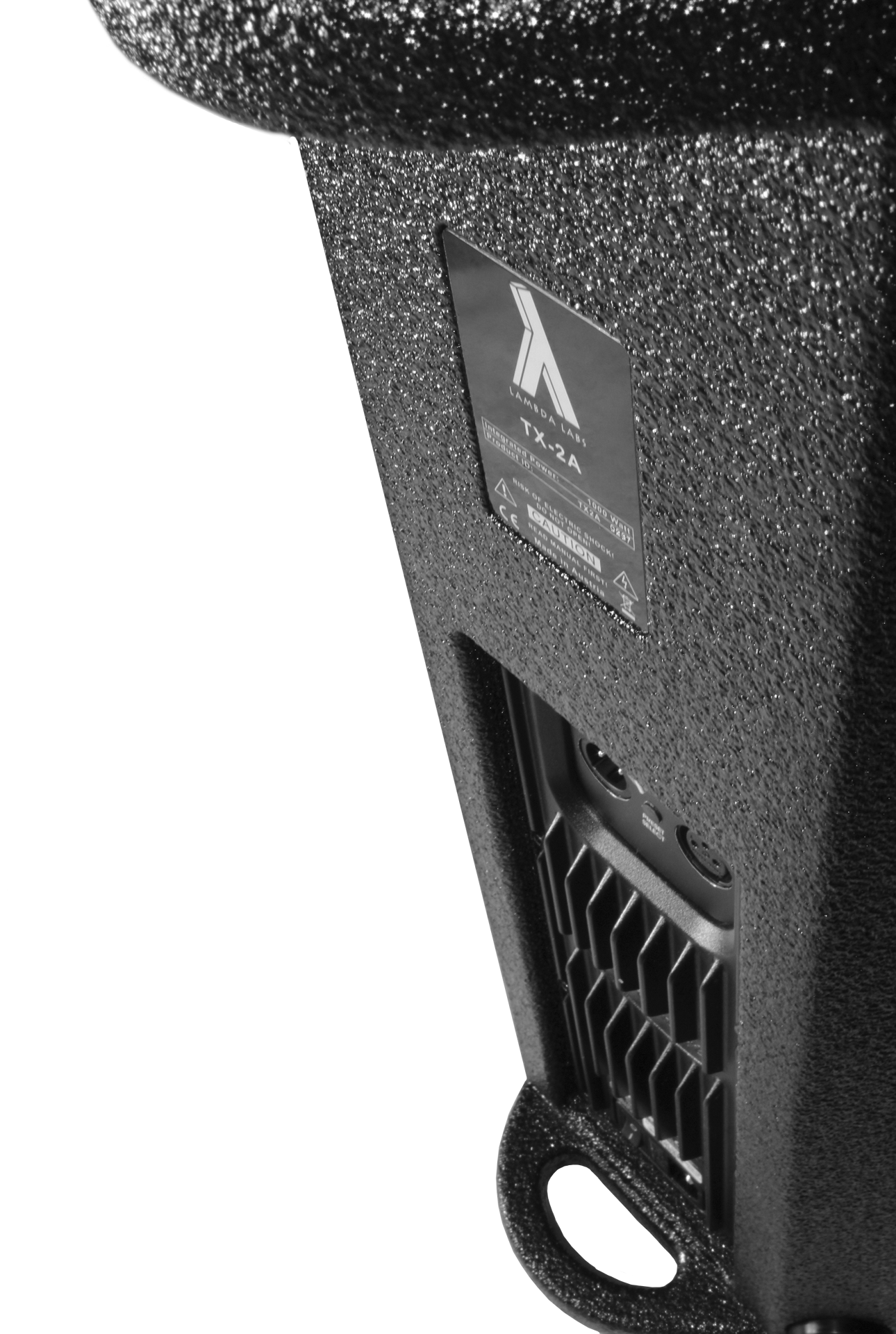

The cover plate ‘S’ can be screwed onto the active module’s control panel to prevent unwanted interference. A change in set up for instance necessitates an auxiliary.
Measurements: 11.6 x 10 x 0.2 cm
Weight: 0.1 kg
Material: Steel, powder coated
Colour: Black
Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate.
Weight: 2.5 kg
Height: 900–1380 mm
Max. load capacity: 35 kg
Colour: Black
Flange mounting: o 35 to 37 mm
Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate. The comfortable hand crank facilitates an easy and secure height adjustment.
Weight: 3.8 kg
Height: 920 to 1.520 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: o 35 to 37 mm
The moveable plastic splints create a vibration-free connection between loudspeaker and stand. Easy ring lock mechanism. Height adjustment using a non-scratching locking screw and additional safety pin for a secure hold.
Weight: 5 kg
Height: 1.370 to 2.100 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: o 35 to 37 mm
The plastic splint adapter creates a vibration-free connection between loudspeaker and stand. Easy ring lock mechanism. The comfortable hand crank facilitates an easy and secure height adjustment.
Weight: 9.3 kg
Height: 1.530 to 2.350 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: o 35 to 37 mm
