Lambda Labs TX-3A datasheet

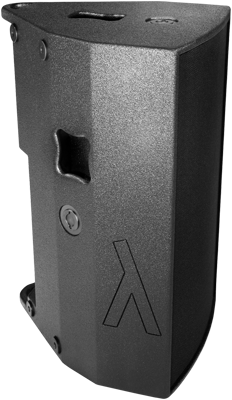

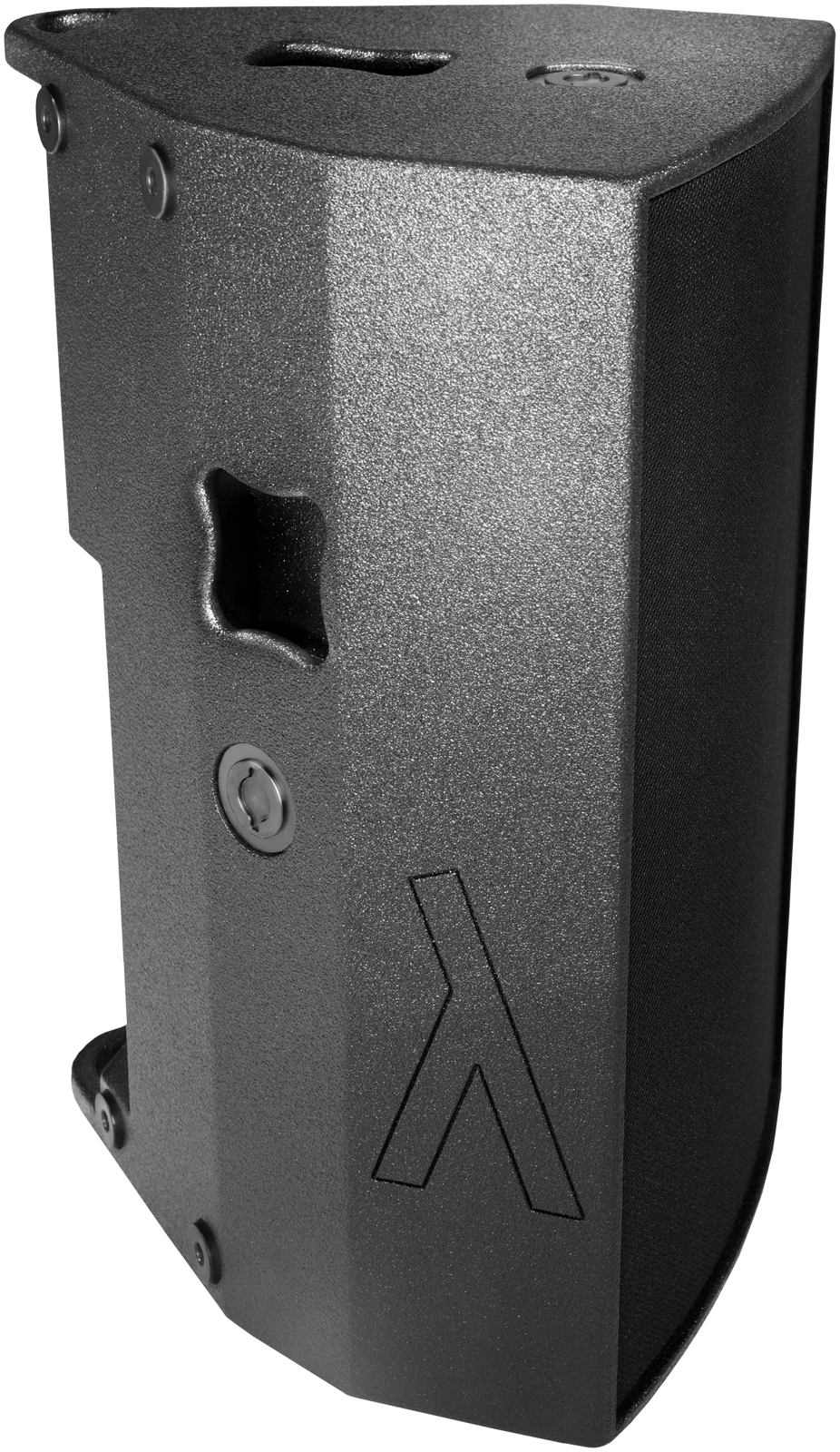

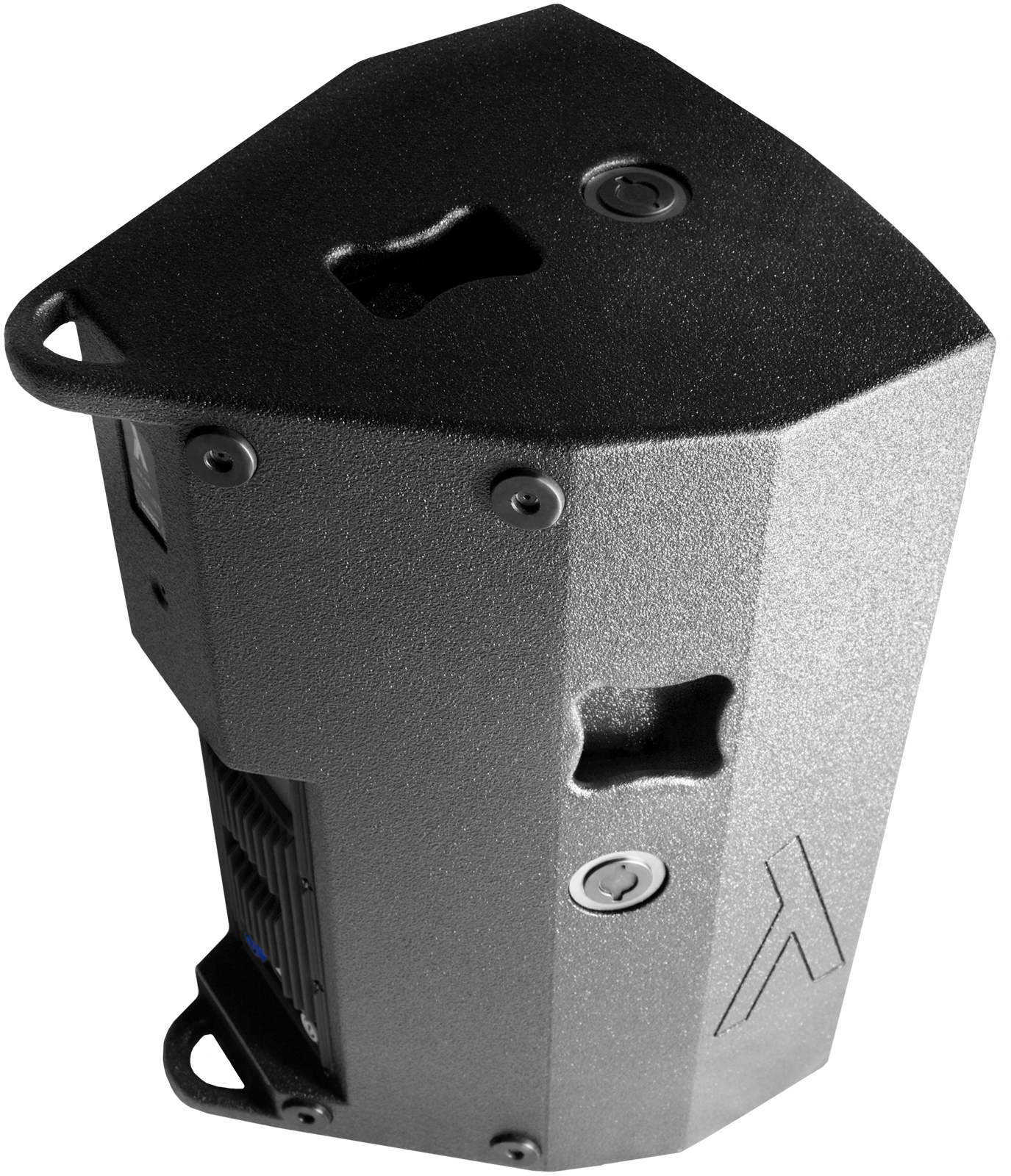

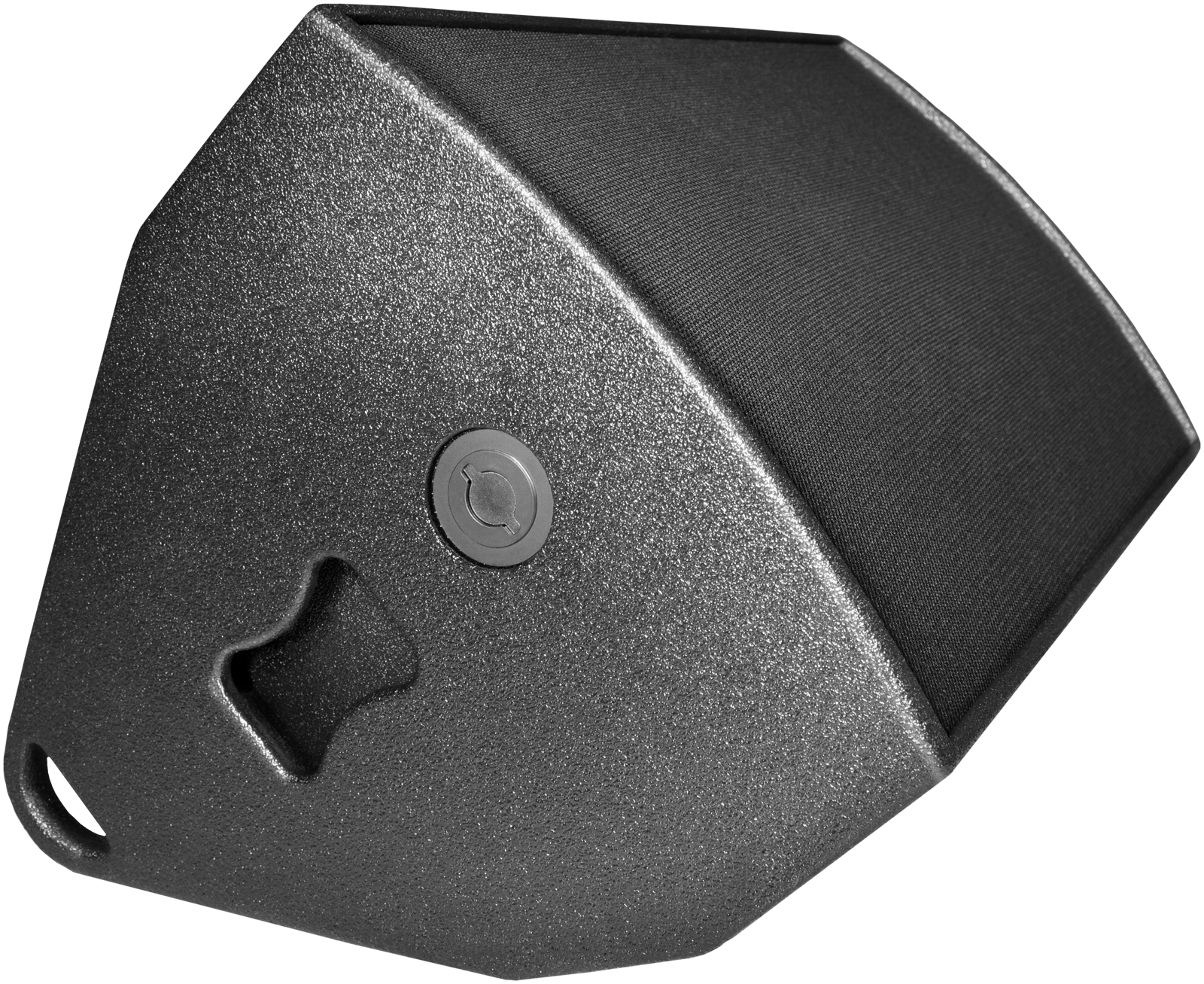

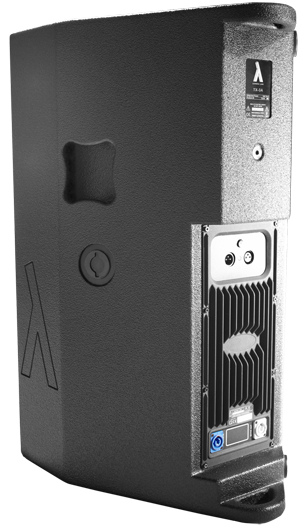

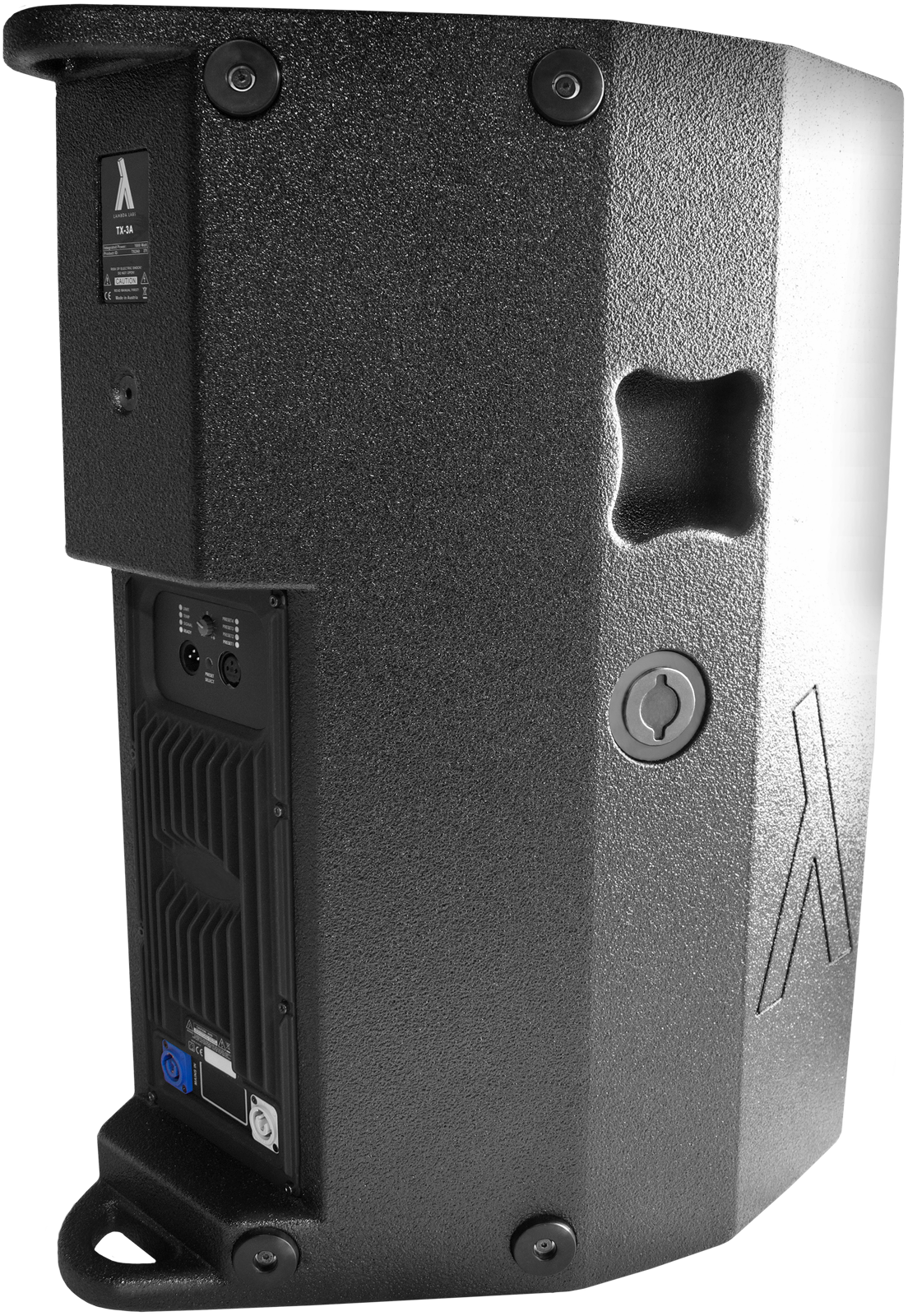

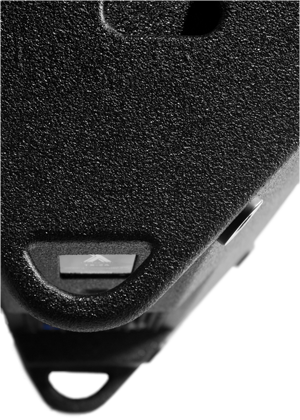

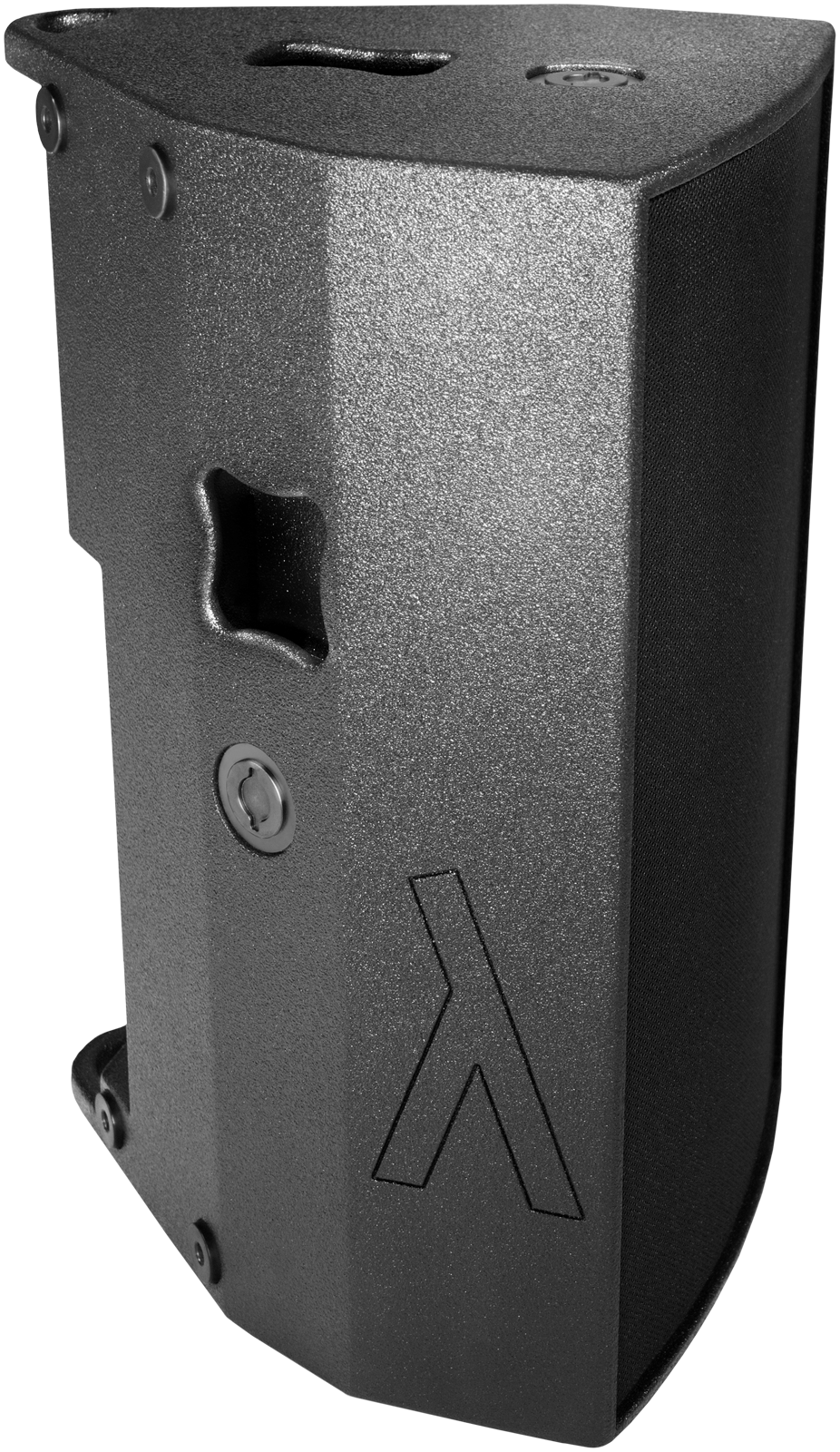

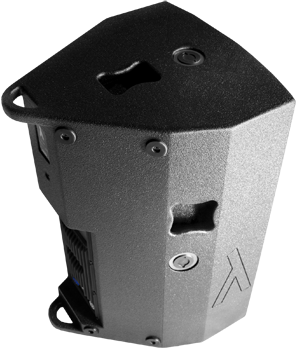

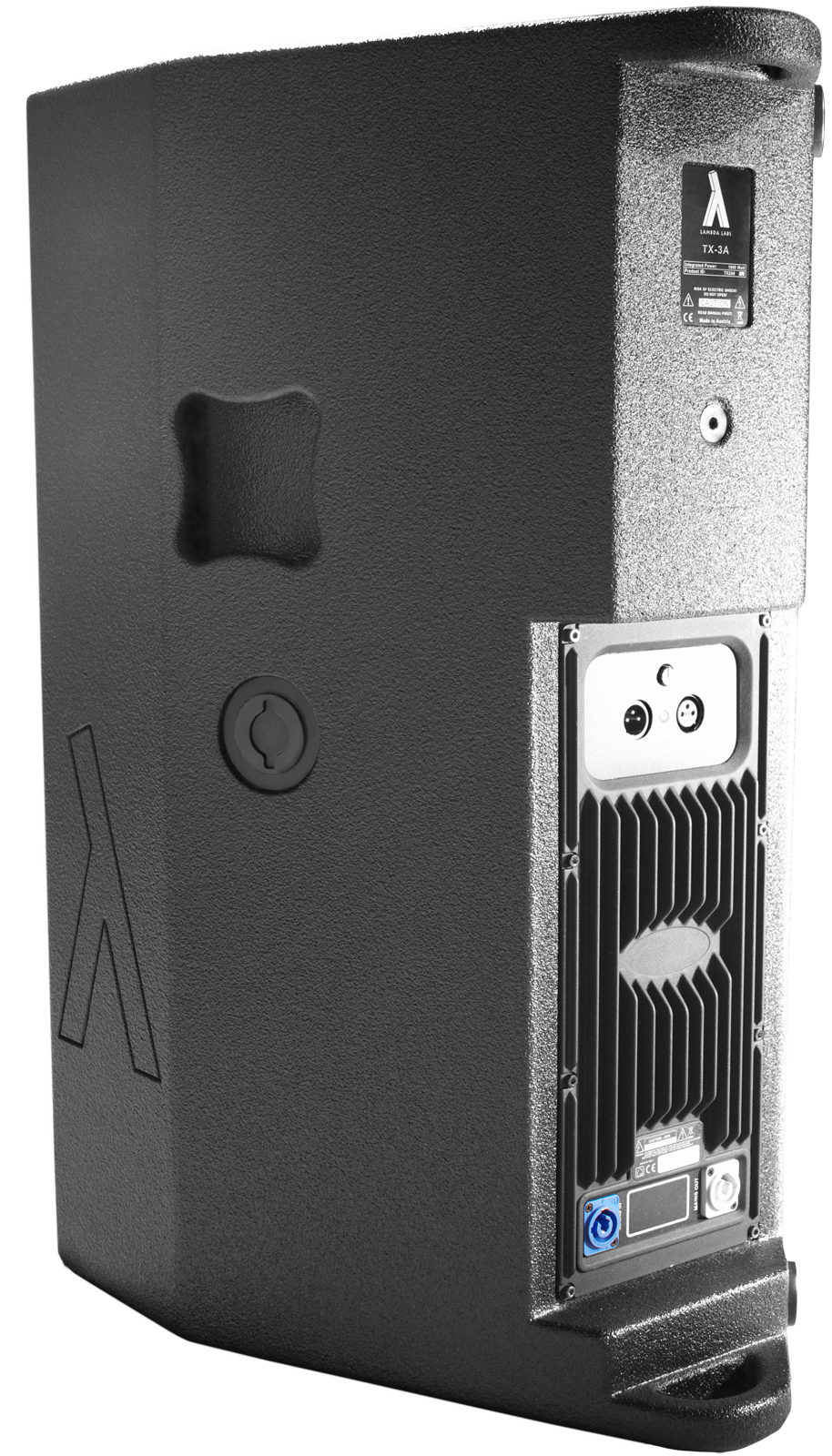

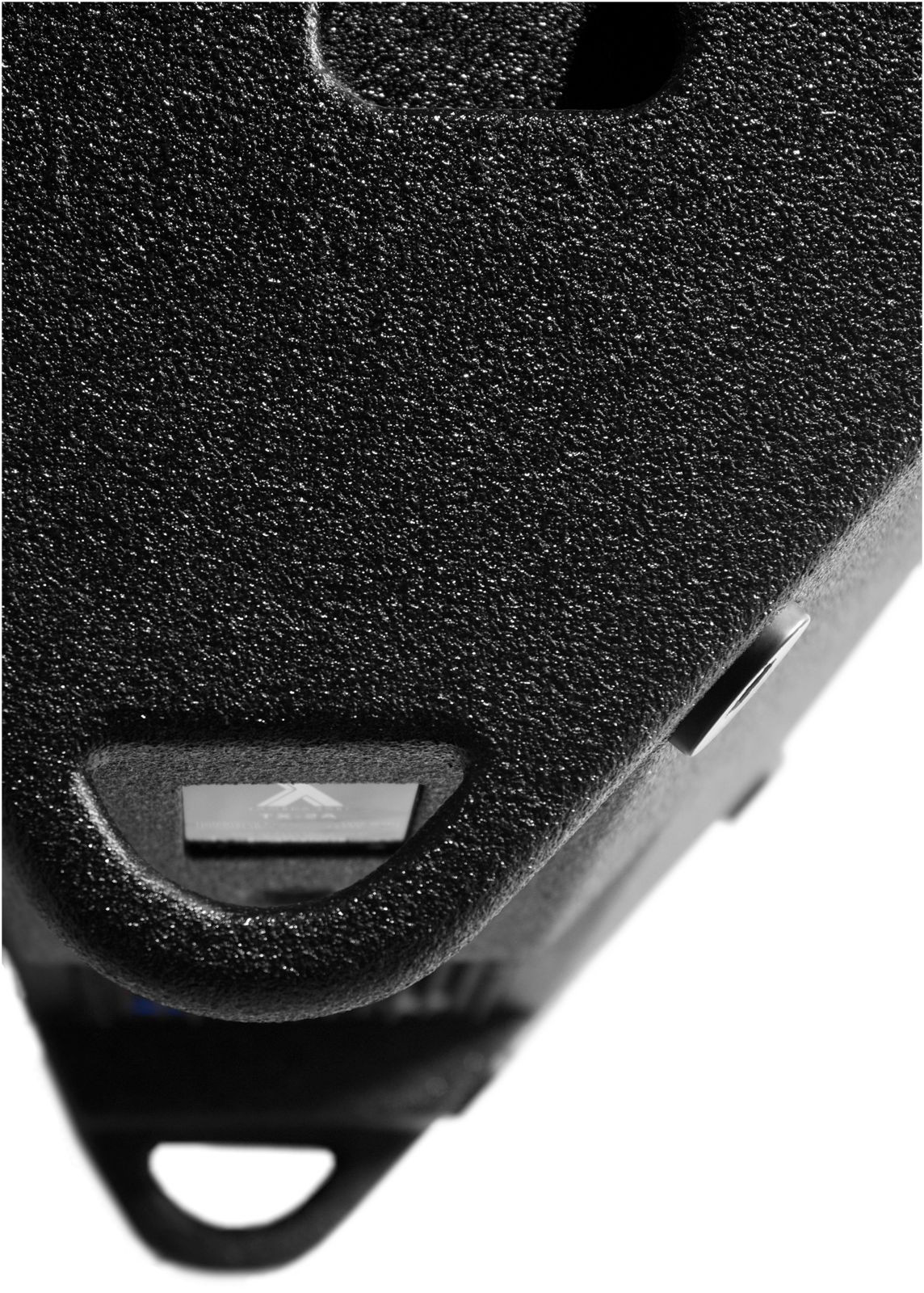

TX-3A images

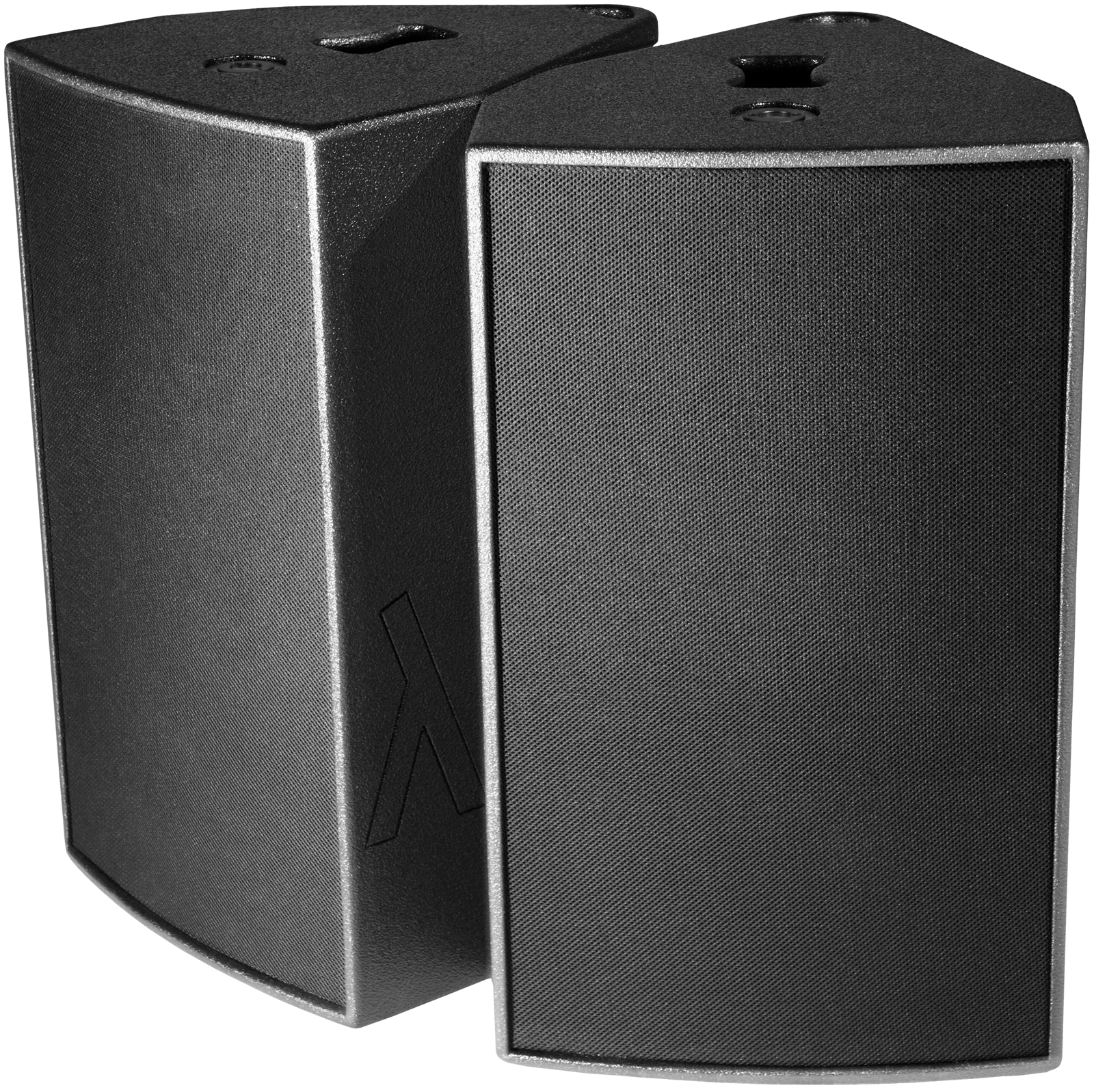

TX-3A description

TX-3A – Calibre 15 inch

Perhaps you’re also tired of toting around heavy gear? Then, how about taking a nut to crack a seldgehammer instead of the other way around? Allow us to recommend the calibre 15 inch or more precisely the TX-3A’s calibre 15 inch. There may be no need yet for a gun license, true. However, its lightness, SPL capability and dead-on precision do hit the bull’s eye.

Just don’t be afraid! Feel free to play your most audiophile track. At once, the threeway speaker TX-3A unfolds its entire arsenal of performance and almost limitless dynamic range. Sound and taste are famously open to dispute, but the continuous reactions of delight to our demonstrations of the TX series, particularly the TX-3A, confirm our extended and meticulous development work. And whenever this speakers 3D depth is compared to illustrious hifi-products, well, that makes us even happier. Coaxial high-mid frequency unit, stands for a brilliant and transparent sound reproduction allowing at the same time for the highest linearity and a faithfully detailed stereo imaging.

Sometimes we are even forced to pull some plugs during a demo to prove to the righteously skeptical listener, that there are indeed only two of the four TX-3A playing right now, or that subwoofers ready for demonstration are actually disconnected. There is an obvious reason for this: Given the compact dimensions of 29.2 x 17.4 x 19.3 inch and an incredibly light weight of 59.5 lbs, a first glance at the TX-3A could very well lead one to underestimate the largest loudspeaker of the TX series, rather than expecting such a tremendous output and low frequency reproduction. The cause is complex. The 15" long excursion driver with enormous power handling does not need to rely on additional sub bass reinforcement to deliver the lowest frequencies while having unique impulse response. This unit alone is driven by a 1600 Watt RMS amplifier module. Finally, two additional 200 Watt RMS amplifiers in the high and mid frequency range turns the TX-3A into a genuine tri-amp loudspeaker.

To achieve the high resolution and precise acoustic pattern, the low frequency speaker crosses over at as low as 700Hz from where the coaxial True Point Source high-mid frequency unit’s 3.5" and 1.75" coils takes over the job. A crossover of such low frequency results in an exceptionally smooth and well defined radiation pattern, since beaming effects and partial vibrations of the 15" chassis are starting far above its transmission range. The elliptical Constant Directivity horn gives the TX-3A its extremely even directivity down to 1kHz with a nominal coverage angle of 50° x 50°, making its use possible even under the most difficult acoustic conditions. Using FIR filters and Dual Range Converters tops off the TX-3A’s total package.

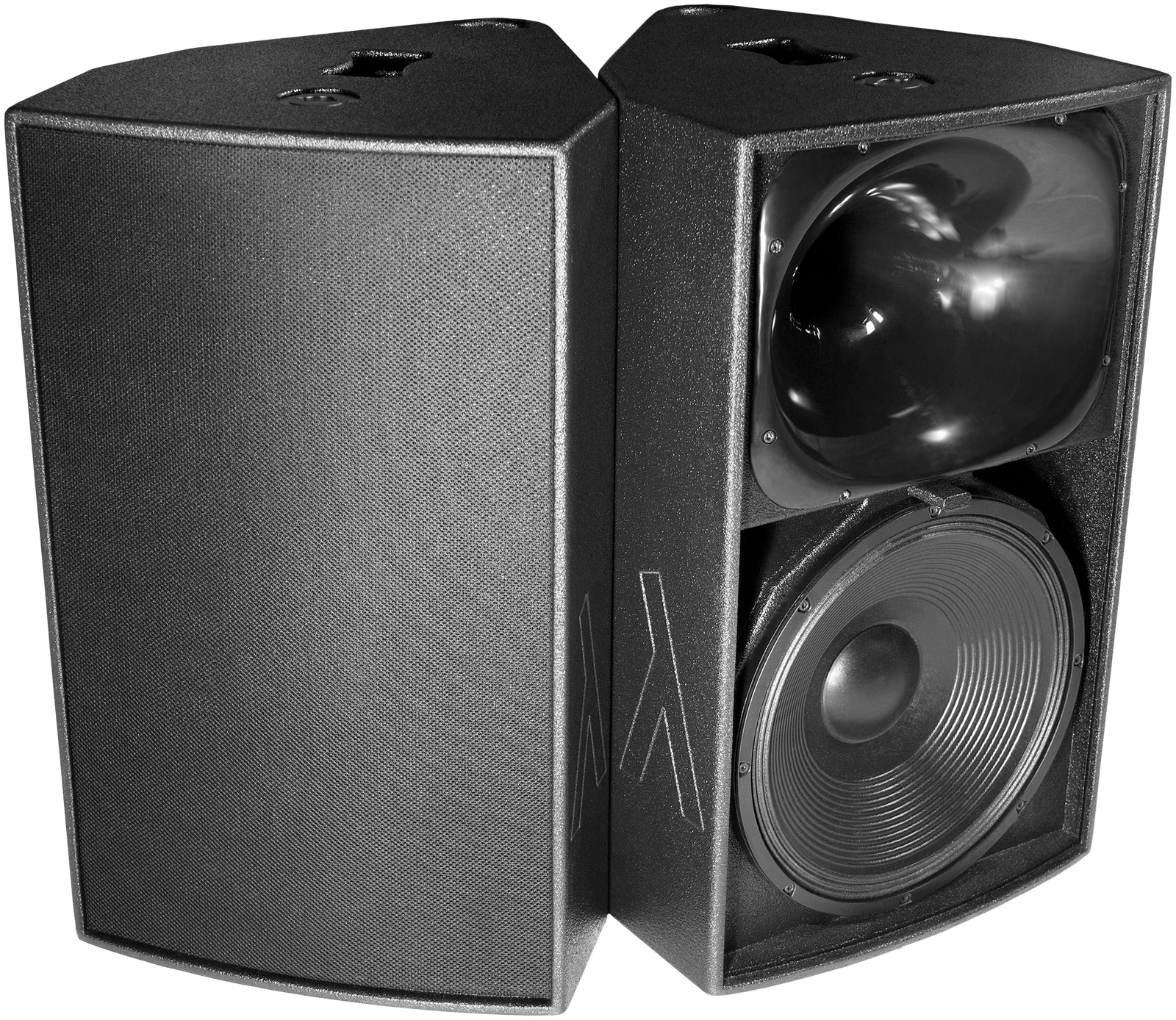

Our constant goal, uniting the greatest possible versatility in one product, is as much as possible realized in this fullrange speaker as it is the case in all of the loudspeakers in the TX series. Consistency in the Coherent Wavefront Design and the straightforward rigging allow for the TX-3A to be combined into a horizontal array in almost no time, and whenever things need to be more down to earth, it will serve just as well as a high end monitor in the near and farfield. As you can see, the TX-3A is capable of quite a lot. Would you even sleep better if you kept it underneath your pillow? Well, perhaps...

TX-3A downloads

TX-3A technical data

System
High power 3-way fullrange top

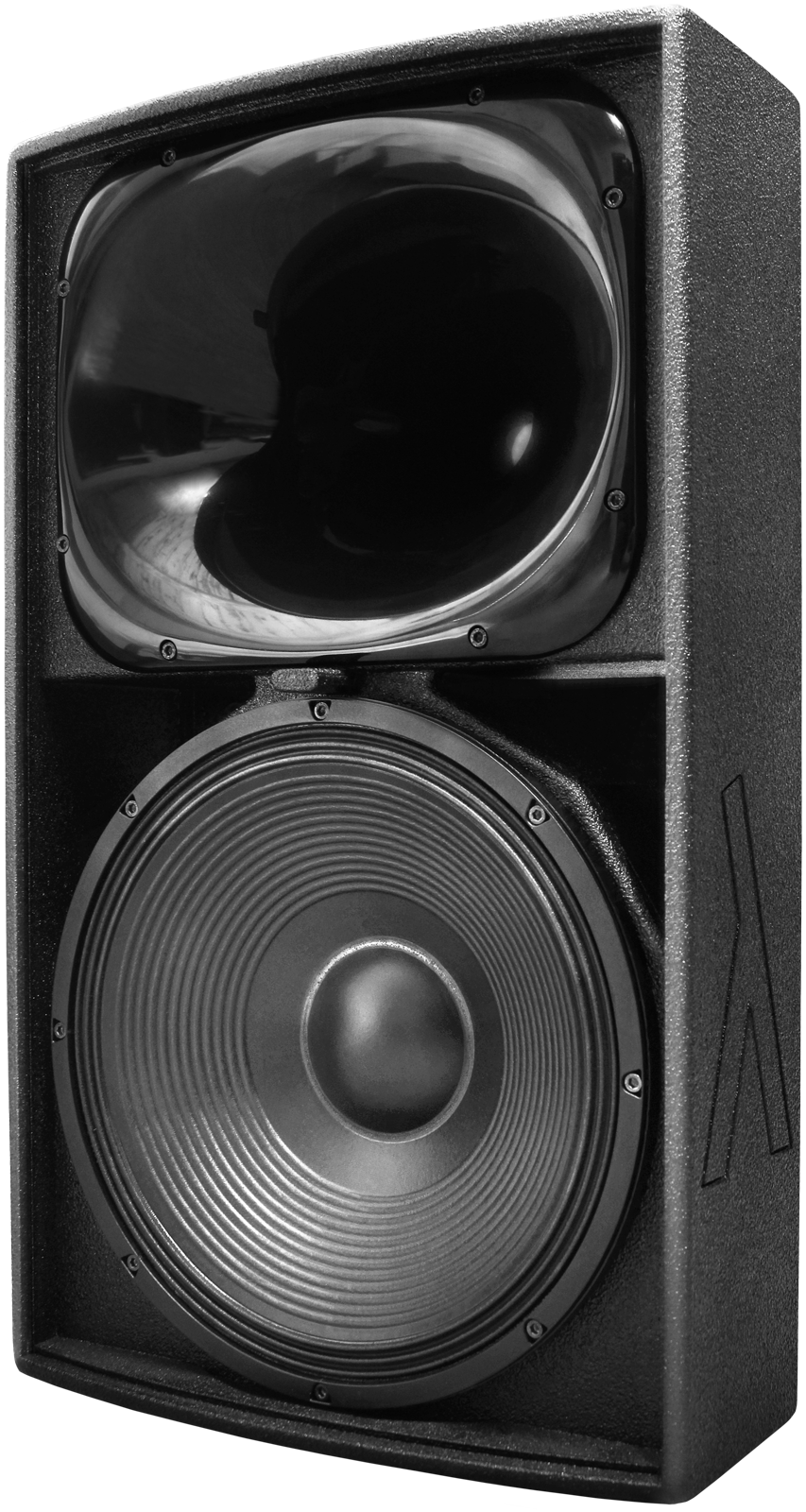

Configuration

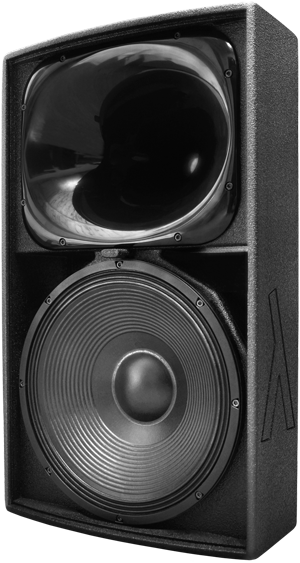

1 x 15" high excursion 4" VC driver
1 x True Coaxial Point Source
HF-compression driver with 3.5" VC and 1.75" VC polyester diaphragm
Electronics
1600W + 200W + 200W RMS amping power
Signal Processor
24bit ADC/DAC, 48kHz sample rate
Frequency Respose
60–22000Hz (+/- 3dB)
Coverage Angle
50° horizontal x 50° vertical

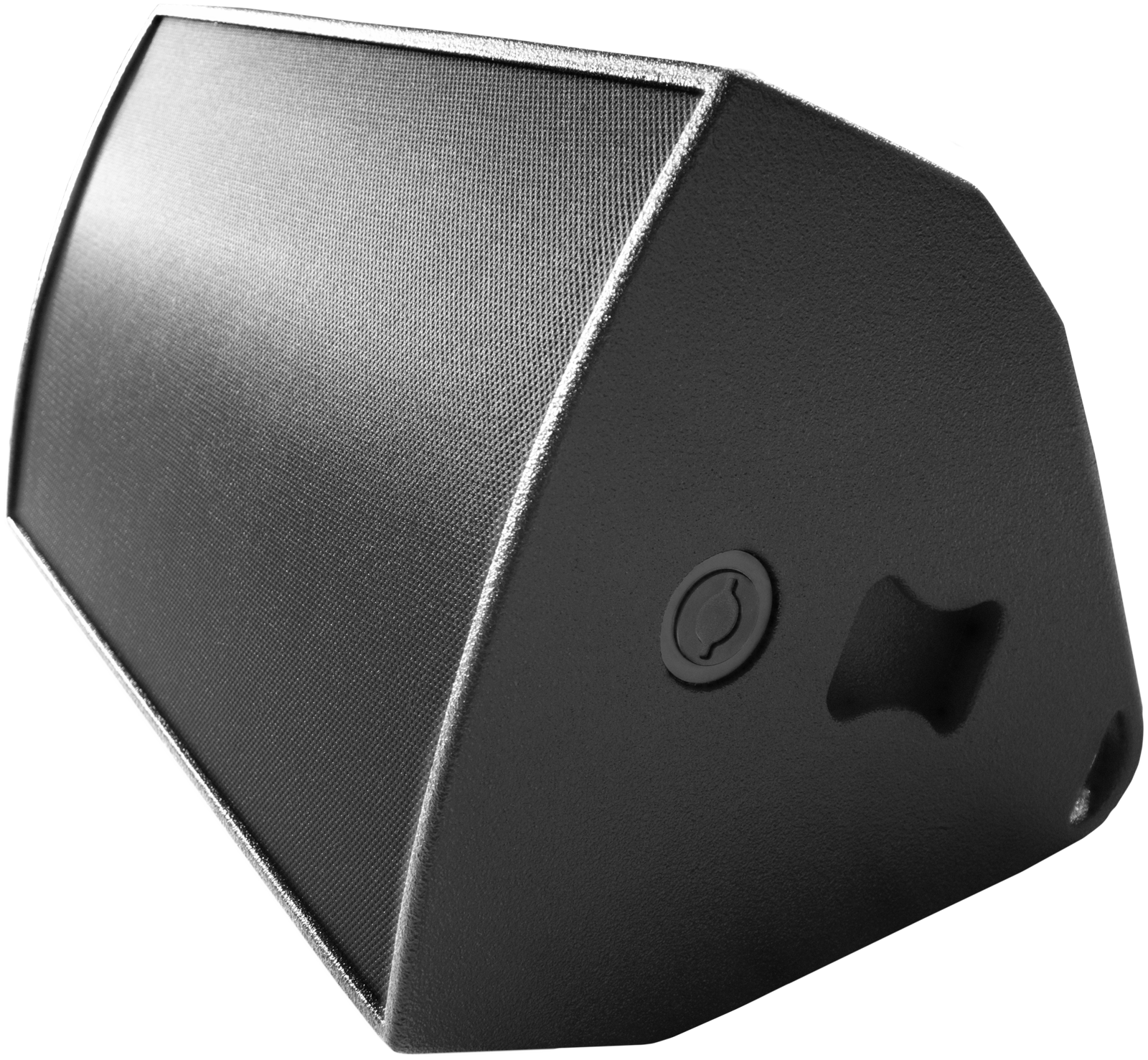

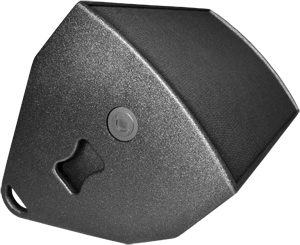

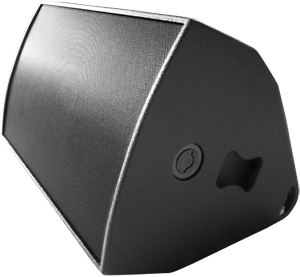

Monitor Angle
46° / 66°
Crossover Frequency
700Hz / 6300Hz
Sensitivity
98dB / 1W / 1m

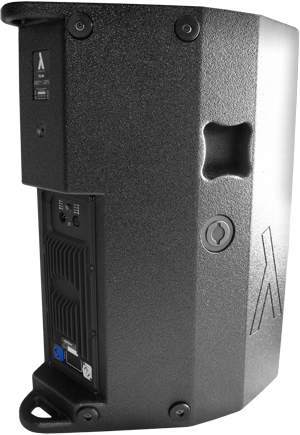

Connection
XLR in / out, Powercon in / out
Enclosure
Rigid braced construction of special 12mm lightweight-wood
Finish
High density polyurethane-coating
Black
Front Cover
Weather-resistant front fabric on coated 1.5mm perforated steel



Height
29.2" / 741mm
Width
17.4" / 442mm
Depth
19.3" / 490mm
Weight
27kg

TX-3A accessories

EPS – Express Pin System – Mobile (M) Version

Express Pin enables a quick and safe Plug & Play connection for all rigging options at the EPS point of the respective loudspeaker.

The EPS Mobile Version differs from the Installation Version in aspects of safety, tool free usage, size and weight. Exchange among the EPS versions at the rigging spots is possible at all times.

Delivery of the EPS Mobile Version includes the following pre-set rigging options:

Halfbracket – Mobile (M) Version for TX Series / CX Series

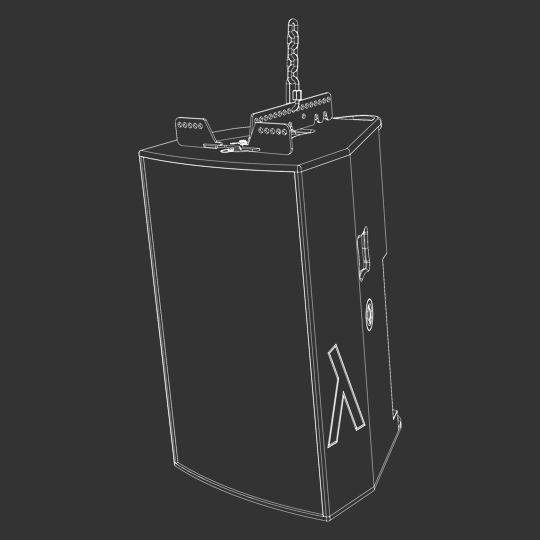

T-Bracket – Mobile (M) Version

Material: Stainless steel
Colour: Black

EPS – Express Pin System – Installation (I) Version

Express Pin enables quick and safe Plug & Play connection for all rigging options at the EPS point of the respective loudspeaker.

The EPS Installation version differs from the Mobile version in aspects of safety such as obligatory tool usage, size and weight. Changing among the EPS versions at the rigging spots is possible at all times.

Delivery of the EPS Installation version includes the following preset rigging options:


Halfbracket – Installation (I) Version TX Series / CX Series
T-Bracket – Installation (I) Version
I-Bracket ‘S’
I-Bracket ‘L’

Material: Stainless steel
Colour: Black

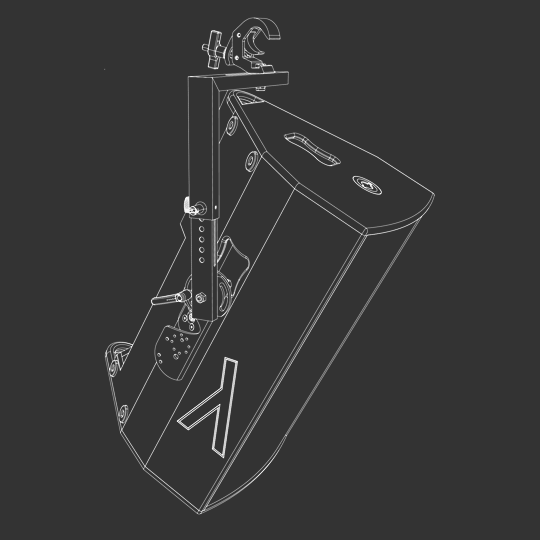

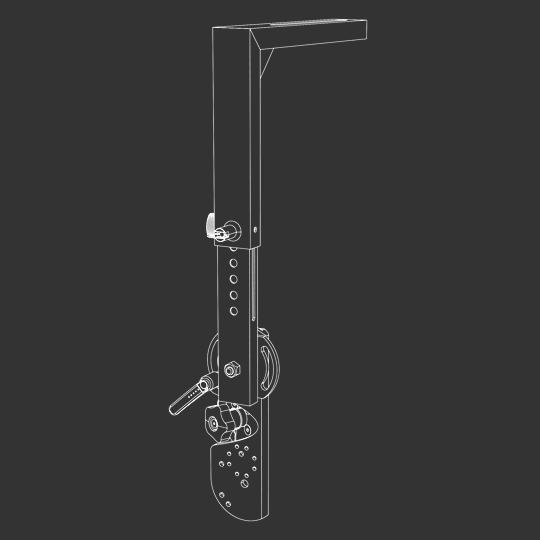

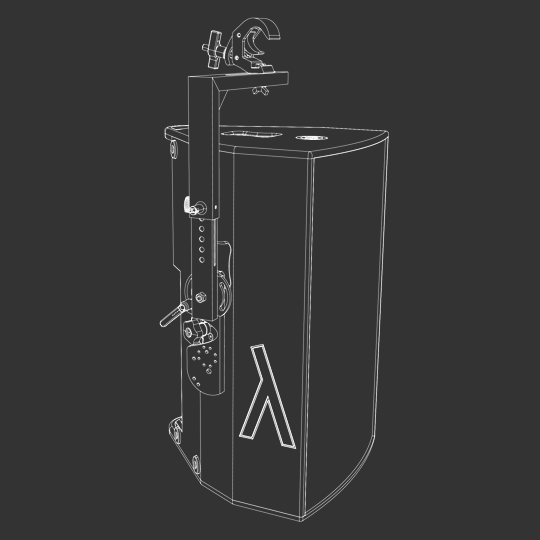

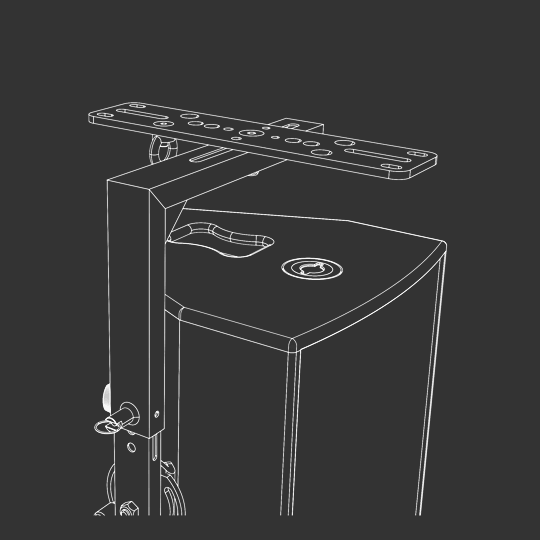

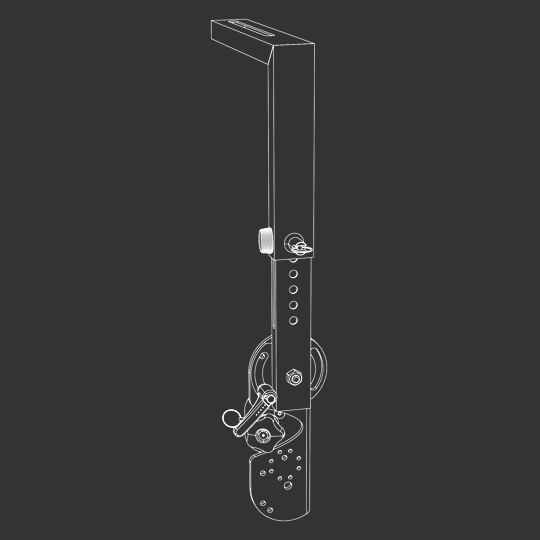

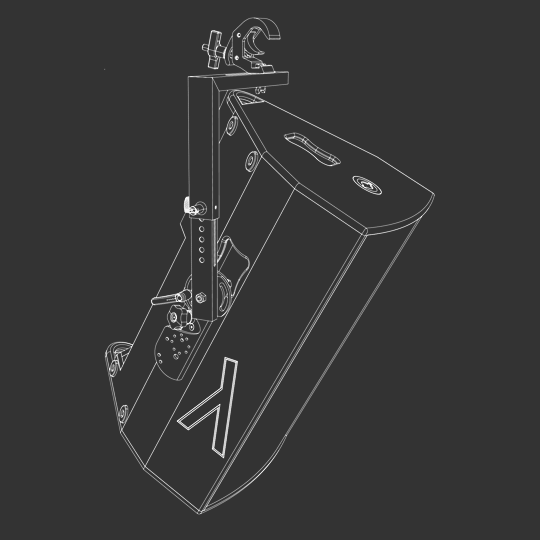

TX-Halfbracket – Mobile (M) Version for TX Series

The halfbracket allows for easy rotation and tilting of a TX - speaker’s standard suspension directly onto the truss or a stand. In combination with the speaker’s Express Pin System it can be mounted quickly and safely. The telescopic halfbracket can be adjusted to fit all speakers in the TX series. The symmetrical halfbracket can be mounted on both sides of the speaker and allows overhead mounting as well.

The TX-halfbracket (M) for the TX series can be combined with the following rigging options:

M12 Quick Clamp 38/51
Stand Adaptor

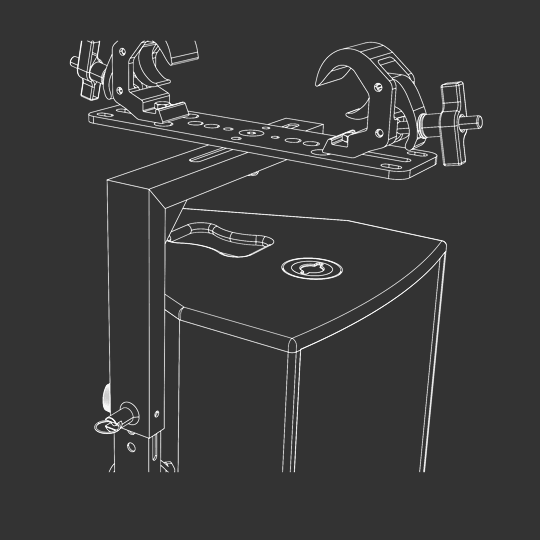

Ceiling/Truss adaptor for positioning in the truss centre

Measurements: 52.5–63 x 33 x 5 cm
Weight: 2.9 kg
Material: Steel with high quality rustproof coating
Colour: Black

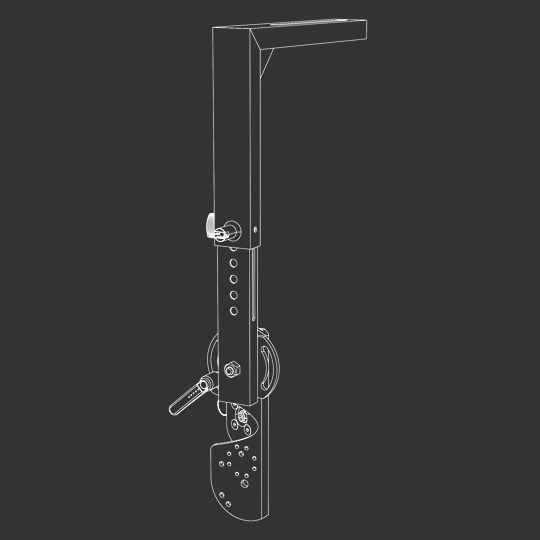

TX-Halfbracket – Installation (I) Version for TX series

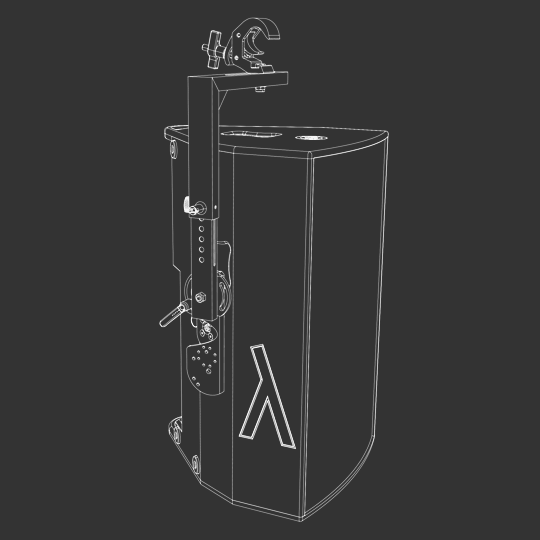

The halfbracket allows for easy rotation and tilting of a TX-speaker’s standard suspension directly onto either the truss, wallbracket or the ceiling of an installation. In Combination with the speaker’s Express Pin System it can be mounted quickly and safely. The telescopic halfbracket can be adjusted to fit all speakers in the TX series. The symmetrical halfbracket can be mounted on both sides of the speaker and allows overhead mounting as well.

The TX-halfbracket (I) for the TX series can be combined with the following rigging options:

M12 Quick Clamp 38/51
Stand Adaptor
Ceiling/Truss adaptor for ceiling installation with extended attachment area

Measurements: 52.5-63 x 33 x 5 cm
Weight: 2.8 kg
Material: Steel with high quality rustproof coating
Colour: Black

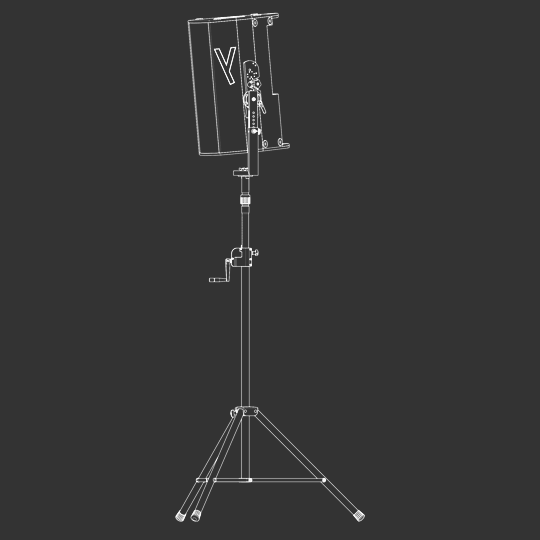

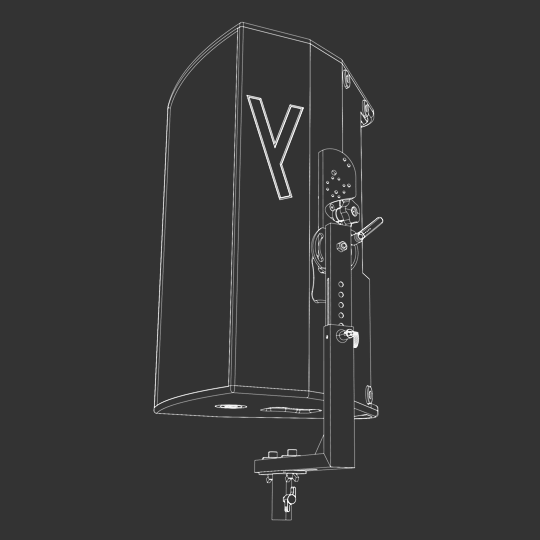

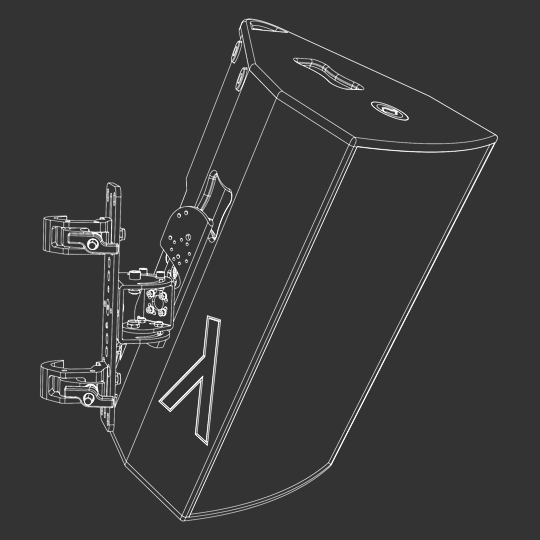

Stand Adaptor

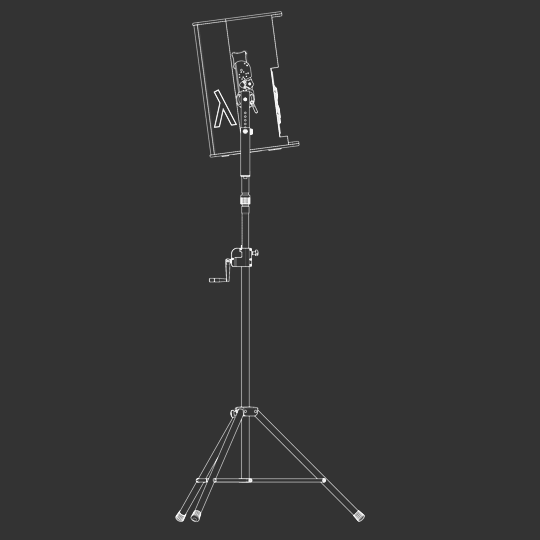

The Stand Adaptor extends the halfbrackets of the TX- and CX series for rotating and tilting stand admission.

The Stand Adaptor can be combined with the following halfbrackets of the TX and CX series:

Halfbracket – Mobile (M) Version for TX series / CX series
Halfbracket – Installation (I) Version for TX series / CX series

The Stand Adaptor can be combined with the following stands and distance rods:

Distance rod with plastic splints
Distance rod with crank handle and plastic splints
Speaker stand with plastic splints
Speaker stand with crank handle and plastic splints

Measurements: 9,5 x 12 x 5 cm, Inner pipe diameter: 36mm
Weight: 0.4 kg
Material: Steel with high quality rustproof coating
Colour: Black

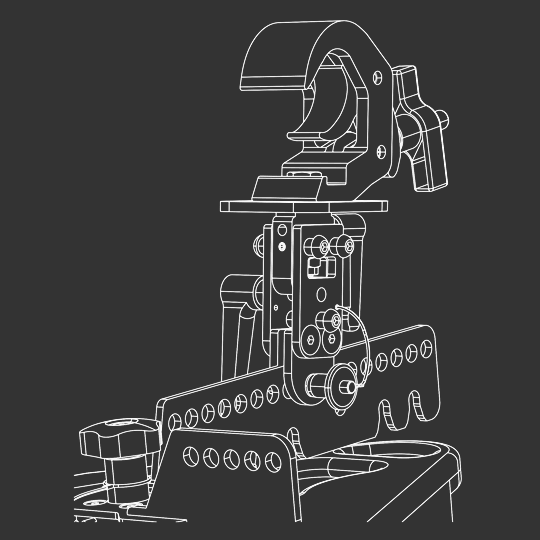

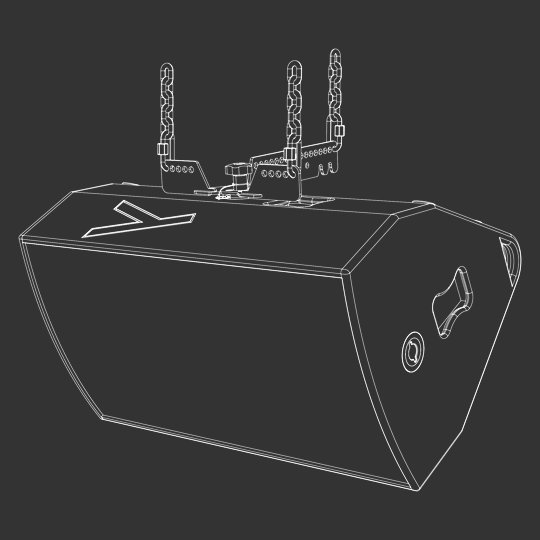

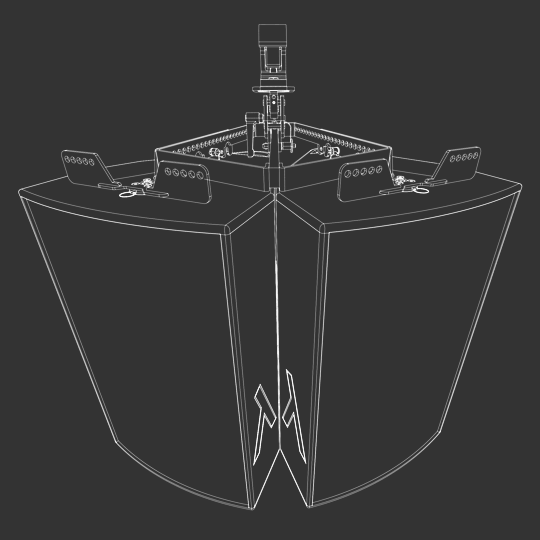

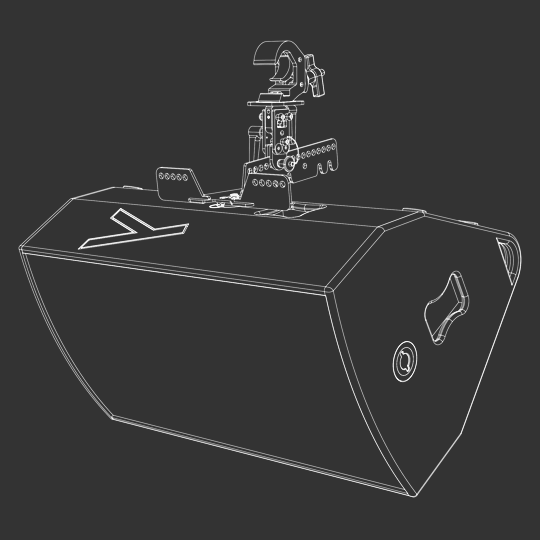

T-Bracket – Mobile (M) Version

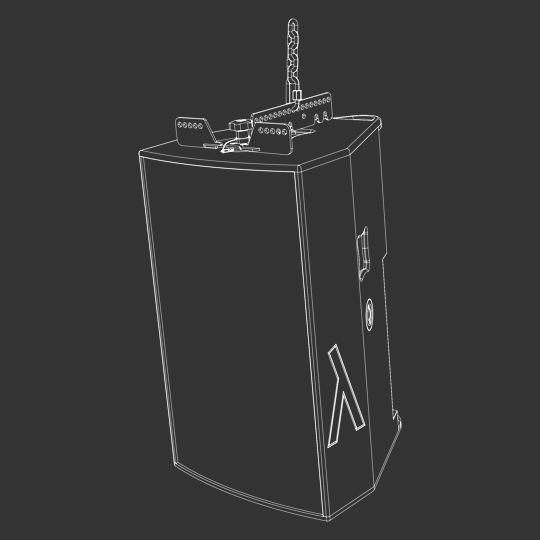

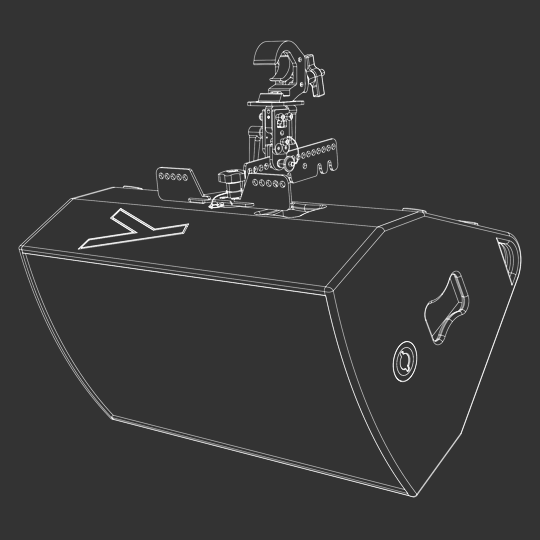

The uniform T-Bracket allows for easy vertical or horizontal suspension of TX- or CX loudspeaker. Depending on the type of loudspeaker and position of the construction, the speaker can be either rigged to one or more suspension points, or in all varieties to the rotatable and lockable Vari Clamp. In combination with the speaker’s Express Pin System the T-Bracket can be attached quickly and safely.

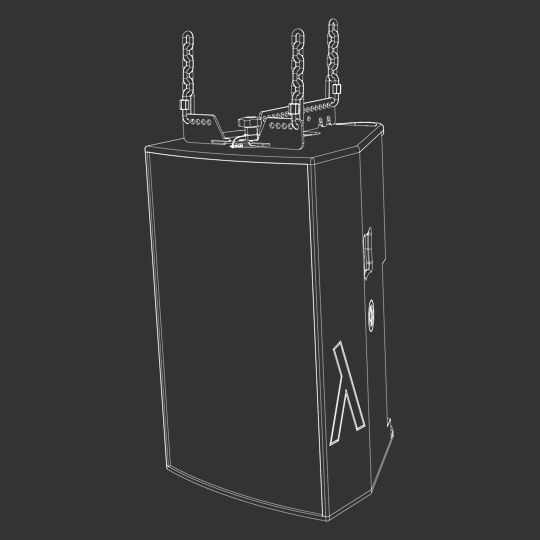

Additionally, the use of the T-Bracket and one or more cluster brackets, allows for up to three TX loudspeakers to be merged into a speakercluster and if required may be rigged to a single chain or the Vari Clamp.

The T-Bracket - Mobile (M) Version can be combined to the following rigging options:

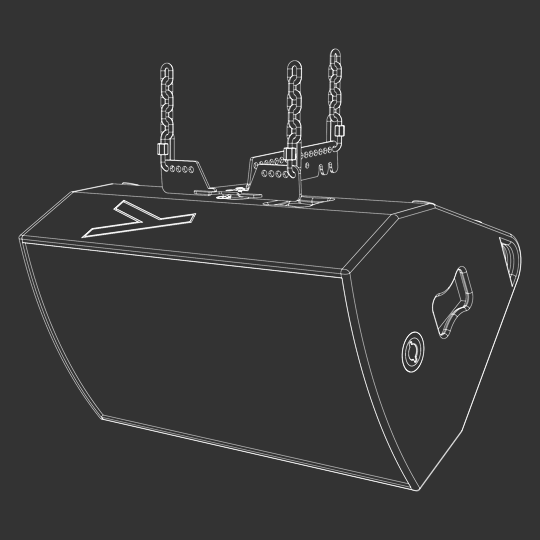

Screw Carabiner 8mm for T-Bracket and TX- Clustercompound
Cluster Bracket for TX-3
Vari Clamp

Measurements: 34 x 31 x 6 cm
Weight: 1.7 kg
Material: Steel with high quality rustproof coating
Colour: Black

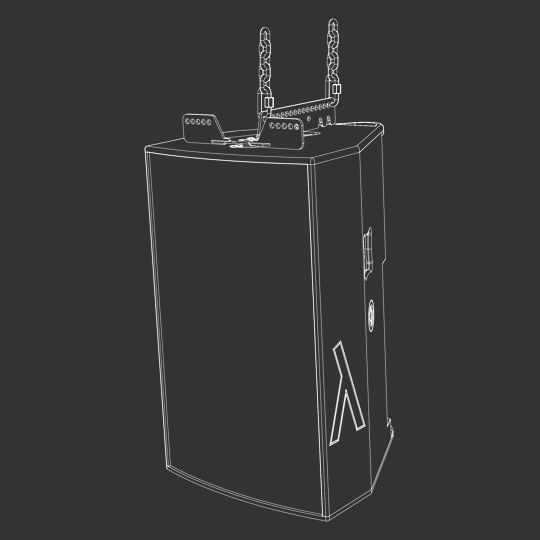

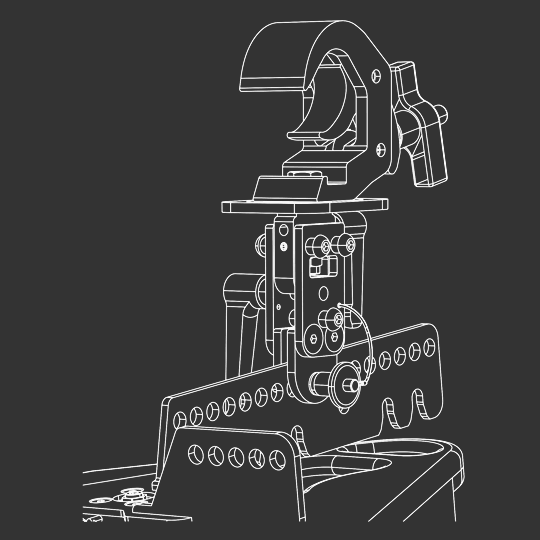

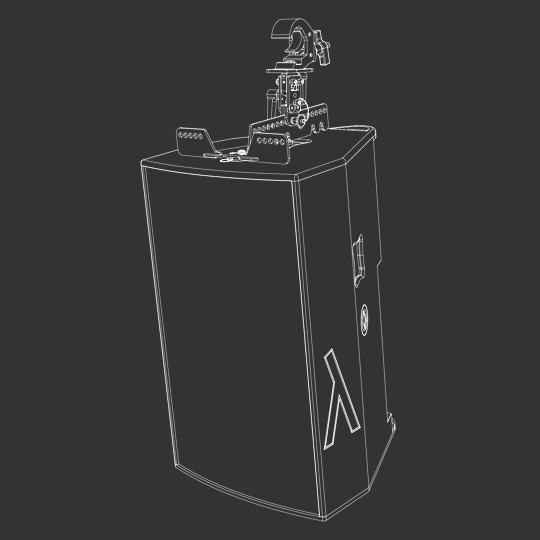

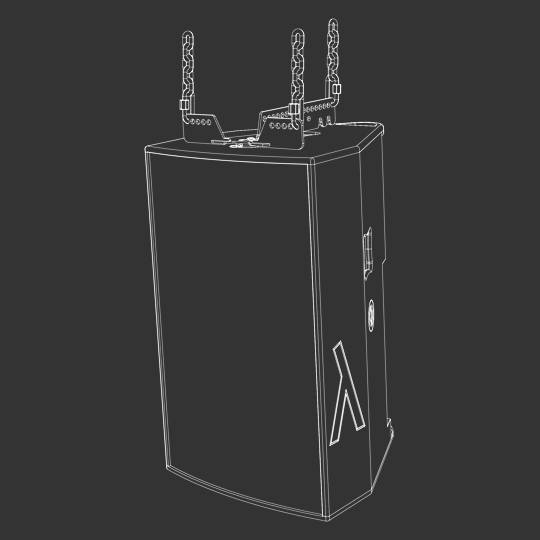

T-Bügel – Installations (I) Version

The uniform T-Bracket allows for simple vertical or horizontal suspension of TX- or CX-loudspeaker. Depending on the type of loudspeaker and position of the construction, the speaker can be either rigged to one or more suspension points, or in all varieties to the rotatable and lockable Vari Clamp. In combination with the speaker’s Express Pin System the T-Bracket can be attached quickly and safely.

Additionally, the use of the T-Bracket and one or more cluster brackets, allows for up to three TX loudspeakers to be merged into a speakercluster and if required may be rigged to a single chain or the Vari Clamp.

The T-Bracket - Mobile (M) Version can be combined to the following rigging options:

Screw Carabiner 8mm for T-Bracket and TX- Clustercompound
Cluster Bracket for TX-3
Vari Clamp
Ceiling/Truss adaptor for ceiling installation with a defined attachment area

Measurements: 34 x 31 x 6 cm
Weight: 1.6 kg
Material: Steel with high quality rustproof coating
Colour: Black

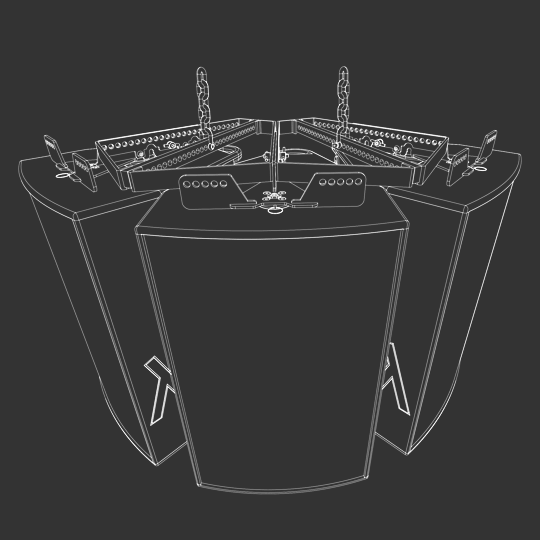

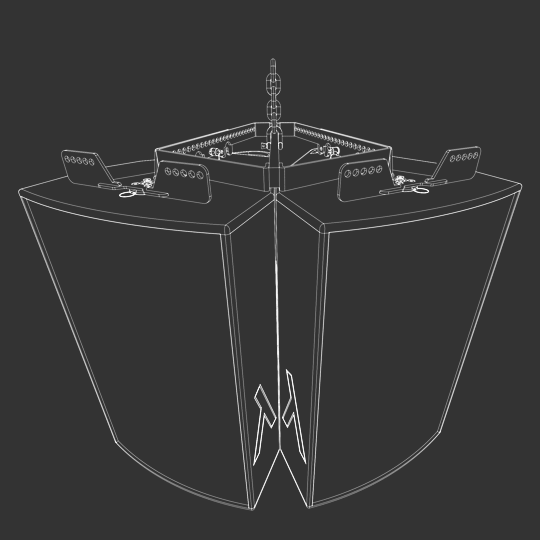

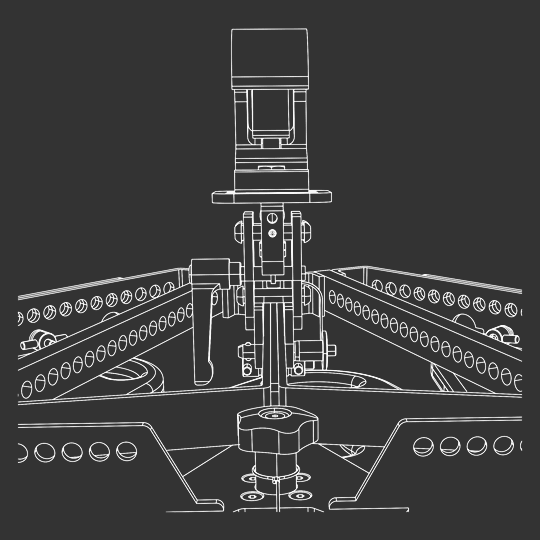

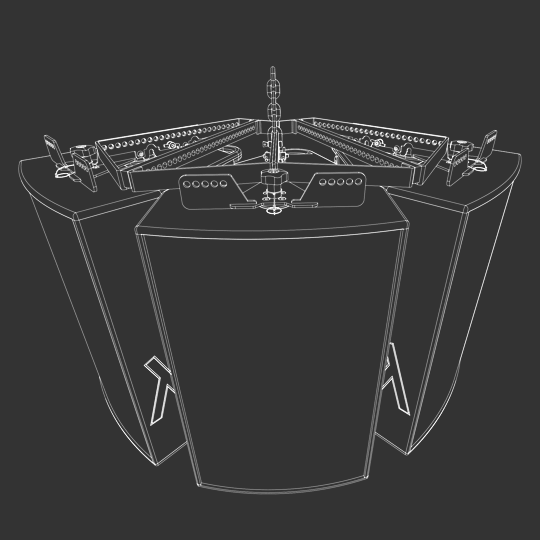

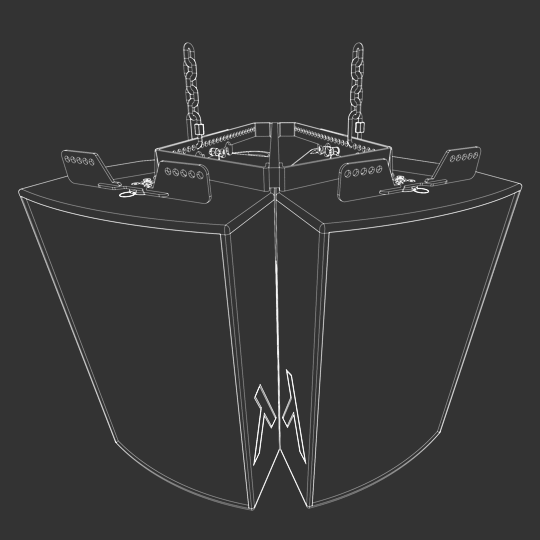

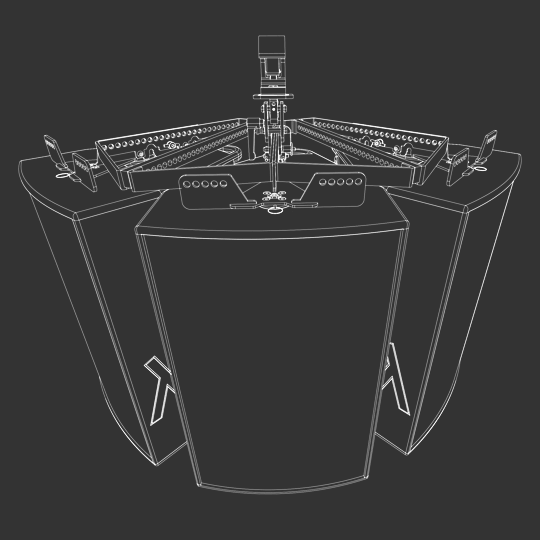

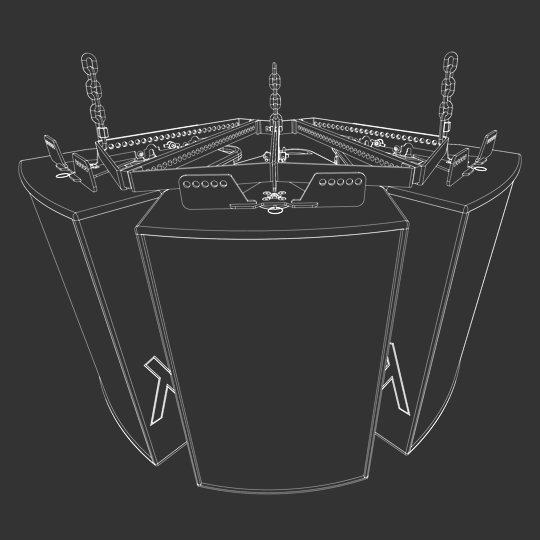

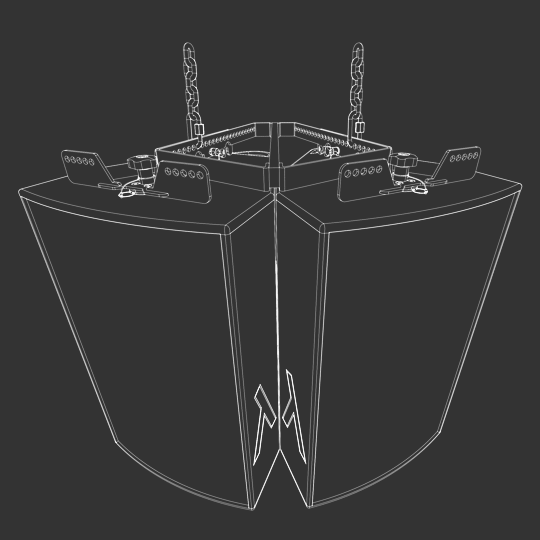

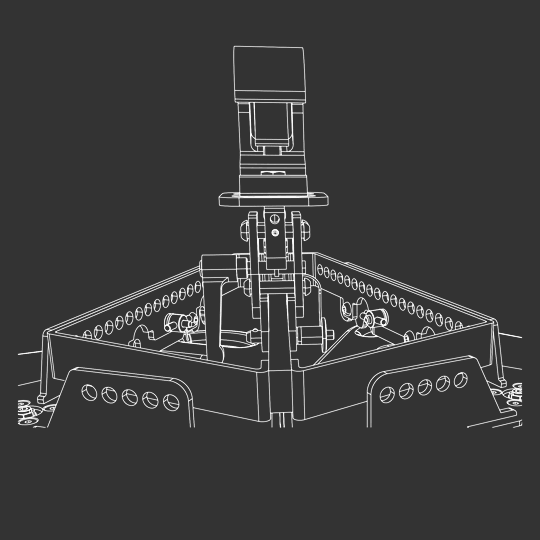

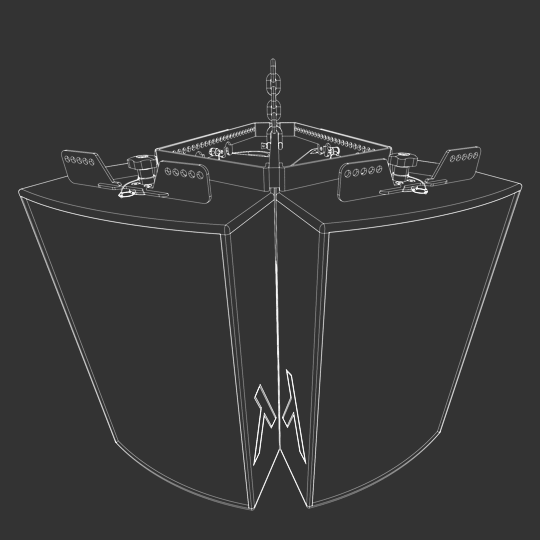

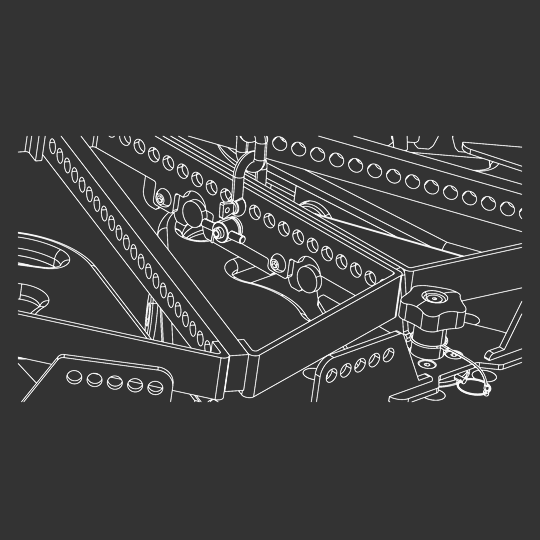

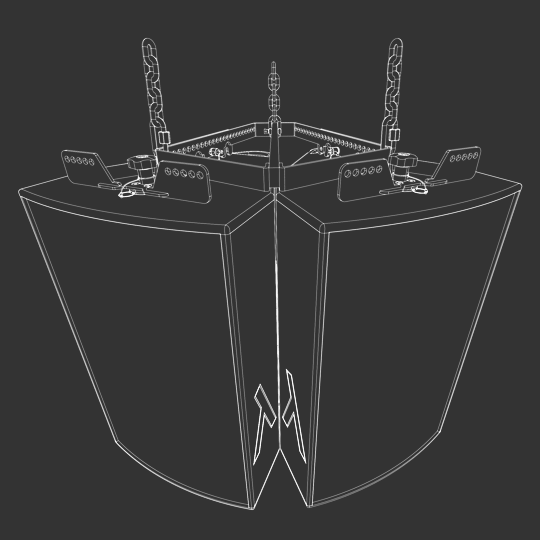

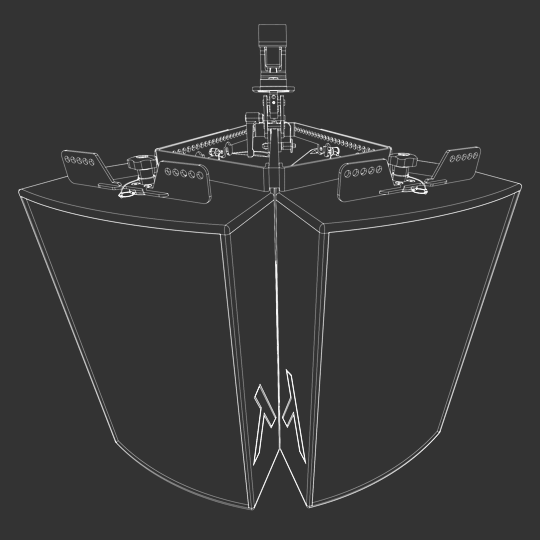

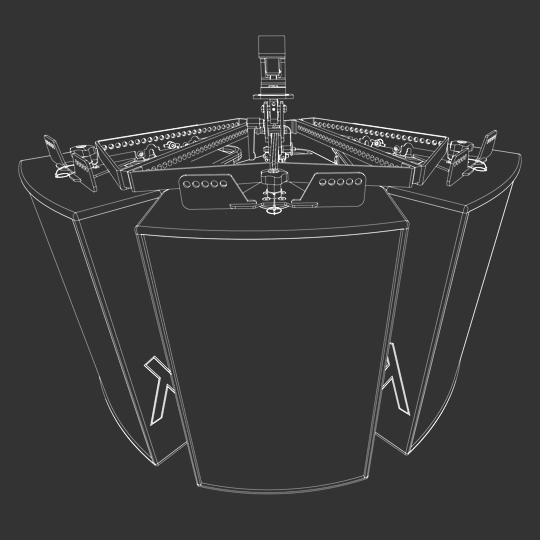

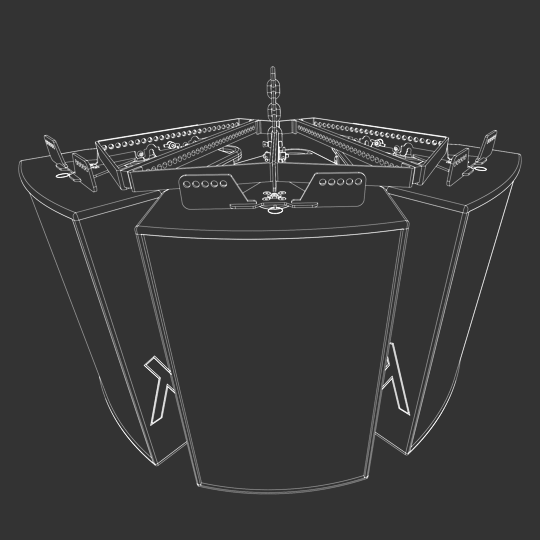

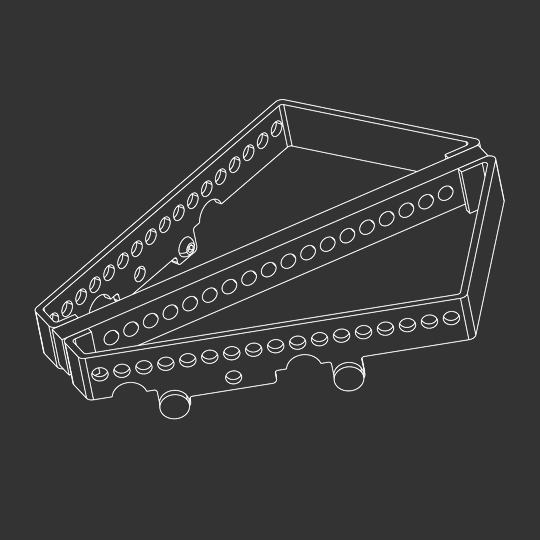

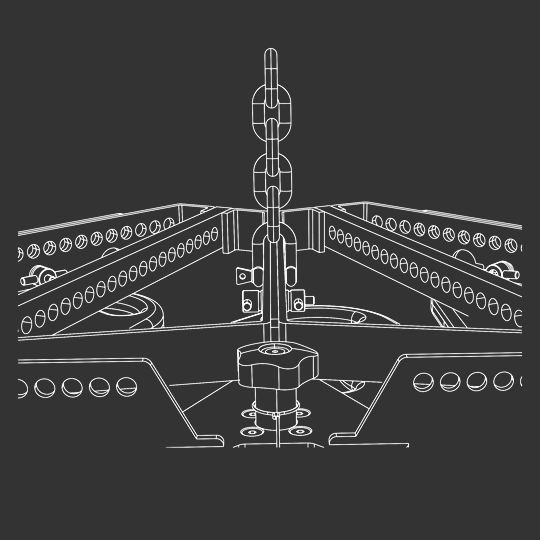

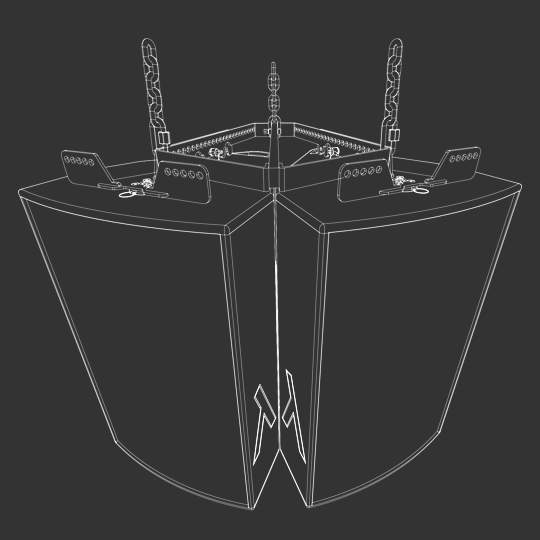

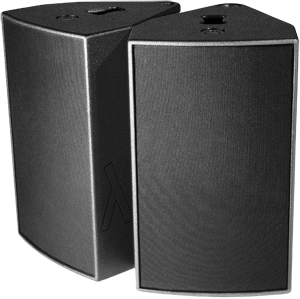

Cluster Bracket for TX-3

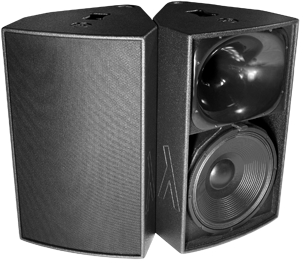

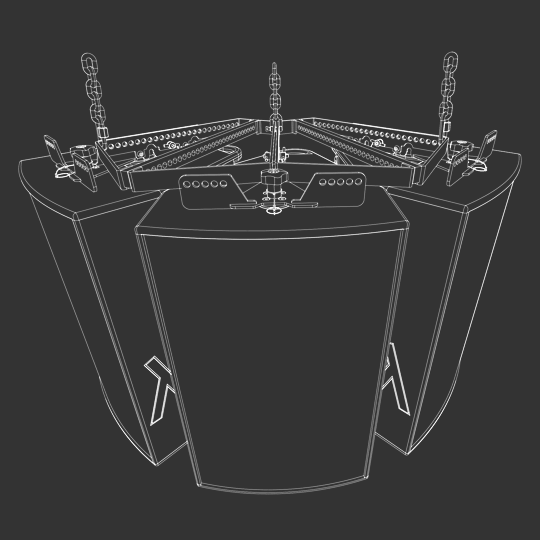

The cluster bracket allows for up to three TX-3 loudspeakers to be merged into a speaker cluster quickly and easily. Once inserted at the cluster bracket’s fixed admission points the T-Bracket is locked and secured with the Combi Cluster Pin in a matter of seconds. The Combi Cluster Pin is equally suited for all cluster options. Depending on cluster size 2 or 3 Combi Cluster Pins may be required. The cluster compound can be either rigged to one/several suspension points or to the rotatable and lockable Vari Clamp.

The Cluster bracket for TX-3 combines with the following rigging options:

Combi Cluster Pin / Combi Pin
Screw carabiner for T-Bracket and Cluster compound
D-Shackle Cluster compound
Vari Clamp

Measurements: 49 x 42.5 x 5.3 cm
Weight: 3.3 kg
Material: Steel with high quality rustproof coating
Colour: Black

Combi Cluster Pin / Combi Pin

The Combi Cluster Pin provides zero-play joining between the T-Bracket and the Cluster bracket in a Cluster compound. Construction of the Combination Cluster Pin is identical to the Combination Pin, including however an additional self-locking counter nut in its delivery. The Combination Cluster Pin fits all cluster options equally. Depending on cluster size, 2 or 3 Combination Cluster Pins are required.

The Combi Pin provides quick and easy connection of all wheelboard options. Optional use allows for simple plugging or additional fastening for vibration-free attachment of the wheelboard. Delivery of the wheelboard includes 2 combination pins in loss-free connection.

Diameter: 8/10mm
Material: Stainless Steel
Colour: Black

Vari Clamp

The Vari Clamp is designed for the suspension of individual loudspeakers of the TX- and CX series onto the T-Bracket or of entire speaker clusters in the TX-series at the balance point. The Vari Clamp’s jaws are infinitely adjustable, allowing for equal combination with either T-Brackets and/or cluster brackets in all rigging varieties. Besides adding tight stabilization of the loudspeakers against force effects (for example wind).

The Vari Clamp can be combined with the following rigging options:

T-Bracket – Mobile (M) Version
T-Bracket – Installation (I) Version
Cluster Bracket for TX-3
M12 Quick Clamp 38/51
Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area

Measurements: 12.5 x 8 x 8 cm (Quick Clamp not included)
Capacity (WLL): 250 Kg
Weight: 0.8 kg
Material: Steel with high quality rustproof coating
Colour: Black

10" Ball Lock Pin

Ball Lock Pin for Vari Clamp

Diameter: 10 mm
Capacity (WLL): 940 kg
Material: Stainless steel,
Colour: Black/Blank

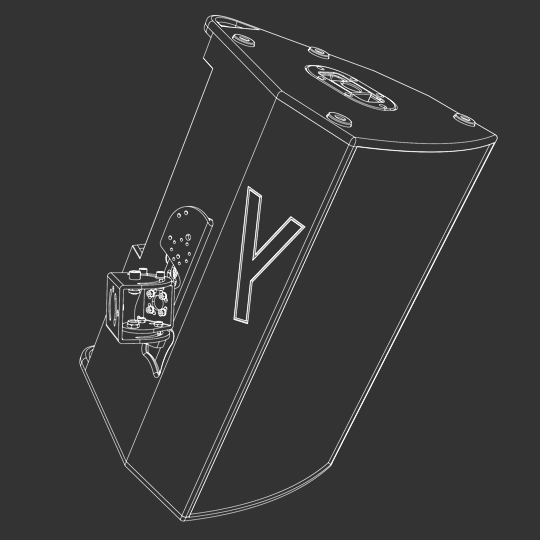

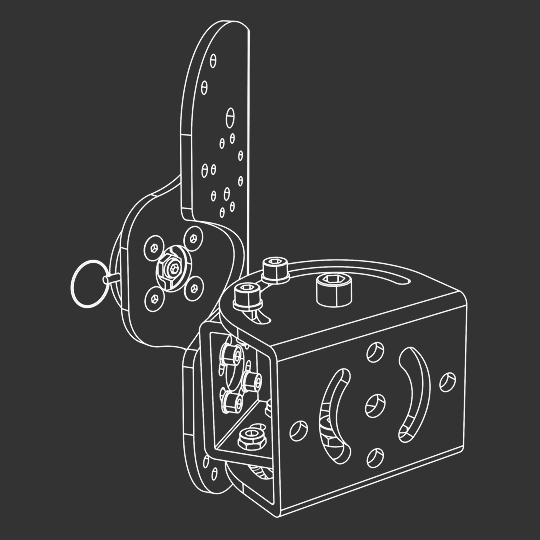

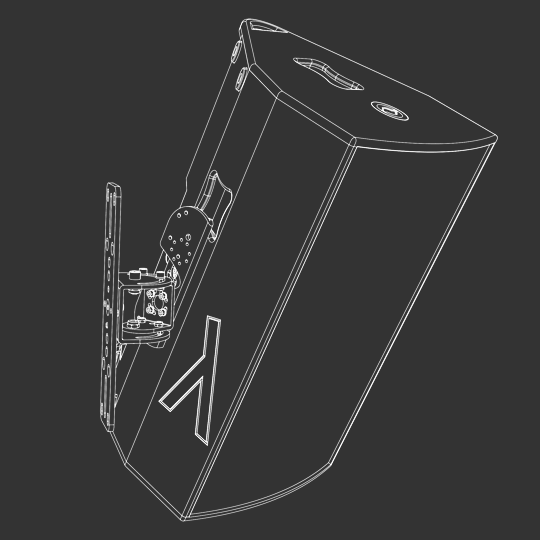

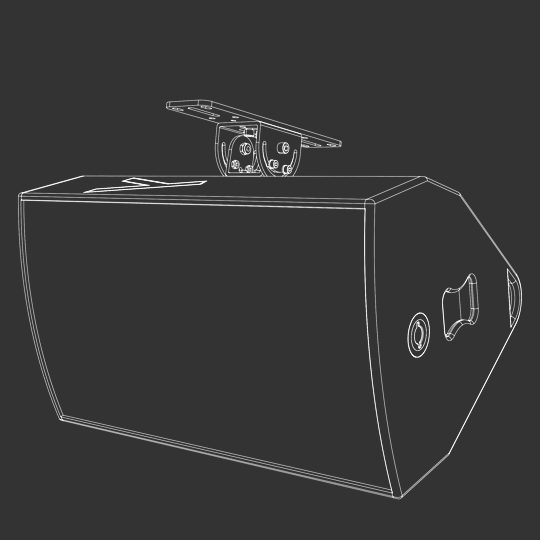

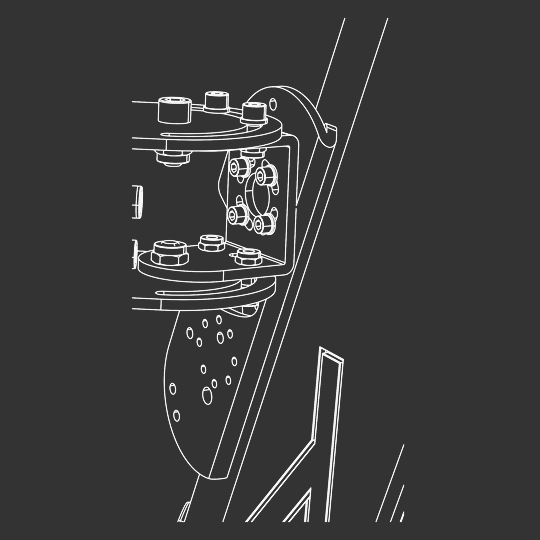

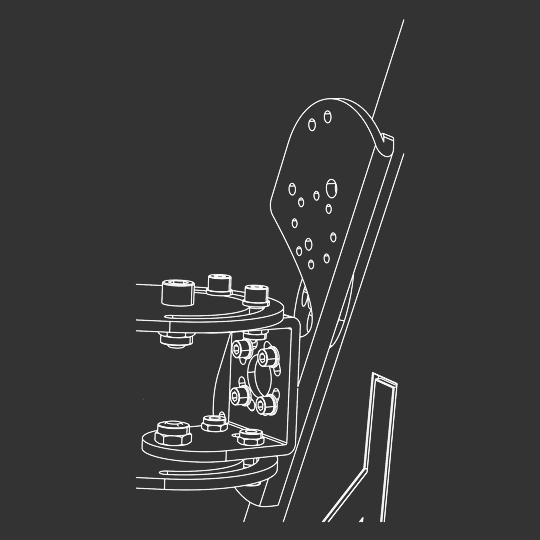

I-Bracket ‘S’

The I-Bracket is designed for simple and versatile suspension of a TX- or CX loudspeaker in the installation area. Depending on the type of loudspeaker and construction position, the speaker can be rigged either vertically/horizontally as well as inclinable, rotatable and even pivotable, or is attachable to walls or trussing constructions. In combination with the speaker’s Express Pin System the I-Bracket can be attached quickly and safely.

The I-Bracket ‘S’ can be combined to the following rigging options:

Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area

Measurements: 12 x 12 x 12 cm
Weight: 1.9 kg
Material: Steel with high quality rustproof coating
Colour: Black

I-Bügel ‘L’

The I-Bracket ‘L’ allows negotiating even extreme speaker angulations. The I-Bracket is designed for simple and versatile suspension of a TX- or CX-loudspeaker in the installation area. Depending on the type of loudspeaker and construction position, the speaker can be rigged either vertically/horizontally as well as inclinable, rotatable and even pivotable, or is attachable to walls or trussing constructions. In combination with the speaker’s Express Pin System the I-Bracket can be attached quickly and safely.

The I-Bracket ‘L’ can be combined to the following rigging options:

Ceiling/Truss Adaptor for positioning in the truss centre or ceiling installation with extended attachment area

Measurements: 18 x 12 x 12 cm
Weight: 2.6 kg
Material: Steel with high qualitiy rustproof coating
Colour: Black

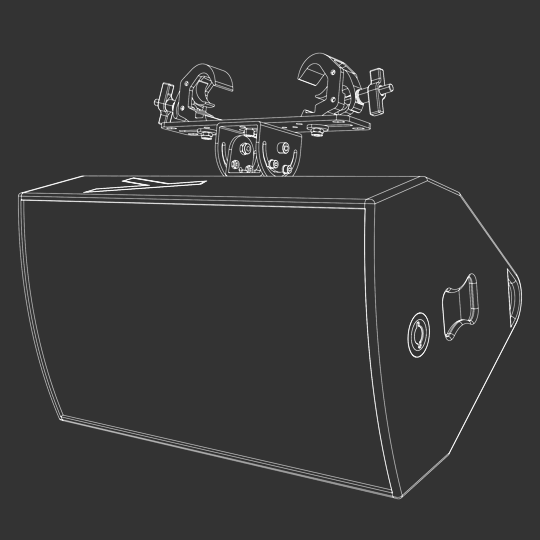

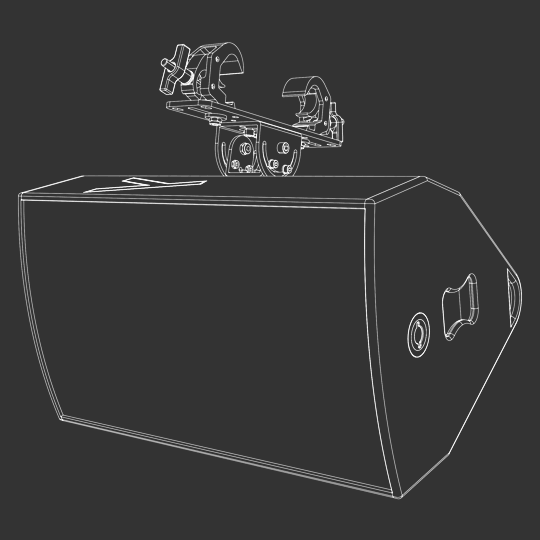

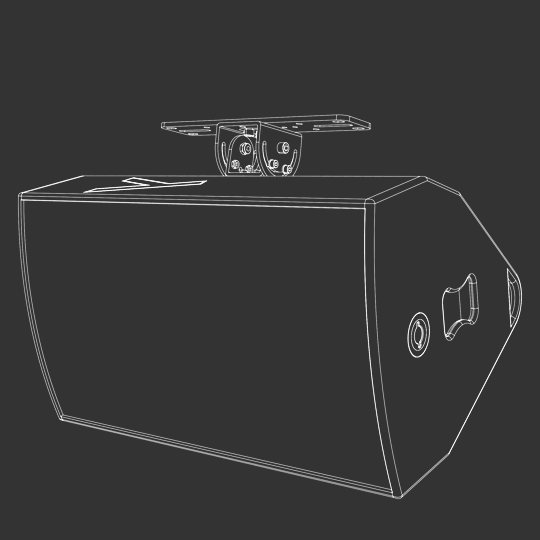

Ceiling/Truss adaptor

Combined with the rigging options of the TX and CX series, the Ceiling/Truss adaptor allows for either positioning in the truss centre or defined as well as extended ceiling attachment, if weight distribution on the truss or ceiling structure require it. The M12 Quick Clamps are adjustable to make the adaptor fit to all standard truss types. M8 Eye Bolts can be requested separately.

The Ceiling/Truss adaptor can be combined with the following rigging options:

Halfbracket (M) for TX and CX series
Halfbracket (I) for TX and CX series
Vari Clamp
I-Bracket ‘S’
I-Bracket ‘L’
M12 Quick Clamp 38/51

Measurements: 40 x 9 x 0.8 cm
Weightt: 2.0 kg
Material: Steel with high quality rustproof coating
Colour: Black

M12 Quick Clamp 38/51

Quick Clamp with M12 Screw admission for pipes of 38 to 51mm diameter.

The M12 Quick Clamp 38/51 can be combined with the following rigging options:

Halfbracket (M) for TX and CX series
Halfbracket (I) for TX and CX series
Vari Clamp
Ceiling/Truss Adaptor

Measurements: 11 x 8.5 x 5 cm
Weight: 0.8 Kg
Capacity (WLL): 250 kg
Material: Duraluminium
Colour: Black

Eye Bolt M10

The M10 Eye Bolt, in combination with the 6mm Safety Rope, provides security for the loudspeakers of the TX- and CX series in accordance with BGV C1. The Eye Bolt is screwed into the appropriate thread to secure the speaker against unexpected falls.

Type: similar to DIN 580, high-strength, forged
Winding: M10
Capacity(WLL): 400 kg
Material: Stainless Steel
Colour: Black

Safety Rope 6mm

The Safety Rope, in combination with the M10 Eye Bolt and the 8mm Screw carabiner, provides security for all loudspeakers of the TX- and CX series in accordance with BGV C1 up to 35kg.

Length: 1m
Strength: 6mm
Material: Stainless steel
Colour: Black

Safety Rope 10mm

Safety Rope for loudspeaker clusters in the TX series with single spot suspension in accordance with BGV C1 not exceeding 100 Kg.

Length: 1m
Strength: 10mm
Material: Stainless Steel (black)
Colour: Black

Screw Carabiner 8mm

The high-strength carabiner is necessary for the suspension of individual or several loudspeakers as a link between the rigging options T-Bracket and TX-Clusterbracket with locking chains or between M10 Eye Bolt and 6mm Safety Rope.

Type: similar to DIN 56926, high-strength, forged
Diameter: 8mm
Capacity (WLL): 560 kg
Material: Stainless steel
Colour: Black

D-Shackle ‘M’ for Clusterbracket TX-3

The shackle is required in the junction of cluster bracket and chain for the purpose of suspension and angulation of a rigged loudspeaker cluster.

Type: similar to DIN 82101, high strength, forged
Diameter: 10 mm
Capacity: (WLL): 960 kg
Material: Stainless Steel
Colour: Black

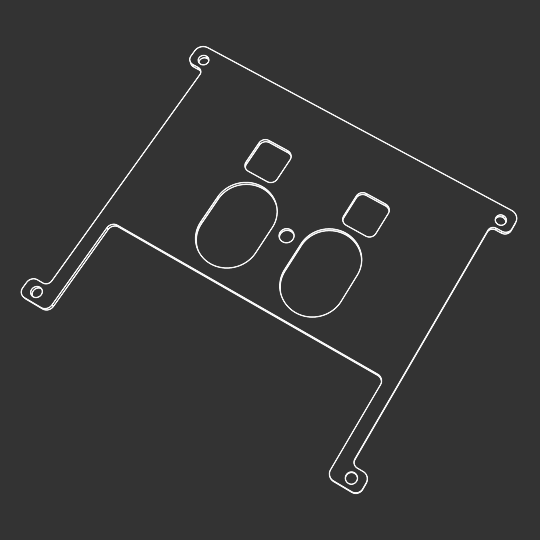

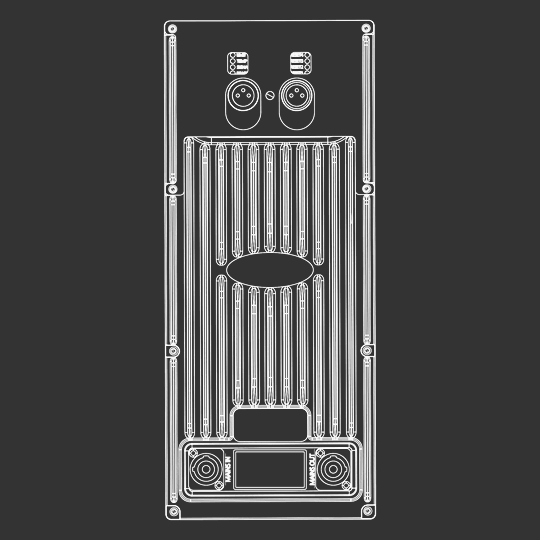

Module Cover ‘L’

The cover plate ‘L’ can be screwed onto the active module’s control panel to prevent unwanted interference. A change in set up for instance necessitates an auxiliary.

Measurements: 13 x 15.5 x 0.2 cm
Weight: 0.15 kg
Material: Steel, powder coated
Colour: Black

Distance rod with plastic splints

Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate.

Weight: 2.5 kg
Height: 900–1380 mm
Max. load capacity: 35 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Distance rod with hand crank and plastic splints

Moveable plastic splints separate the speaker from the stand creating for a vibration-free connection. Easy ring lock mechanism. The bottom end of the distance rod is equipped with a M20 threaded bolt for a connector plate. The comfortable hand crank facilitates an easy and secure height adjustment.

Weight: 3.8 kg
Height: 920 to 1.520 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Speaker stand with plastic splints

The moveable plastic splints create a vibration-free connection between loudspeaker and stand. Easy ring lock mechanism. Height adjustment using a non-scratching locking screw and additional safety pin for a secure hold.

Weight: 5 kg
Height: 1.370 to 2.100 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm

Speaker stand with plastic splint adapter

The plastic splint adapter creates a vibration-free connection between loudspeaker and stand. Easy ring lock mechanism. The comfortable hand crank facilitates an easy and secure height adjustment.

Weight: 9.3 kg
Height: 1.530 to 2.350 mm
Max. load capacity: 50 kg
Colour: Black
Flange mounting: ø 35 to 37 mm
